Home >> Subaru >> 2001 >> Outback Base, Standard >> Repair and Diagnosis >> Transmission >> Clutch System >> Master Cylinder >> Assembly

Master Cylinder: Assembly

  1. Apply a coat of grease to the contacting surfaces of the push rod and piston before installation.

    Grease:

    1. SILICONE GREASE G40M (Part No. 004404003)

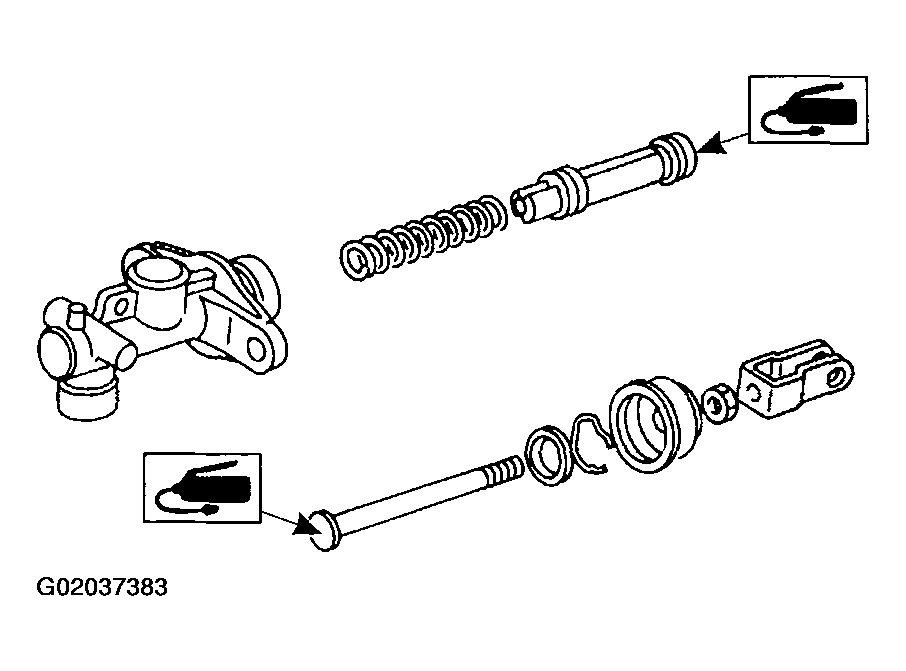

      Fig 1: Identifying Contact Surfaces To Be Greased
      G02037383
  2. To assemble the master cylinder reverse the sequence of disassembly procedure.
