Operating Cylinder: Removal

  1. Remove air cleaner case and air intake duct.
  2. Remove clutch hose from operating cylinder.
    CAUTION: Cover hose joint to prevent clutch fluid from flowing out.

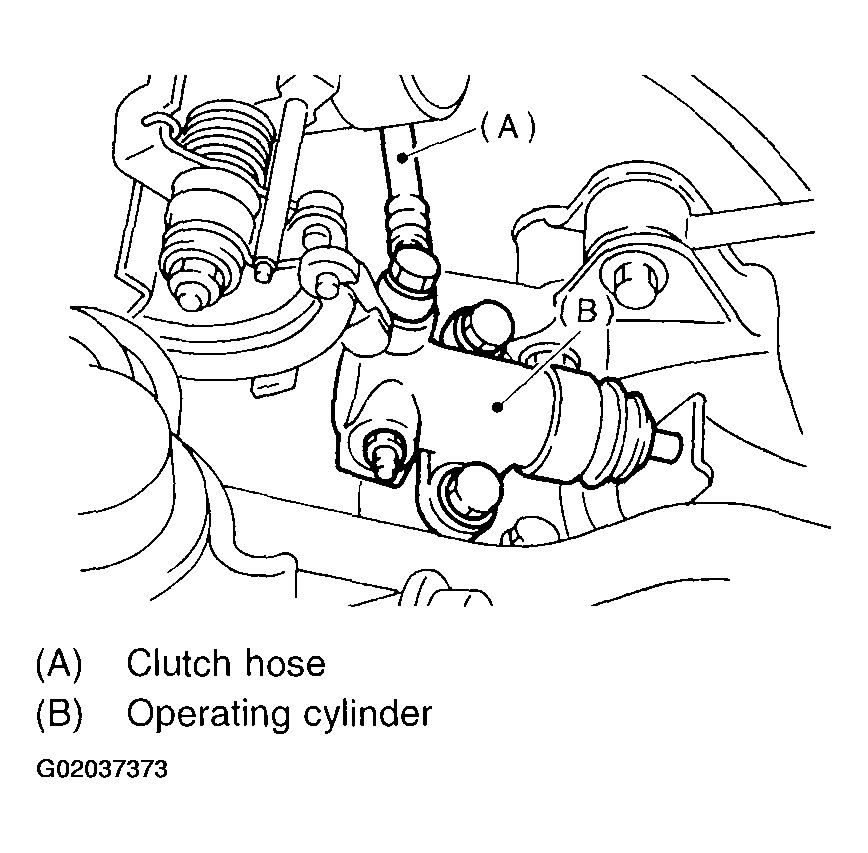

    Fig 1: Removing Clutch Hose From Operating Cylinder
    G02037373
  3. Remove operating cylinder from transmission.

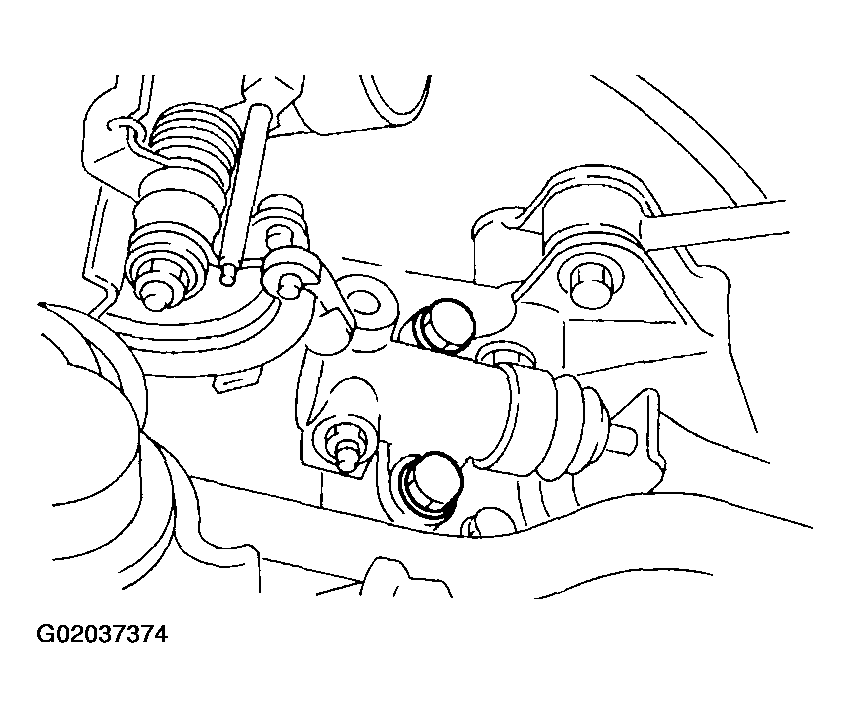

    Fig 2: Removing Operating Cylinder
    G02037374
