Drive Pinion Assembly
Drive Pinion Assembly
Tightening torque: N.m (kgf-m, ft-lb)
T1:
29 (3, 21.7)
T2:
118 (12, 86.8)
T3:
265 (27, 195)

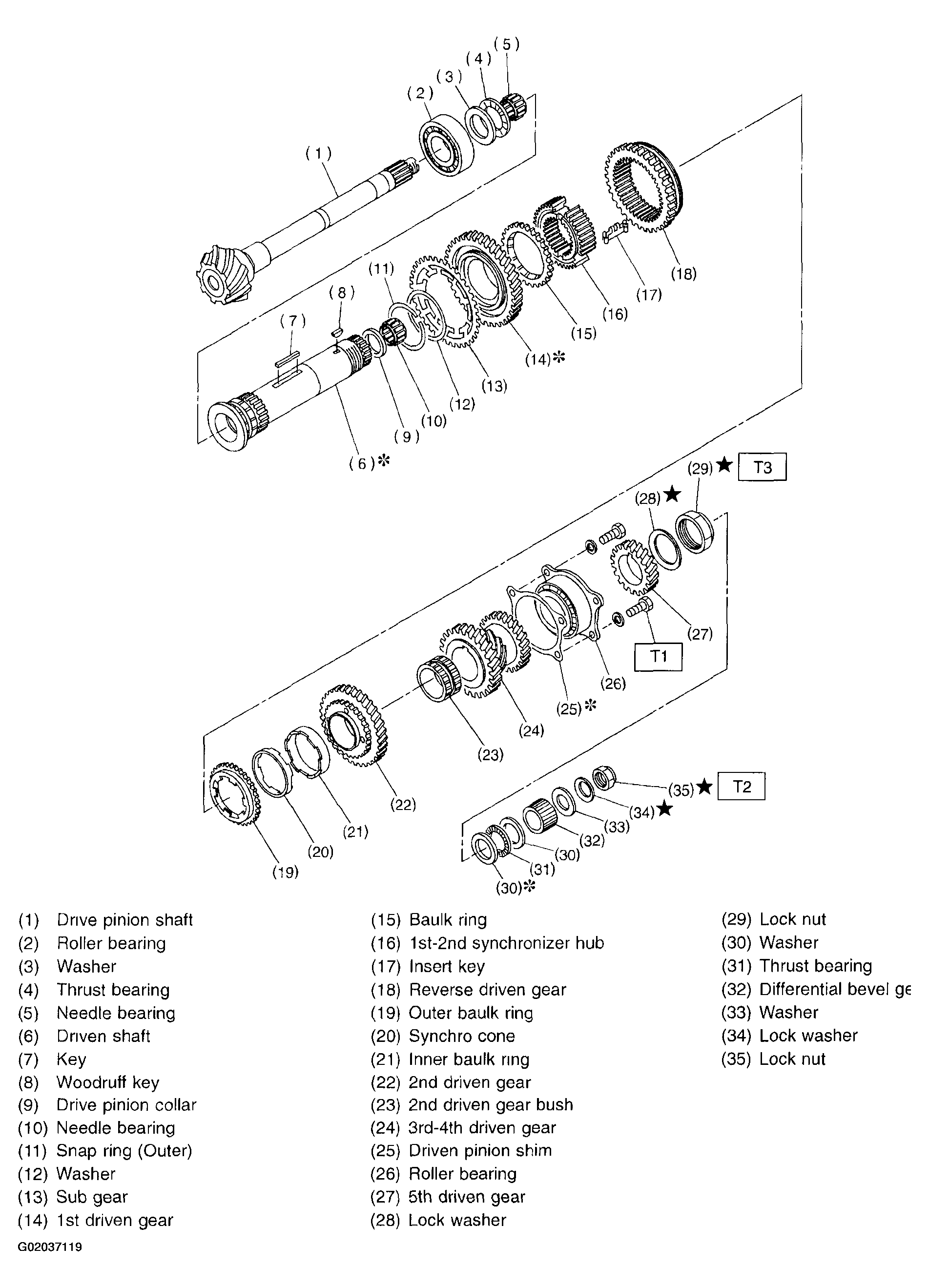

Fig 1: Drive Pinion Assembly Overview
