Transfer Case And Extension

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  6.4 (0.65, 4.7)
2. T2:  8.8 (0.9, 6.5)
3. T3:  10 (1, 7.2)
4. T4:  25 (2.5, 18.1)
5. T5:  40 (4.1, 29.7)

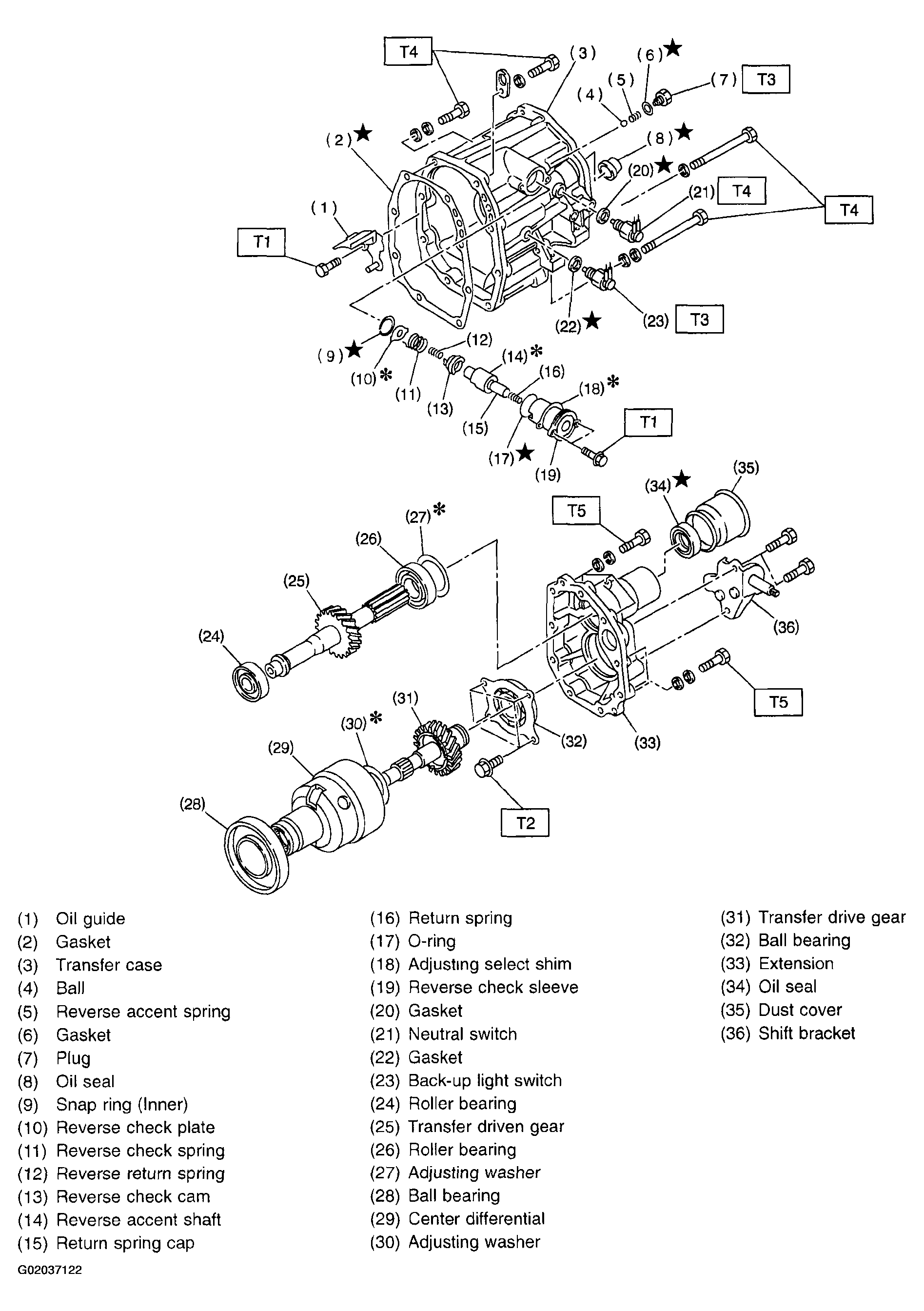

Fig 1: Transfer Case & Extension Assembly Overview
