Transmission Mounting

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  7.5 (0.76, 5.5)
2. T2:  35 (3.6, 26)
3. T3:  50 (5.1, 37)
4. T4:  58 (5.9, 43)
5. T5:  70 (7.1, 51)
6. T6:  75 (7.6, 55)
7. T7:  140 (14.3, 103)

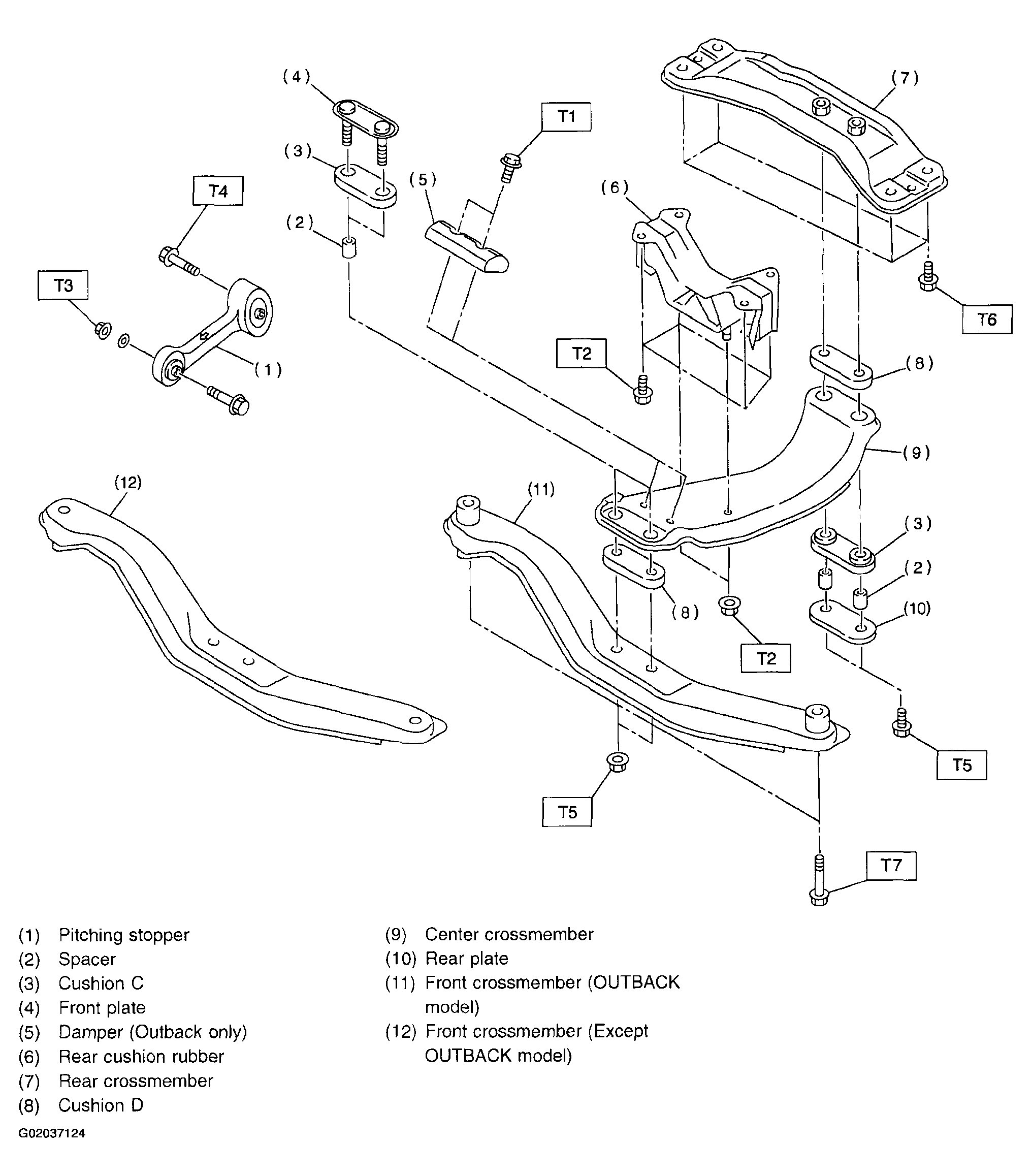

Fig 1: Transmission Mounting Assembly Overview
