Drive Pinion Assembly

Preload adjustment of thrust bearing starting torque

1. 0.3-0.8N-m (0.03-0.08 kg-m, 0.7-0.6 ft-lbs)

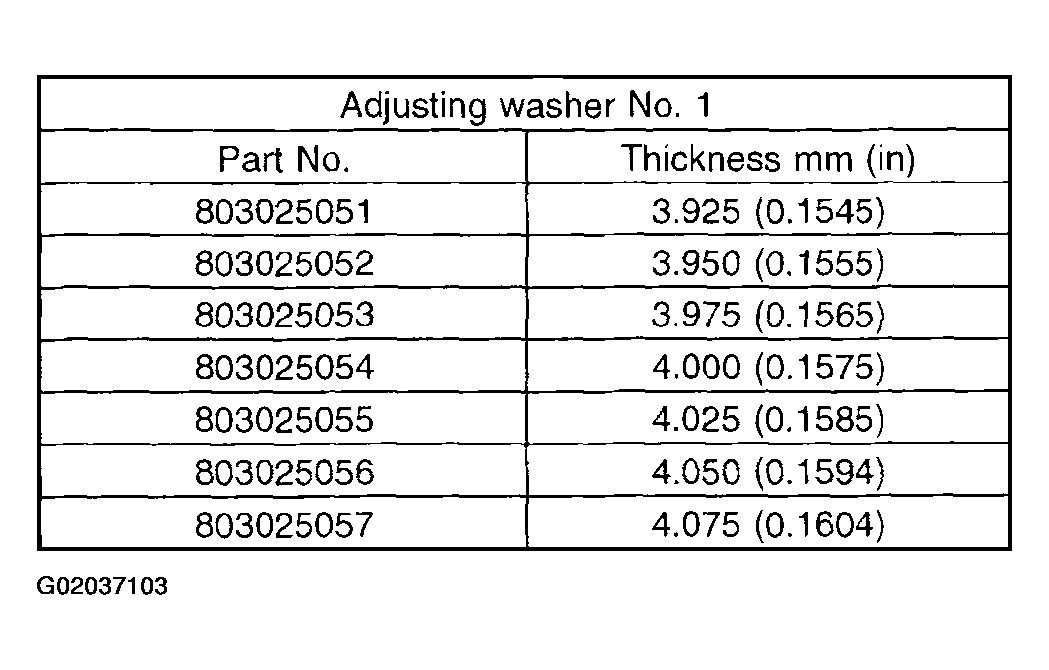

   Fig 1: Adjusting Washer No. 1 Selection Chart

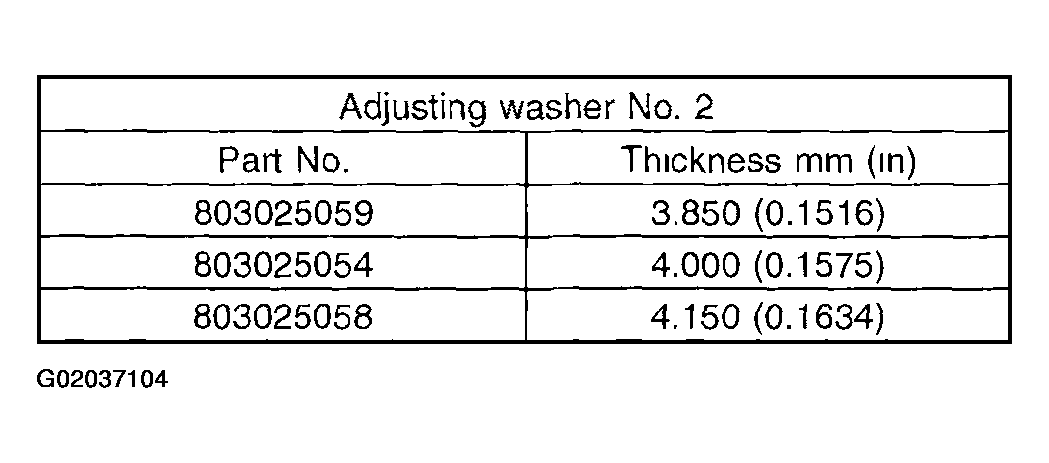

   Fig 2: Adjusting Washer No. 2 Selection Chart
