Transmission Case Assembly

Drive pinion shim adjustment Hypoid gear backlash

1. 0.13 - 0.18 mm (0.0051 - 0.0071 in)

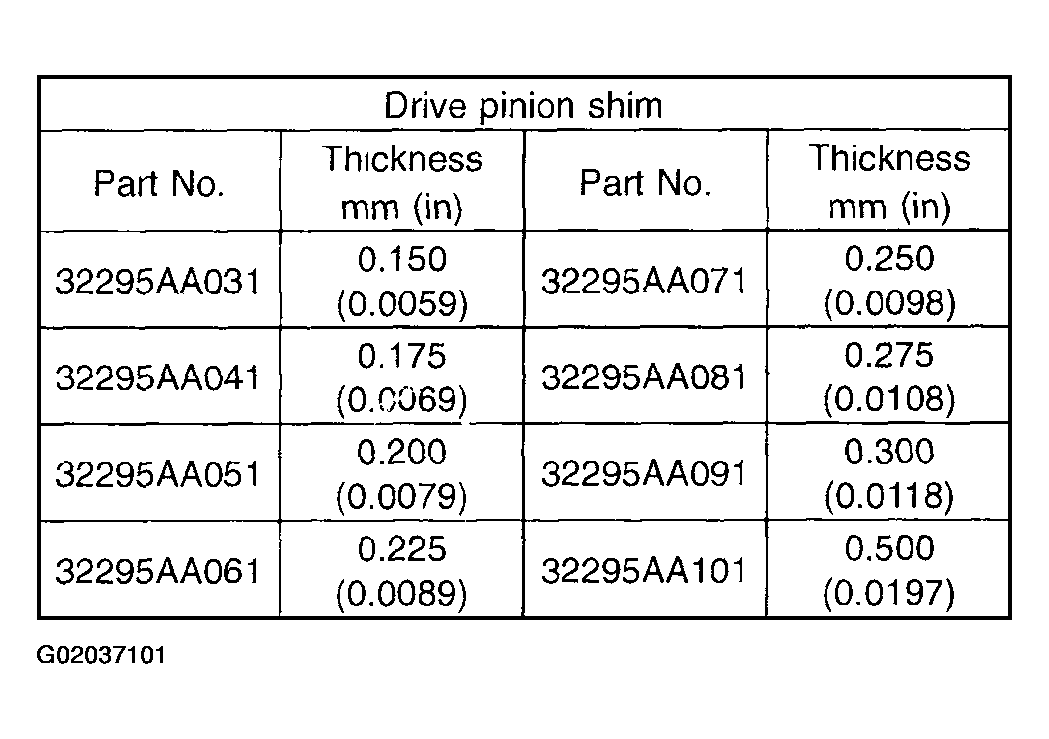

   Fig 1: Drive Pinion Shim Adjustment Chart



Selection of main shaft rear plate

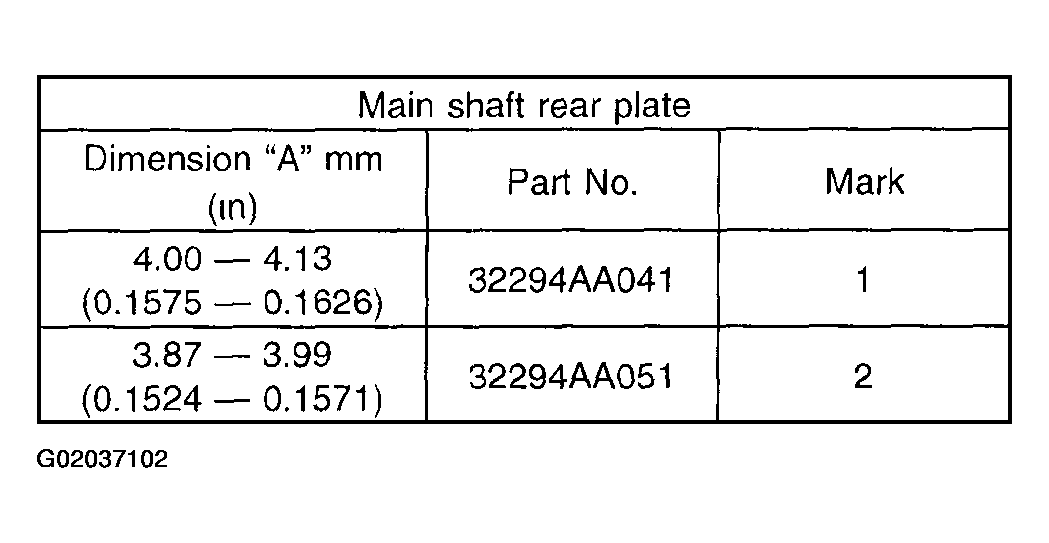

Fig 2: Selecting Main Shaft Rear Plate Chart
