Manual Transmission Assembly: Installation

Tightening torque:

1. 34 N.m (3.5 kgf-m, 25.3 ft-lb)

1. Gradually raise transmission with transmission jack.

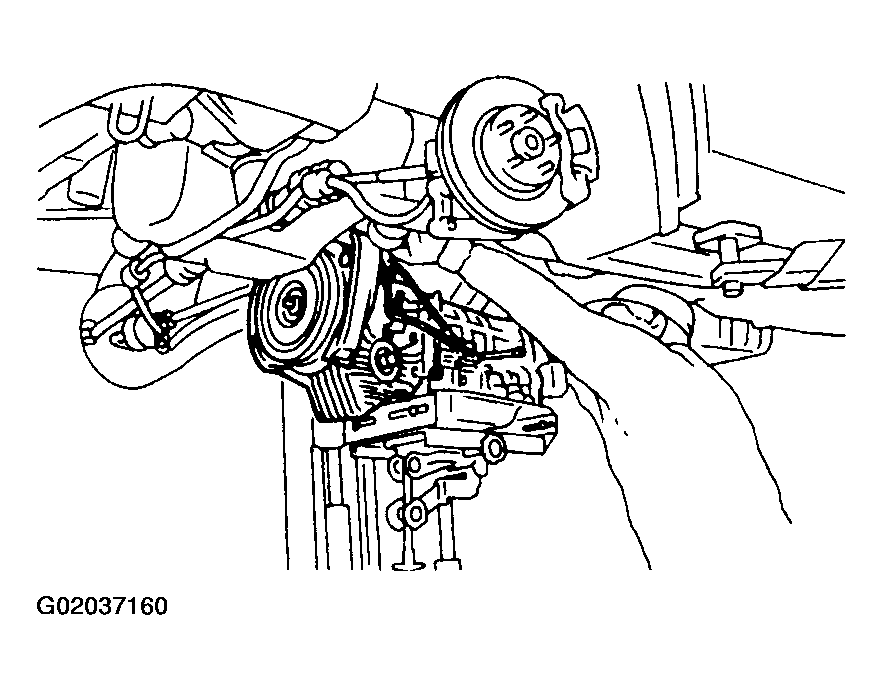

   Fig 1: Installing Transmission


2. Engage them at splines.
   CAUTION: Be careful not to strike main shaft against clutch cover.

Tightening torque:

1. T1:  70 N.m (7.1 kgf-m, 51 ft-lb)
2. T2:  140 N.m (14.3 kgf-m, 103 ft-lb)

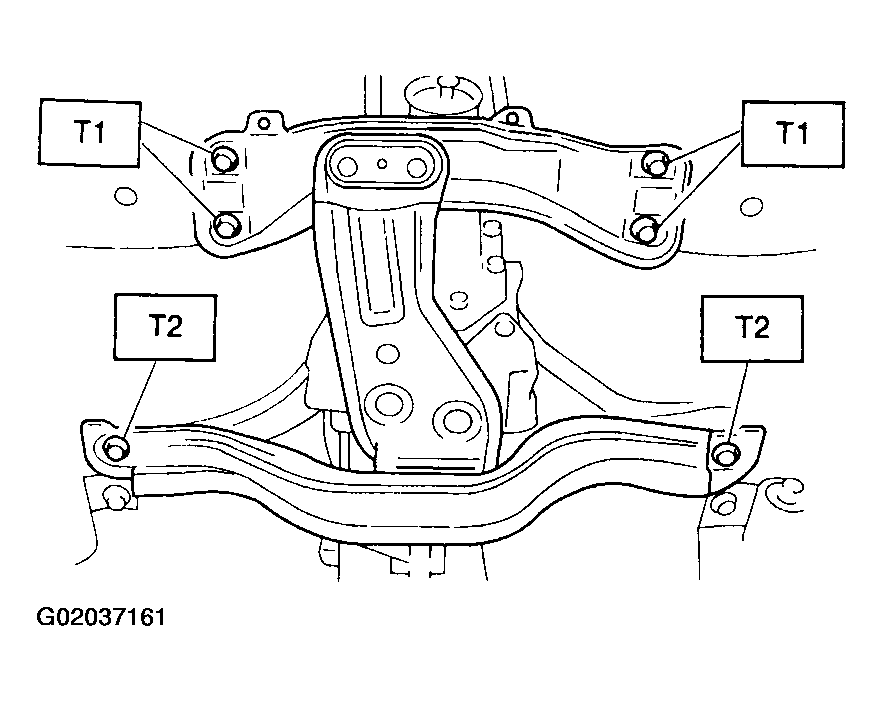

   Fig 2: Installing Transmission Rear Crossmember



Tightening torque:

1. 50 N.m (5.1 kgf-m, 36.9 ft-lb)

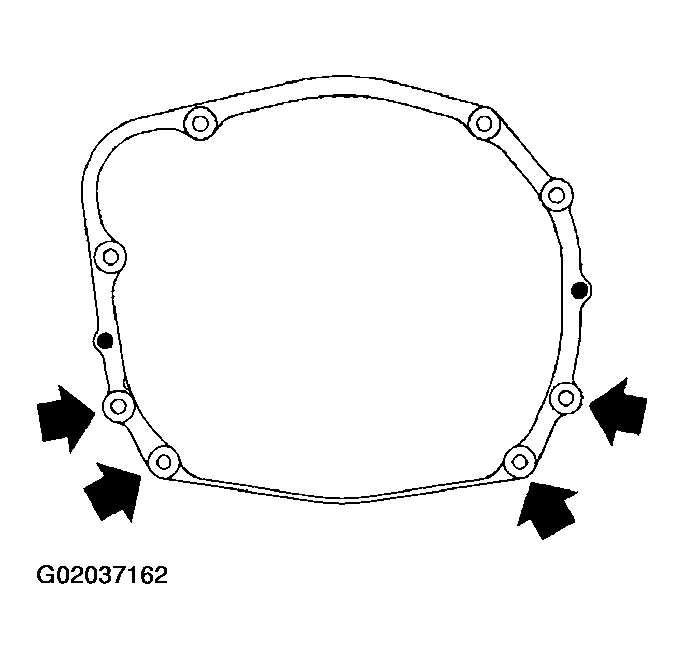

   Fig 3: Tightening Transmission To Engine Nuts



1. Install starter. See REMOVAL & INSTALLATION .
2. Tighten bolt which holds right upper side of transmission to engine.

Tightening torque:

1. 50 N.m (5.1 kgf-m, 36.9 ft-lb)

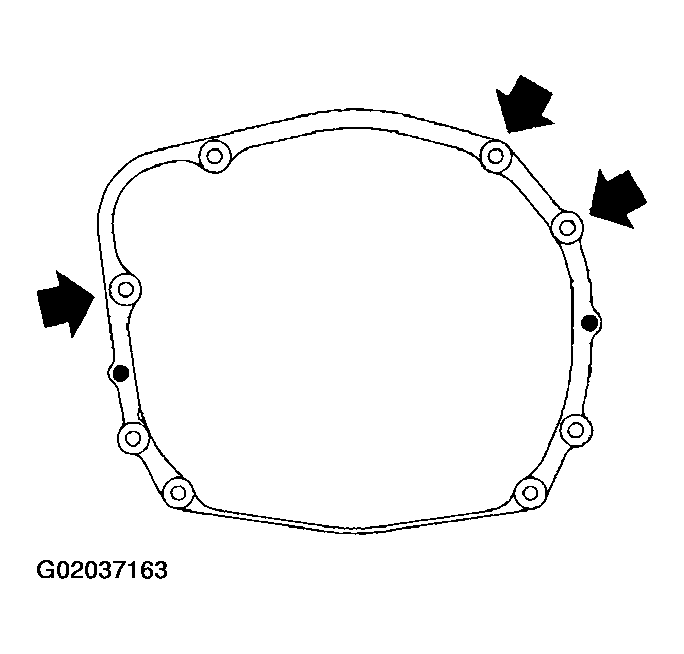

   Fig 4: Tightening Transmission To Engine Nuts



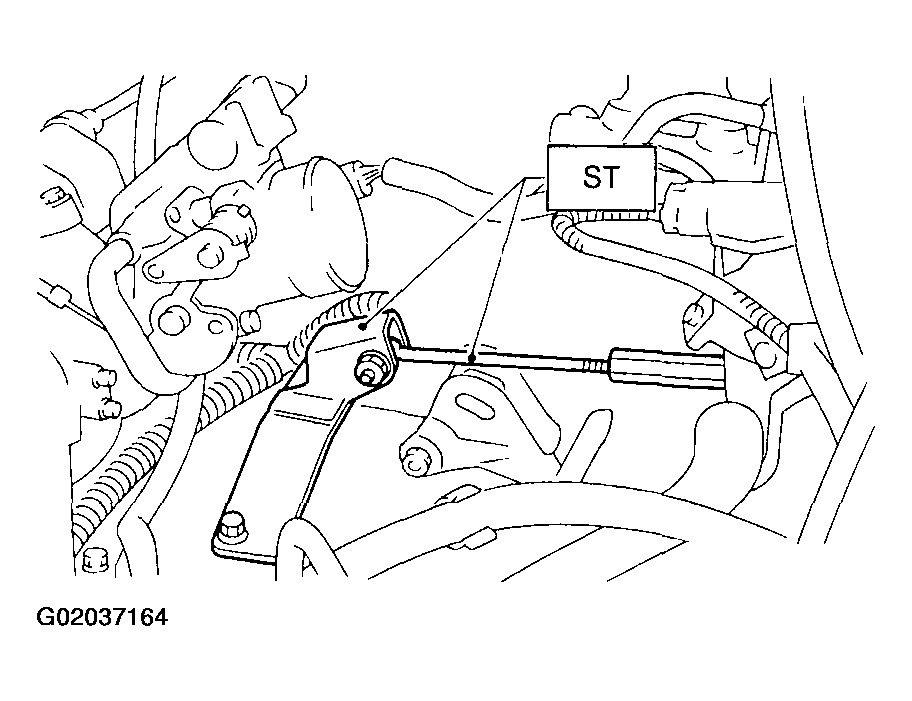

Tightening torque:

1. T1: 50 N.m (5.1 kgf-m, 37 ft-lb)
2. T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

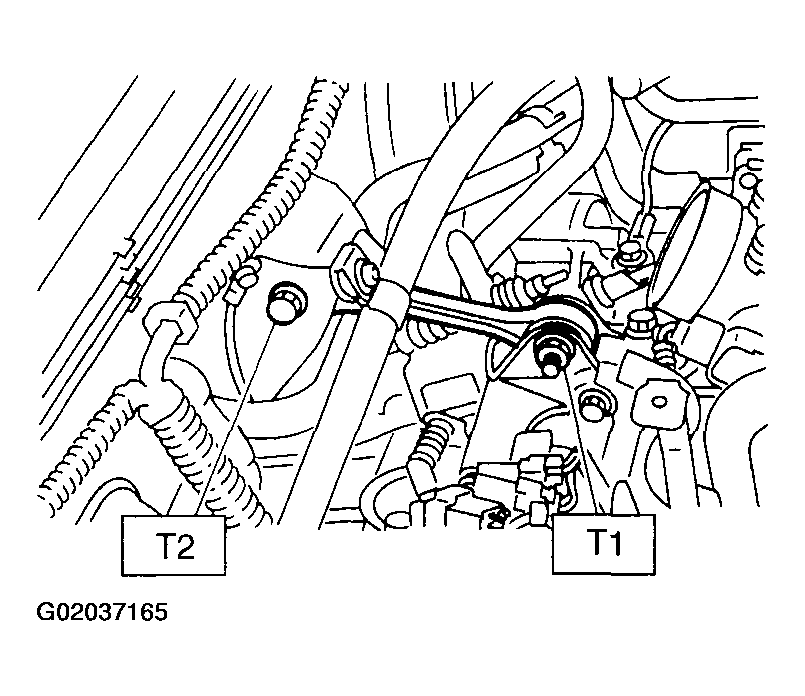

   Fig 6: Installing Pitching Stopper



1. Lift-up the vehicle.
2. Install front drive shaft into transmission.

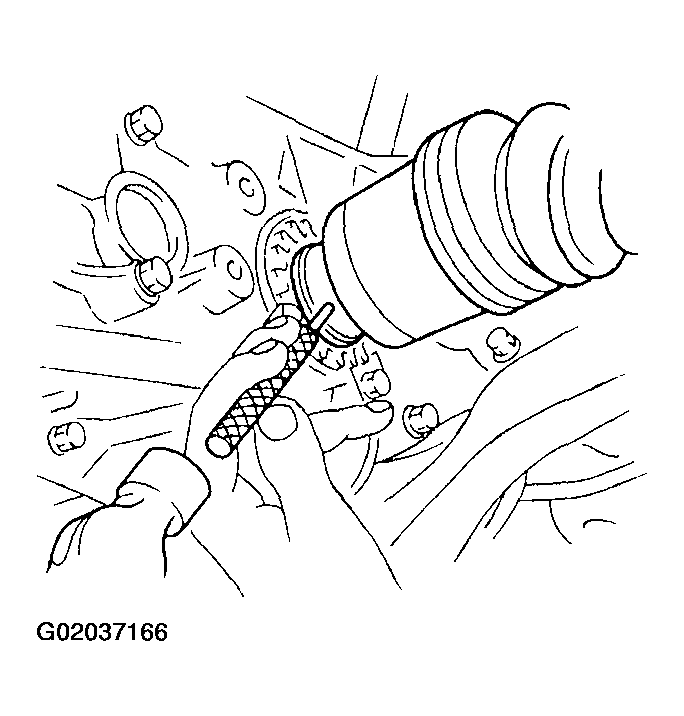

3. Drive spring pin into chamfered hole of drive shaft.
   CAUTION: Always use a new spring pin.
   Fig 7: Installing Front Drive Shaft


4. Install ball joints of lower arm into knuckle arm of housing, and tighten installing bolts.

Tightening torque:

1. 49 N.m (5.0 kgf-m, 36 ft-lb)

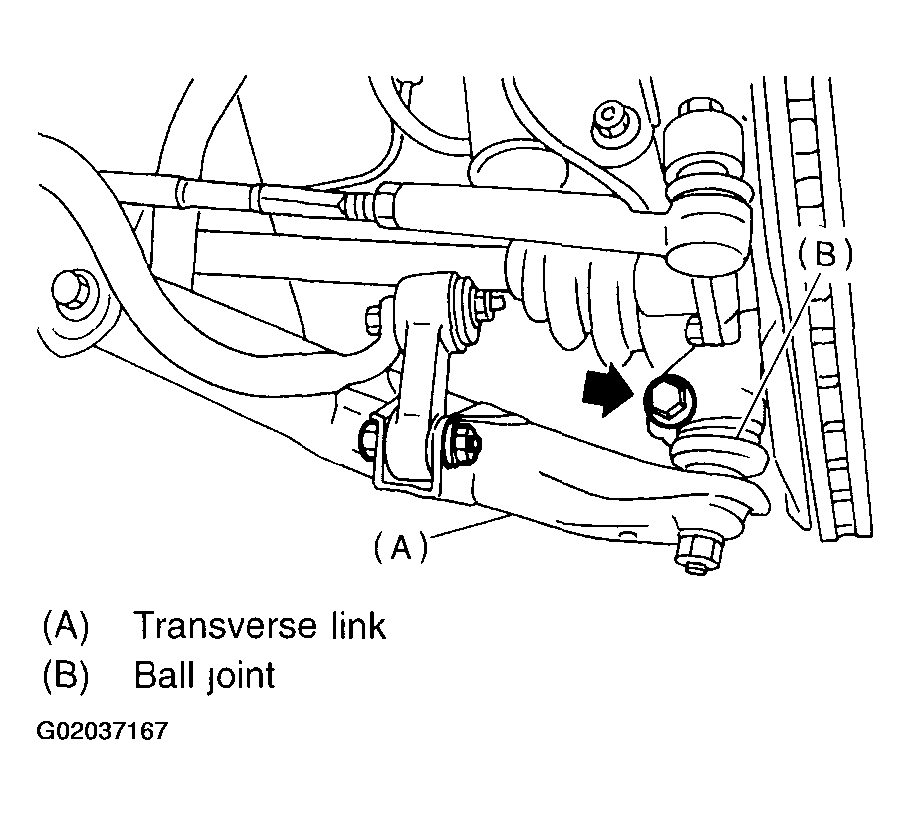

   Fig 8: Installing Ball Joints



Tightening torque:

1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

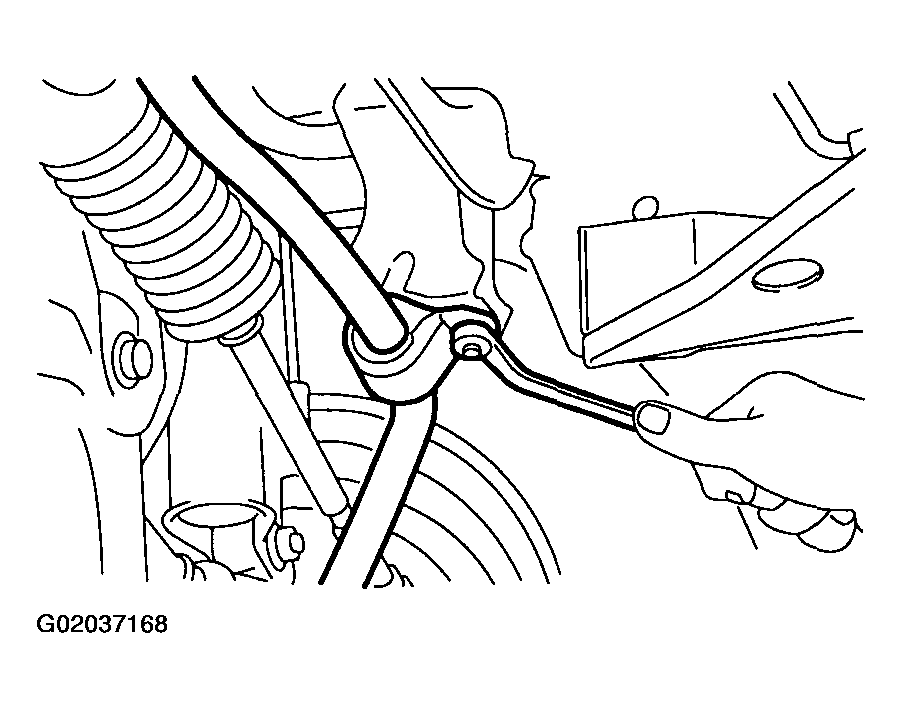

   Fig 9: Installing Stabilizer Clamps Onto Front Crossmember



1. Install gear shift rod onto transmission.

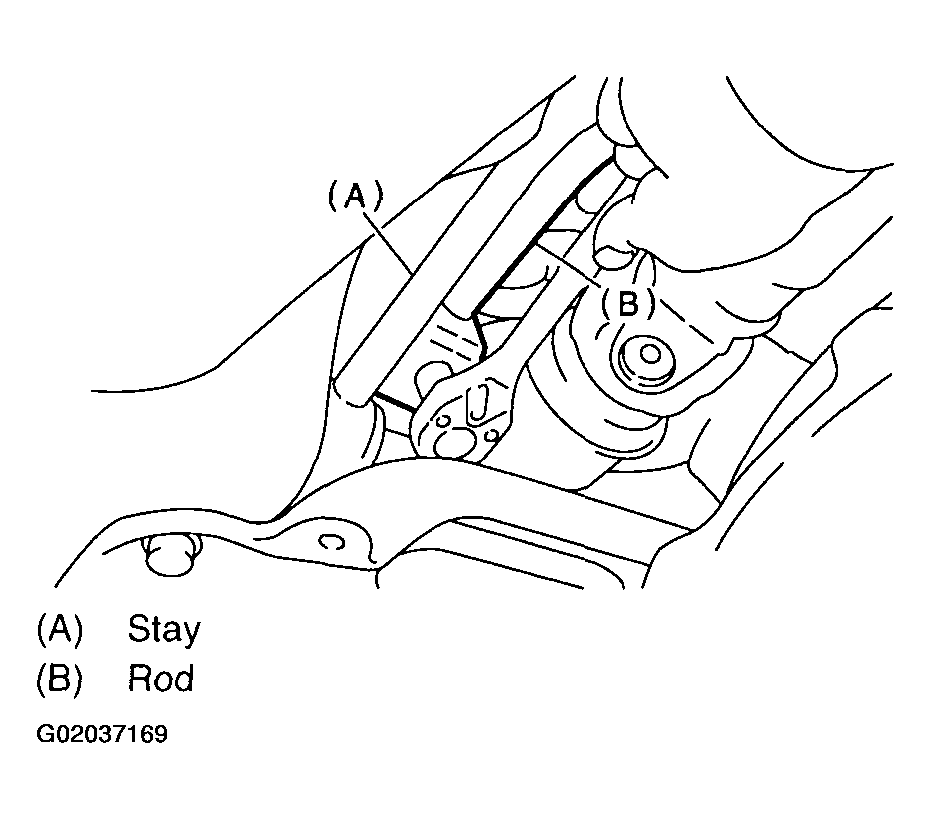

   Fig 10: Installing Gear Shift Rod And Stay


2. Install stay onto transmission.
3. Install spring.

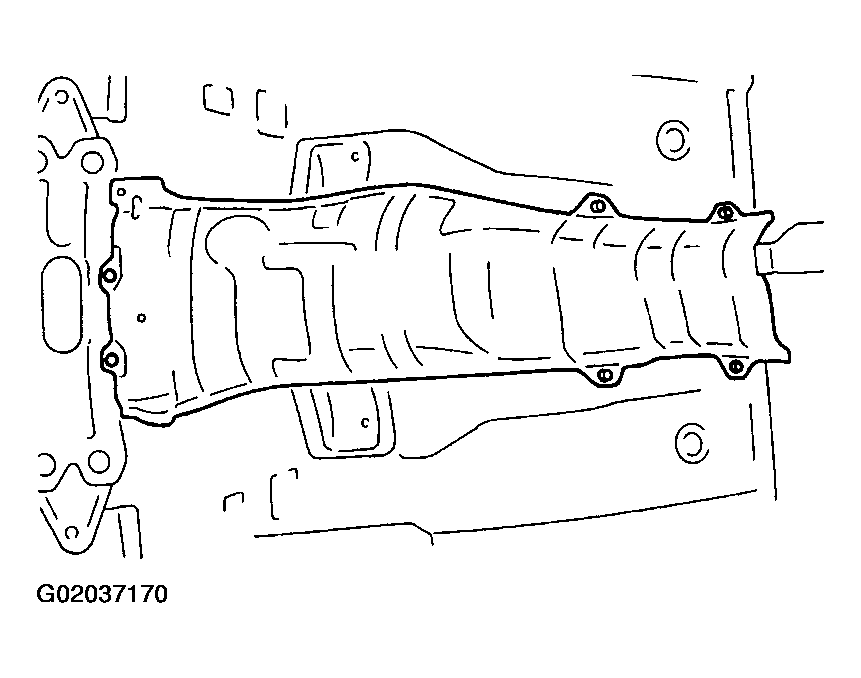

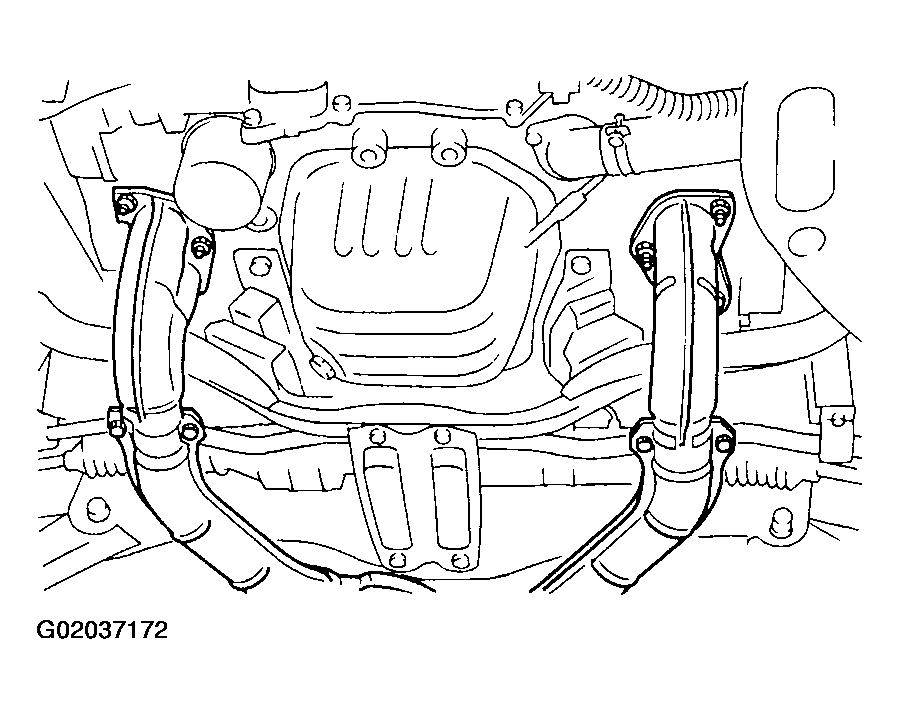

Tightening torque:

1. 37 N.m (3.8 kgf-m, 27.5 ft-lb)

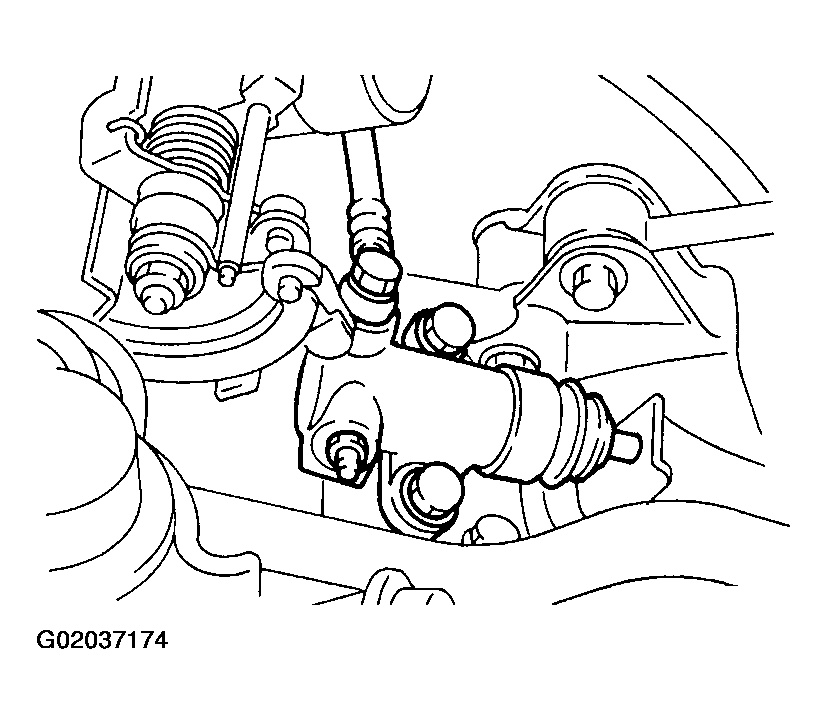

   Fig 15: Installing Operating Cylinder

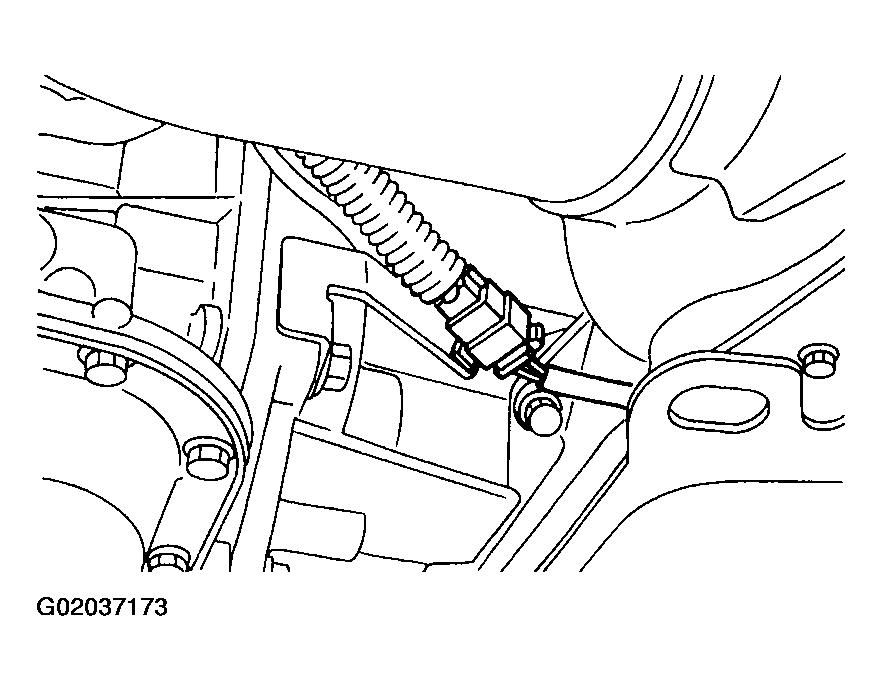

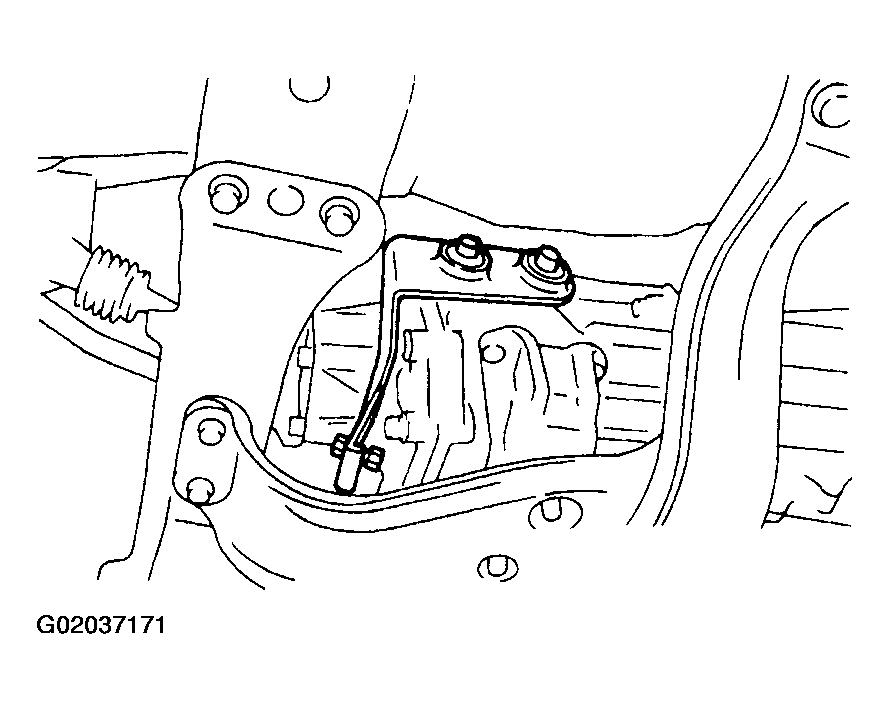

1. Transmission ground terminal

   Tightening torque:

   1. 13 N.m (1.3 kgf-m, 9.4 ft-lb)
2. Oxygen sensor connector
3. Vehicle speed sensor connector
4. Neutral position switch connector
5. Back-up light switch connector

Tightening torque:

1. 16 N.m (1.6 kgf-m, 11.6 ft-lb)
