Speedometer Gear: Removal

  1. Remove the manual transmission assembly from vehicle. See Manual Transmission Assembly  .
  2. Remove back-up light switch and neutral position switch. See Switches and Harness  .
  3. Remove transfer case with extension case assembly. See Transfer Case and Extension Case Assembly  .
  4. Remove transmission case. See Transmission Case  .
  5. Remove vehicle speed sensor. See Vehicle Speed Sensor  .
  6. Remove outer snap ring and pull out speedometer driven gear. Next, remove vehicle speed sensor, oil seal, speedometer shaft and washer.

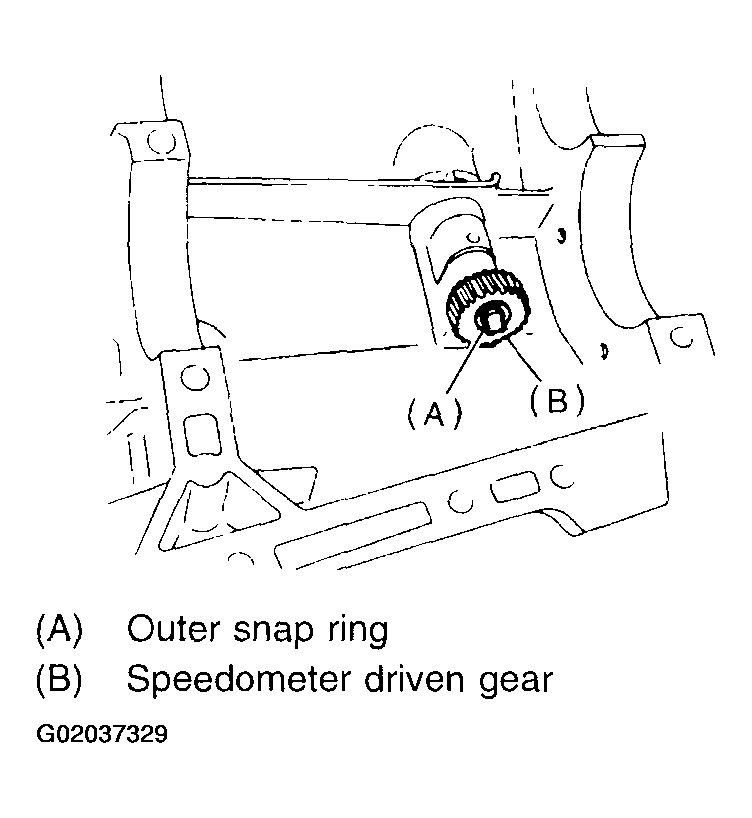

    Fig 1: Removing Outer Snap Ring & Speedometer Driven Gear
    G02037329
