Home >> Subaru >> 2001 >> Outback Base, Standard >> Repair and Diagnosis >> Transmission >> Manual Transmission >> Transfer Case and Extension Case Assembly >> Assembly >> Transfer Case

Transfer Case

  1. Install oil guide to transfer case.

    Tightening torque:

    1. 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

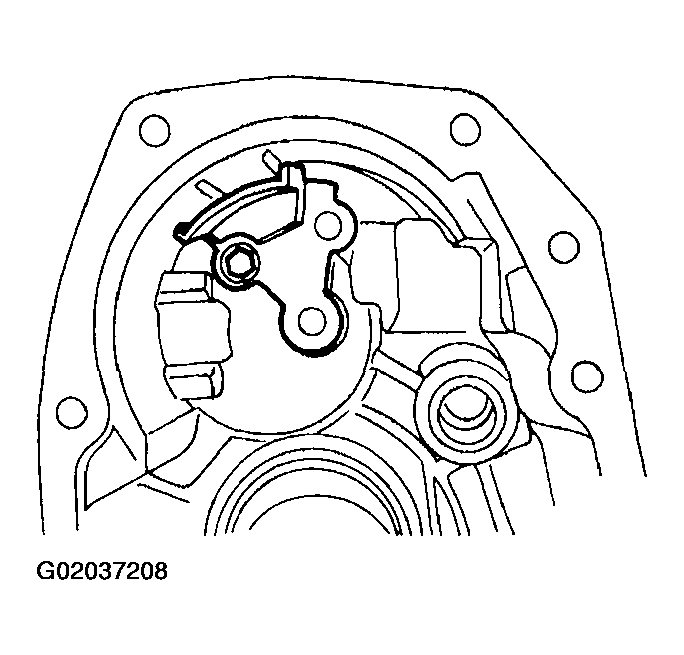

      Fig 1: Installing Oil Guide
      G02037208
  2. Install reverse check sleeve assembly to transfer case. See INSTALLATION  .
