Transfer Drive Gear: Assembly

Install ball bearing.
CAUTION: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

Fig 1: Installing Ball Bearing
Install snap ring on transfer drive shaft.
Measure clearance between snap ring and inner race of ball bearing with a thickness gauge.
Clearance:
1. 0.01 - 0.15 mm (0.0004 - 0.0059 in)

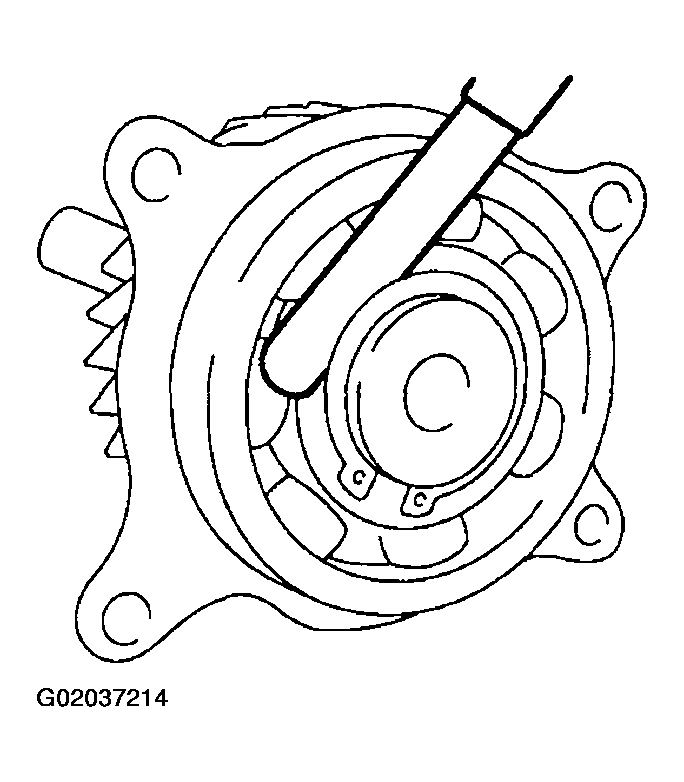

  Fig 2: Measuring Snap Ring Clearance
If the measurement is not within the specification, select suitable snap ring.

Fig 3: Snap Ring Thickness Chart
