Pitching Stopper

  1. Install the pitching stopper.

    Tightening torque:

    1. T1:  50 N.m (5.1 kgf-m, 37 ft-lb)
    2. T2:  58 N.m (5.9 kgf-m, 43 ft-lb)

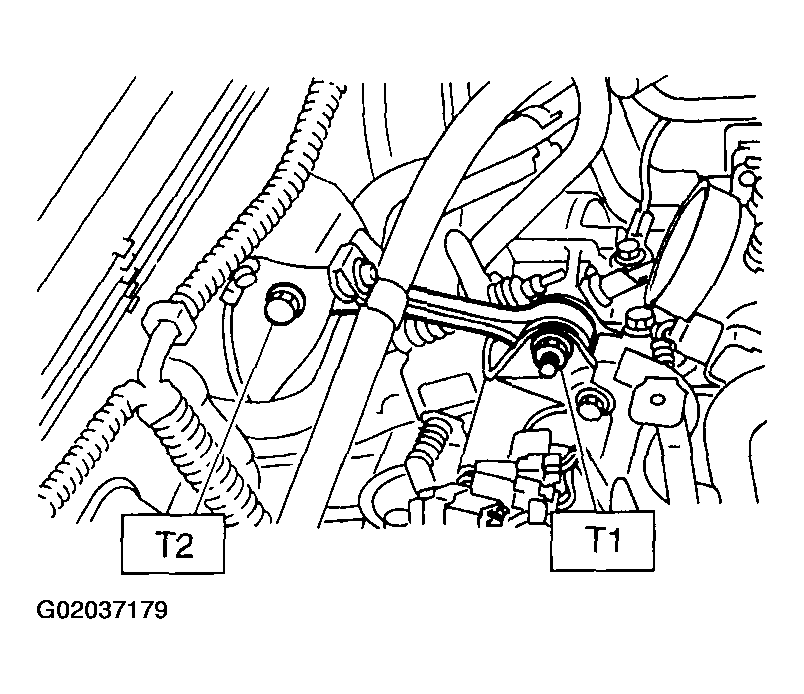

      Fig 1: Installing The Pitching Stopper
      G02037179
  2. Install the air intake duct and cleaner case.
