Vehicle Speed Sensor: Removal

  1. Disconnect ground terminal from battery.
  2. Lift-up the vehicle.
  3. Remove center rear exhaust pipes and muffler.
  4. Disconnect connector from vehicle speed sensor.
  5. Turn and remove vehicle speed sensor.

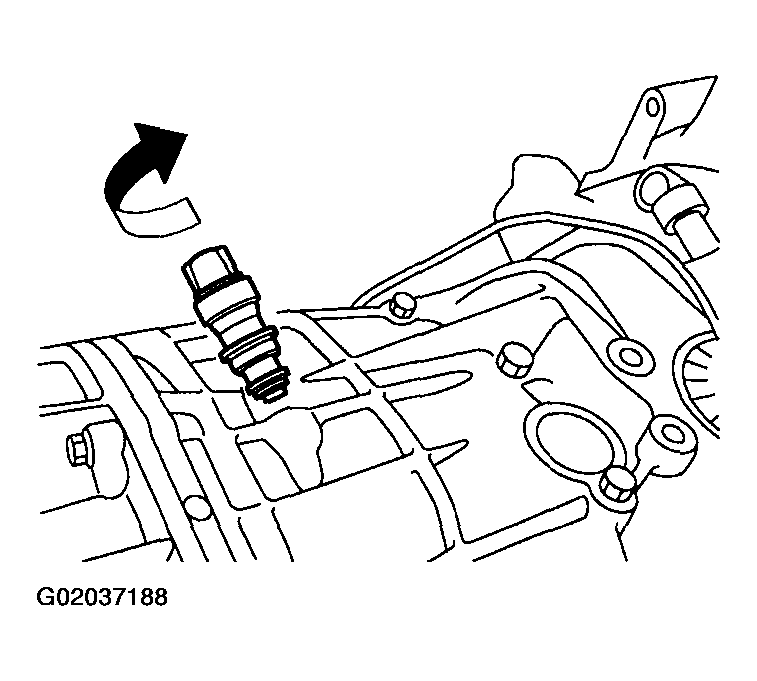

    Fig 1: Removing Vehicle Speed Sensor
    G02037188
