Home >> Subaru >> 2001 >> Outback VDC >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (3.0L) >> General Description >> Component >> Fuel Filler Pipe

Fuel Filler Pipe

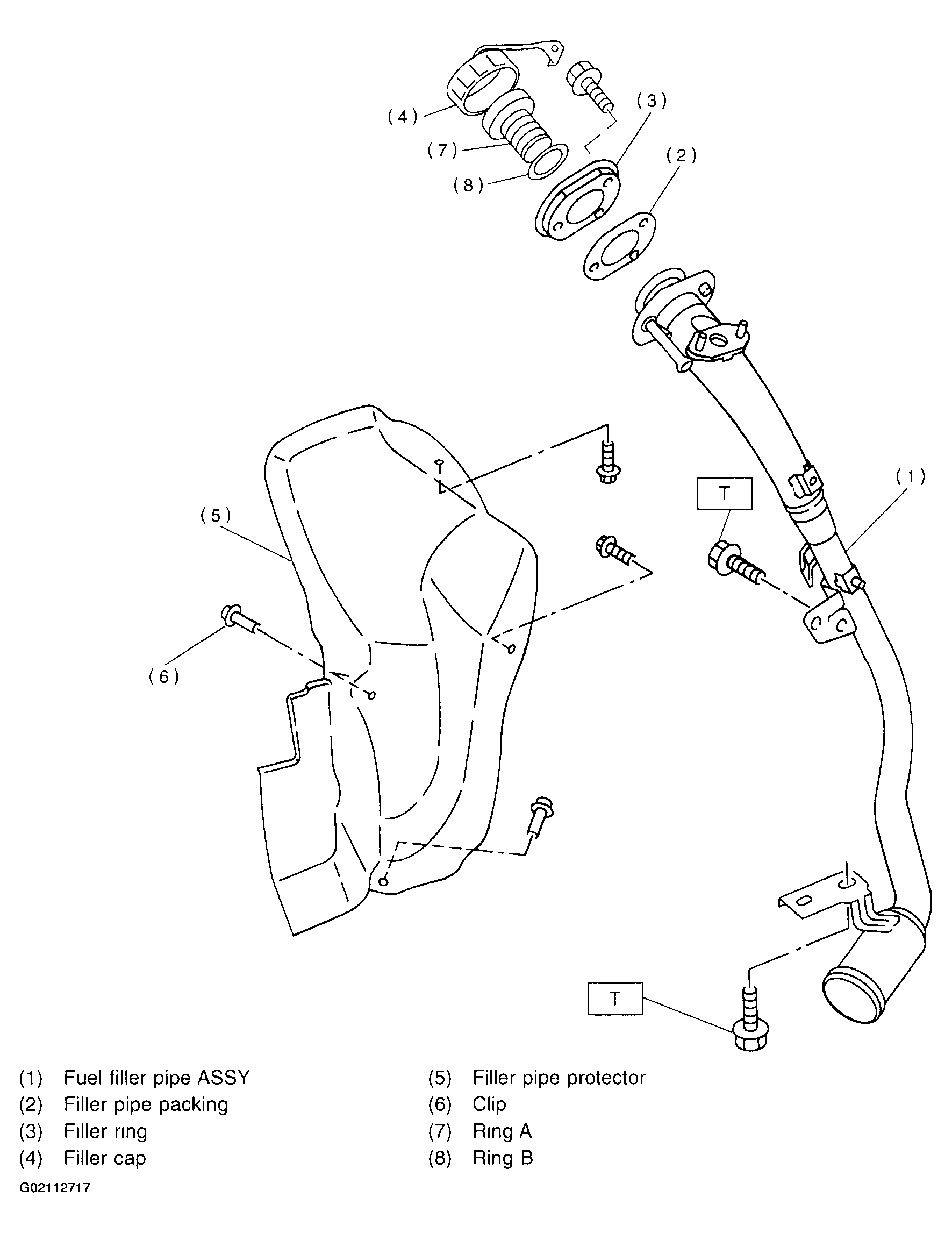

Fig 1: Exploded View Of Fuel Filler Pipe & Components
G02112717

Tightening torque: N-m (kgf-m, ft-lb)

  1. T:  7.5 (0. 75, 5.4)
