Main Relay: Removal

  1. Disconnect battery ground cable.

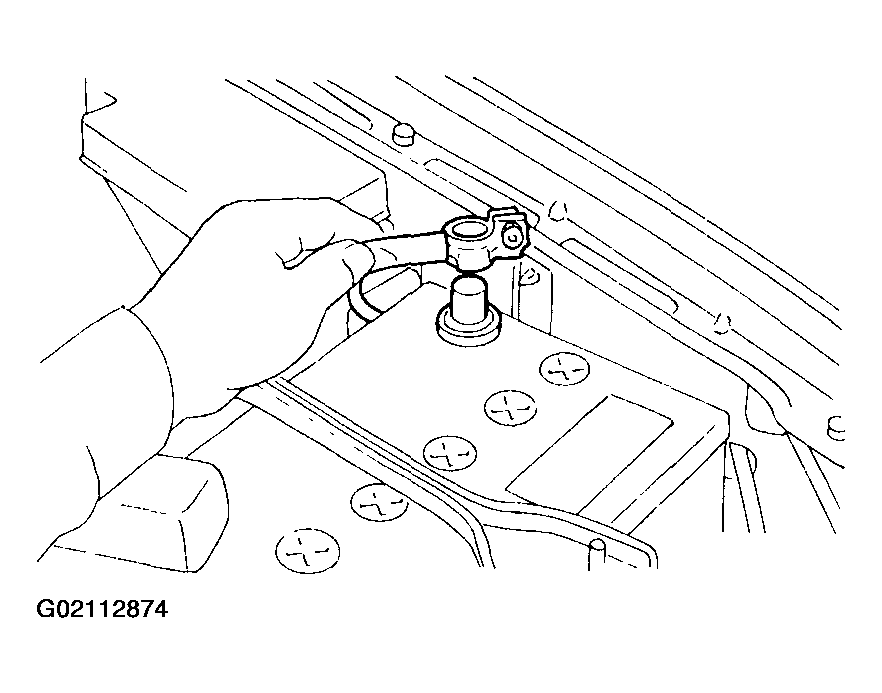

    Fig 1: Disconnecting Battery Ground Cable
    G02112874
  2. Remove lower inner trim of passenger side. See REMOVAL , Lower Inner Trim.
  3. Disconnect connectors from main relay.
  4. Remove bolt which holds main relay bracket on body.

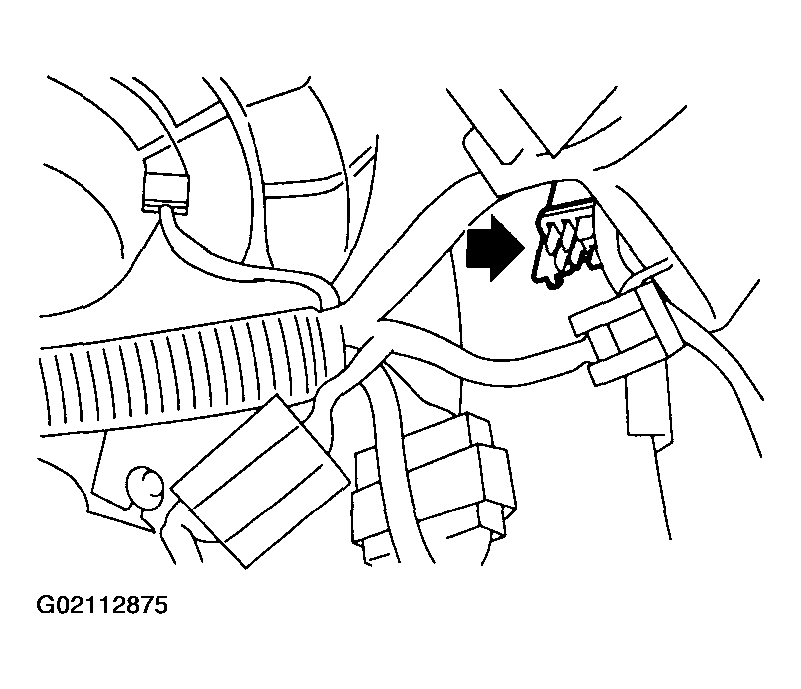

    Fig 2: Removing Bolt Holding Main Relay Bracket
    G02112875
