Intake System

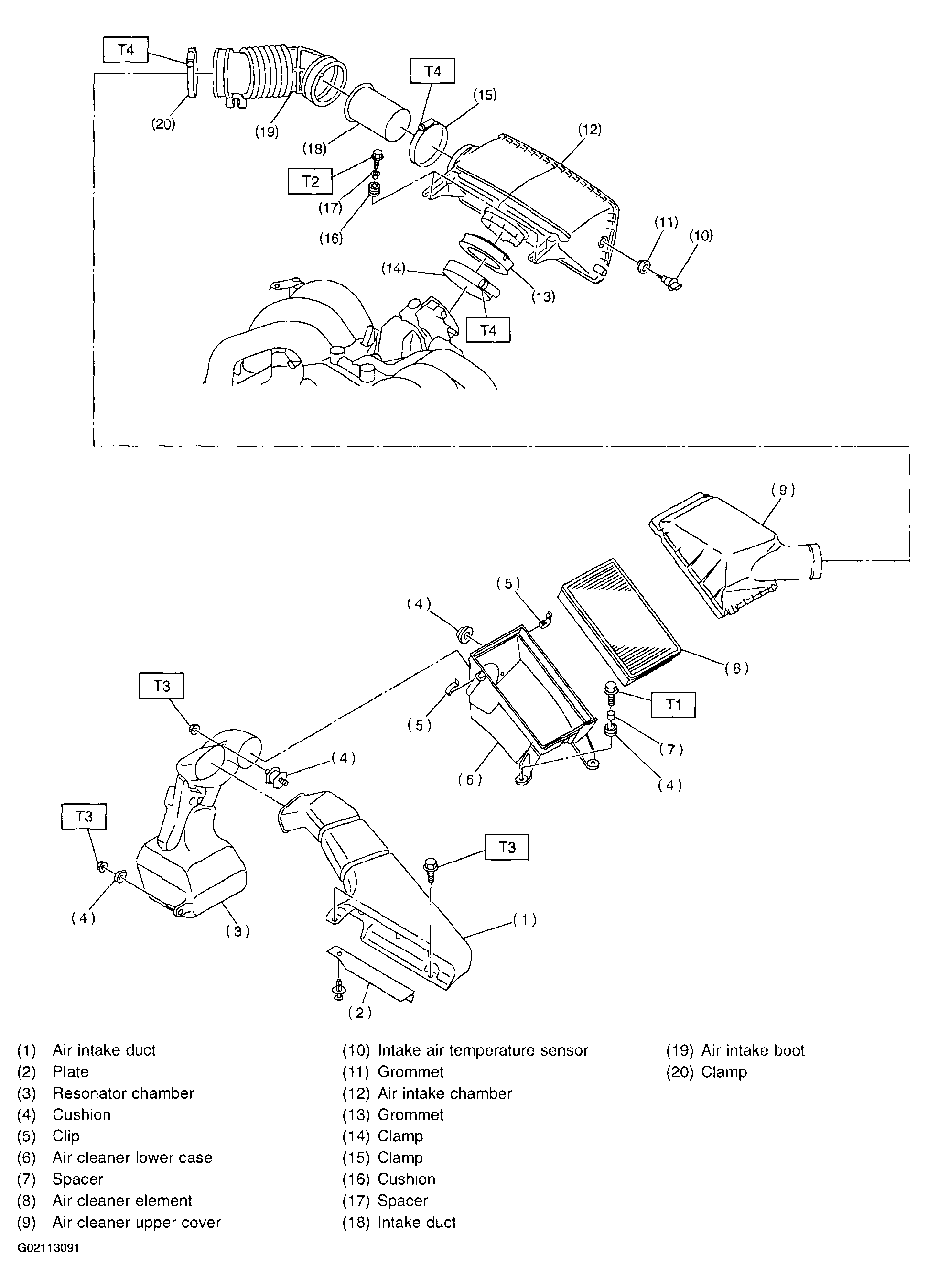

Fig 1: Exploded View Of Intake System
G02113091

Tightening torque:  N.m (kgf-m, ft-lb)

T1:  32.3 (3.3, 23.9)

T2:  6.4 (0.65 4.7)

T3:  7.5 (0.76, 5.5)

T4:  3 (0.3, 2.2)
