Intake Manifold: Disassembly

  1. Disconnect connectors from throttle position sensor.

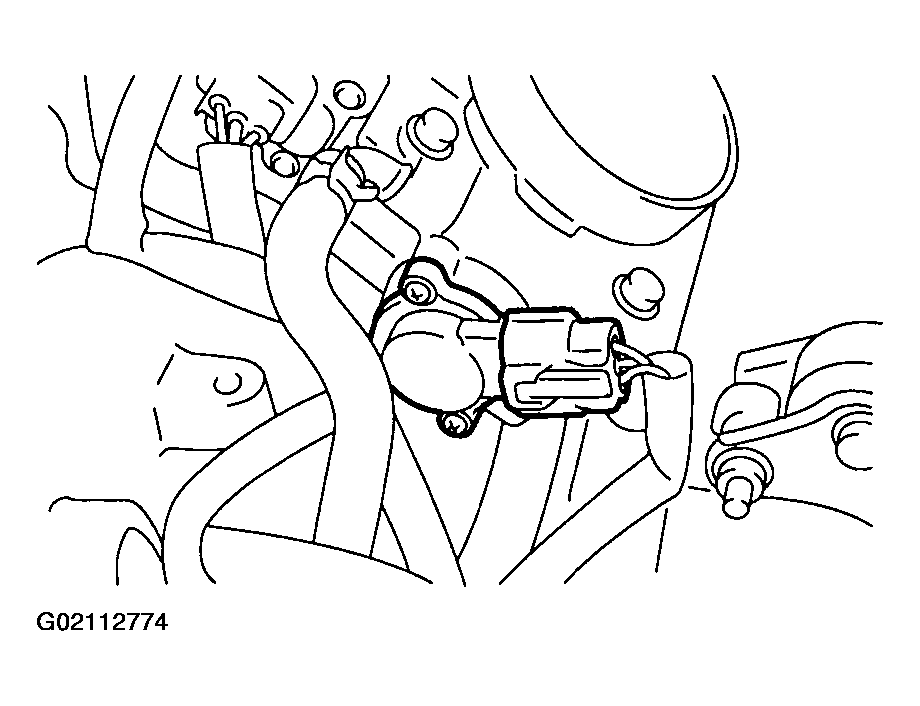

    Fig 1: Disconnecting Connectors From Throttle Position Sensor
    G02112774
  2. Disconnect connectors from intake manifold pressure sensor (B) and idle air control solenoid valve (A).
  3. Disconnect air by-pass hose (C) from idle air control solenoid valve.

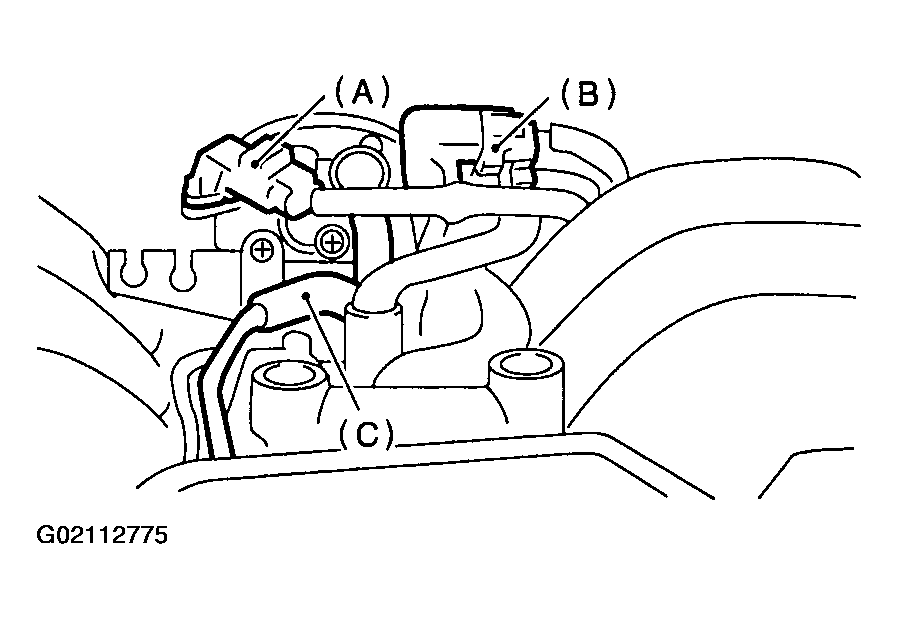

    Fig 2: Disconnecting Connectors From Intake Manifold Pressure Sensor
    G02112775
  4. Remove throttle body.

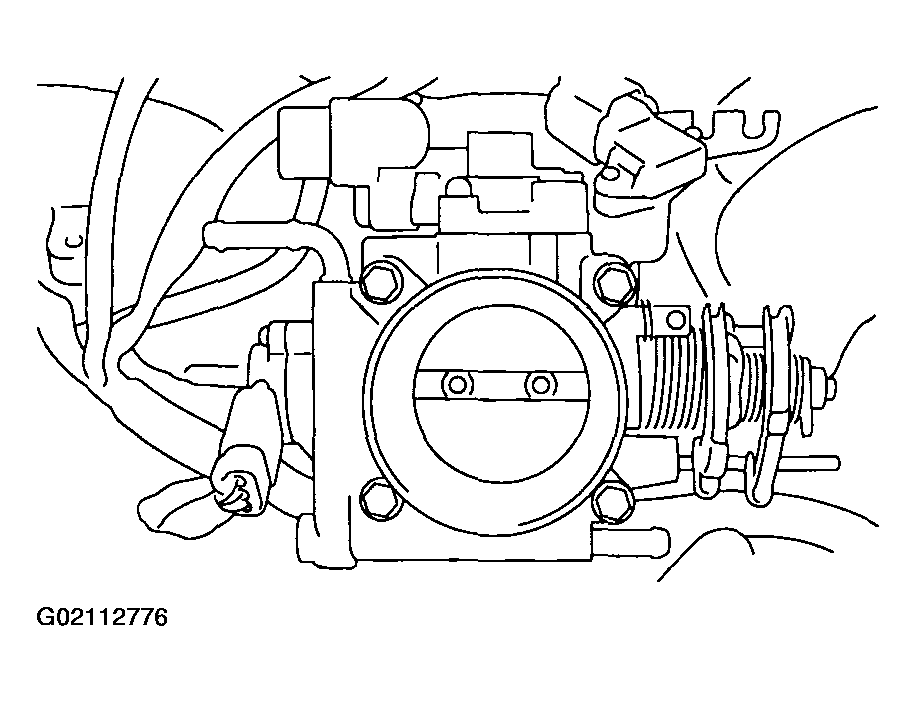

    Fig 3: Removing Throttle Body
    G02112776
  5. Remove induction valve.

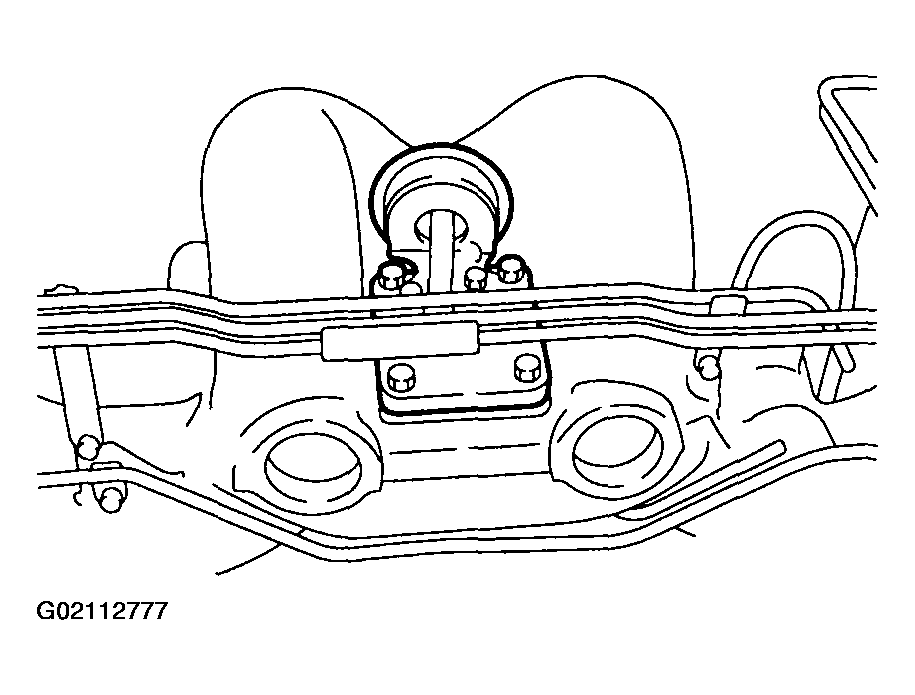

    Fig 4: Removing Induction Valve
    G02112777
  6. Disconnect connector from induction valve control solenoid.
  7. Remove induction valve control solenoid.

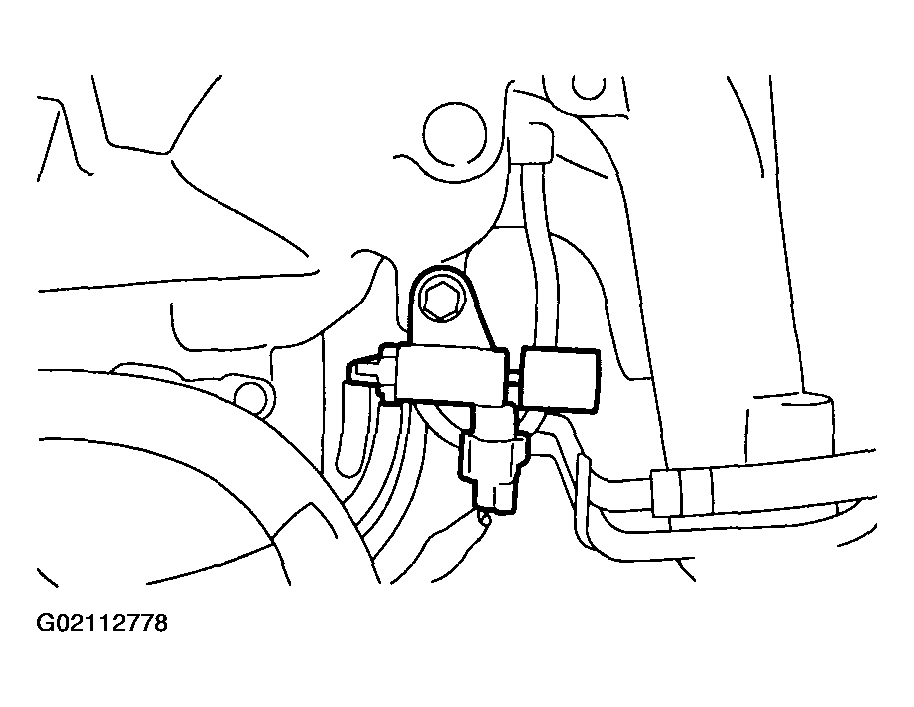

    Fig 5: Removing Induction Valve Control Solenoid
    G02112778
  8. Disconnect connector from purge control solenoid valve.
  9. Remove purge control solenoid valve.

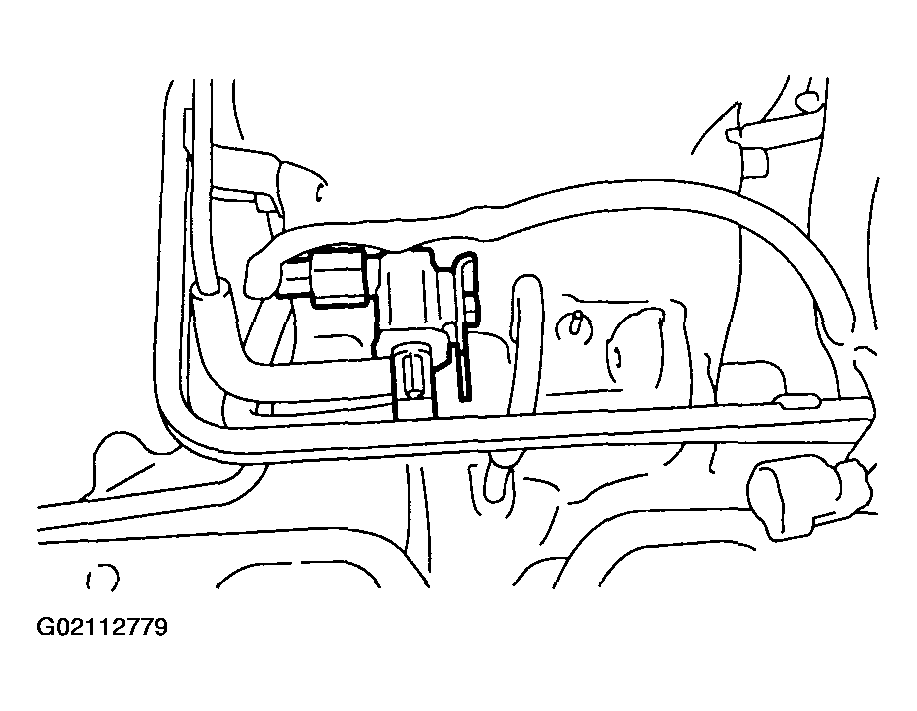

    Fig 6: Removing Purge Control Solenoid Valve
    G02112779
  10. Disconnect connector from EGR valve.
  11. Remove EGR valve.

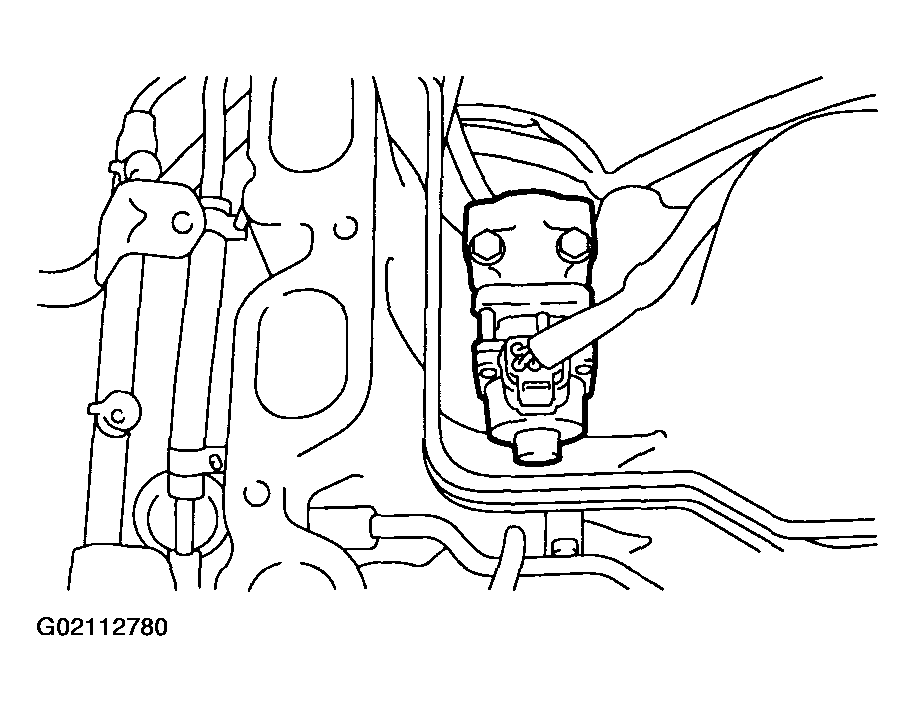

    Fig 7: Removing EGR Valve
    G02112780
  12. Remove engine harness assembly from intake manifold.

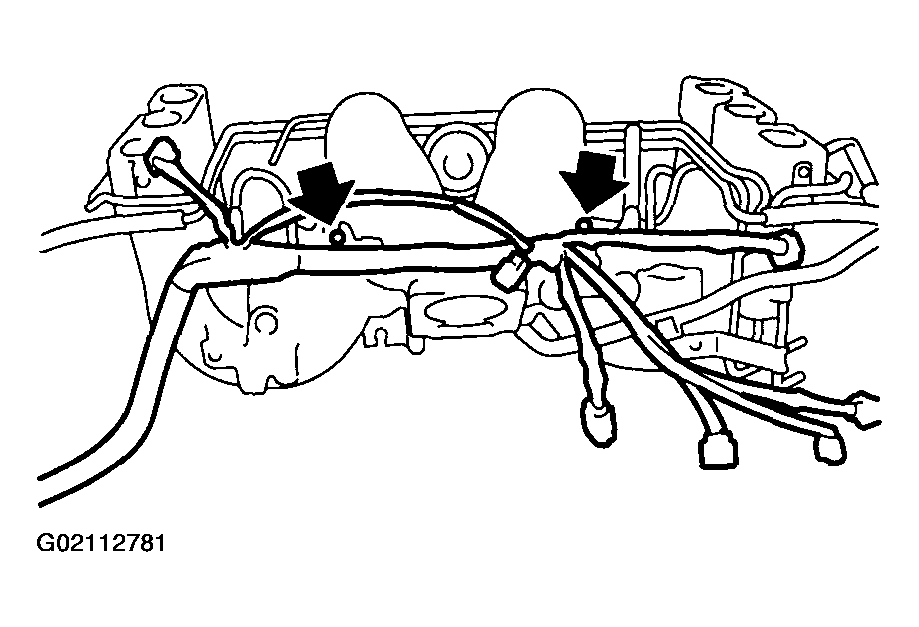

    Fig 8: Removing Engine Harness Assembly
    G02112781
  13. Remove PCV pipe from intake manifold.

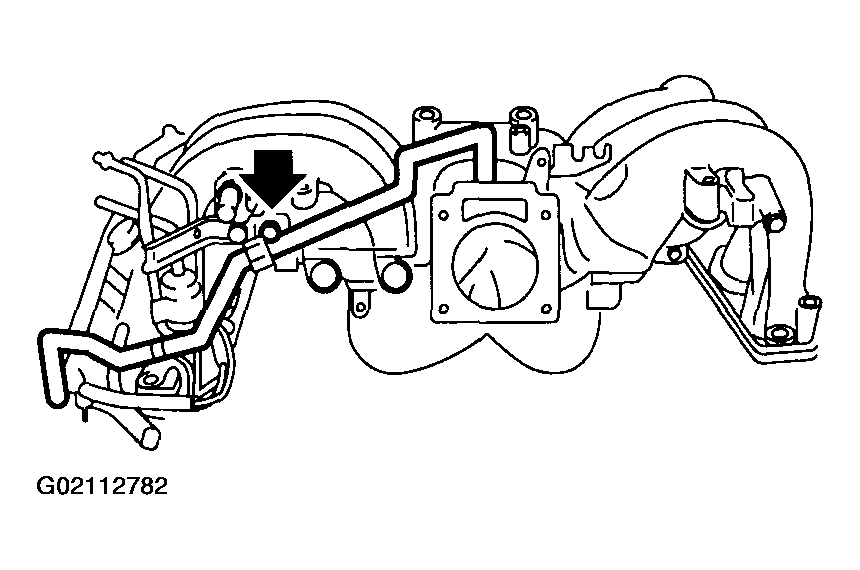

    Fig 9: Removing PCV Pipe
    G02112782
  14. Remove air assist and purge pipe assembly.

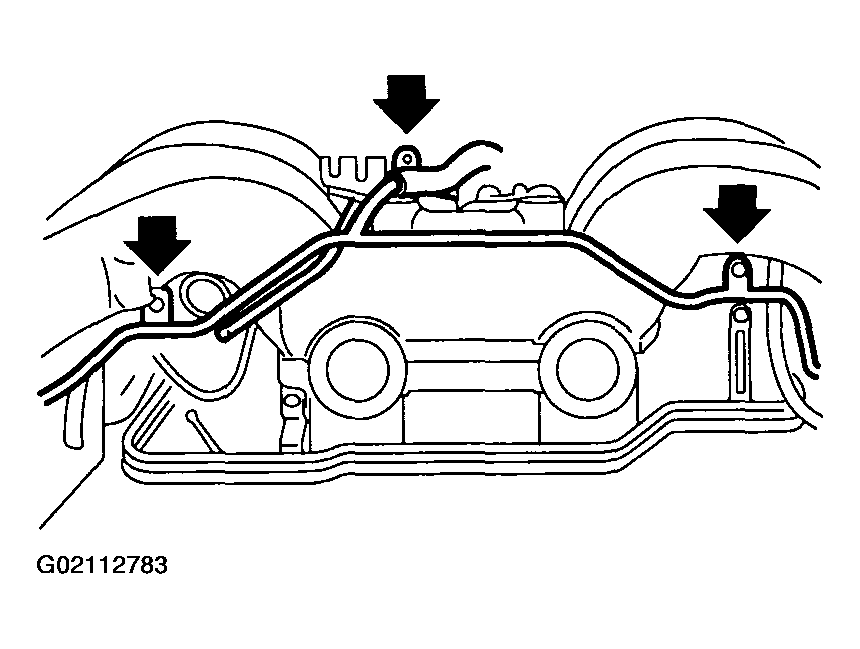

    Fig 10: Removing Air Assist & Purge Pipe Assembly
    G02112783
  15. Disconnect pressure regulator vacuum hose (A) from intake manifold.
  16. Remove fuel pipe and injector pipe assembly

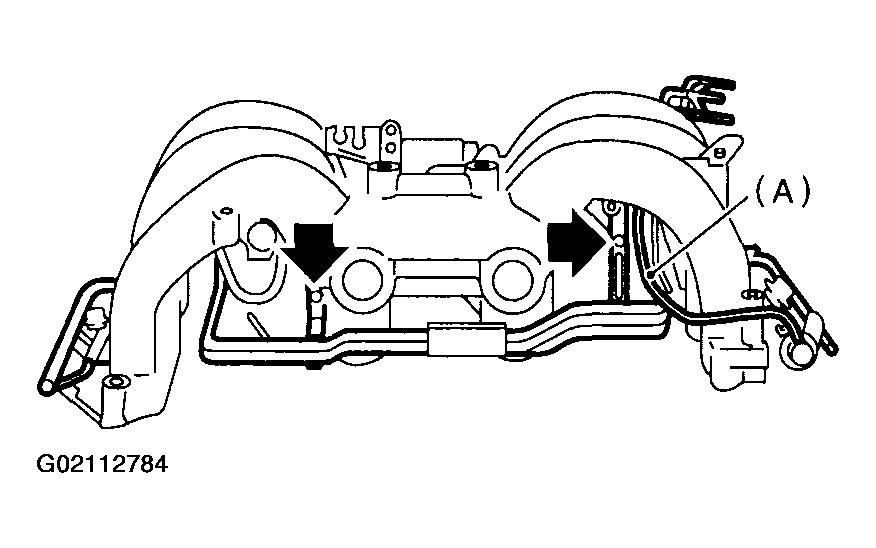

    Fig 11: Disconnecting Pressure Regulator Vacuum Hose
    G02112784

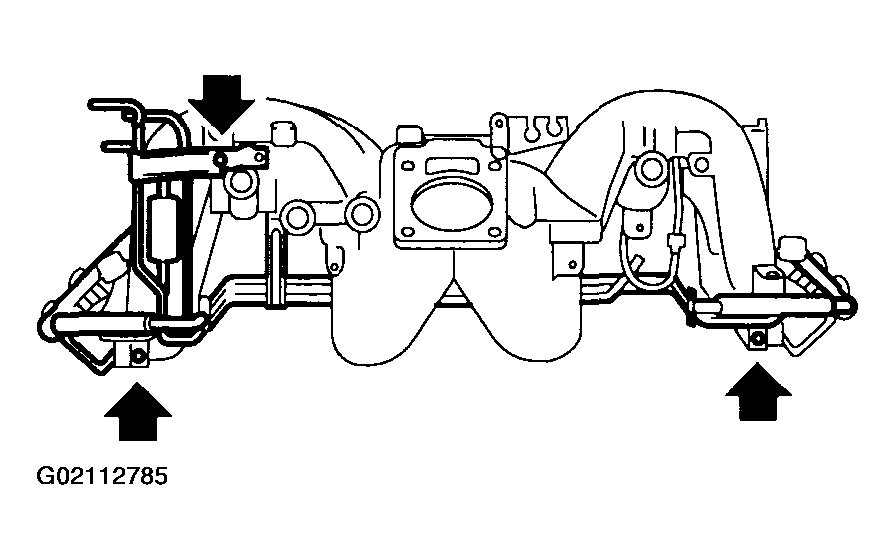

    Fig 12: Removing Fuel Pipe & Injector Pipe Assembly
    G02112785
  17. Remove induction valve vacuum hose from intake manifold.

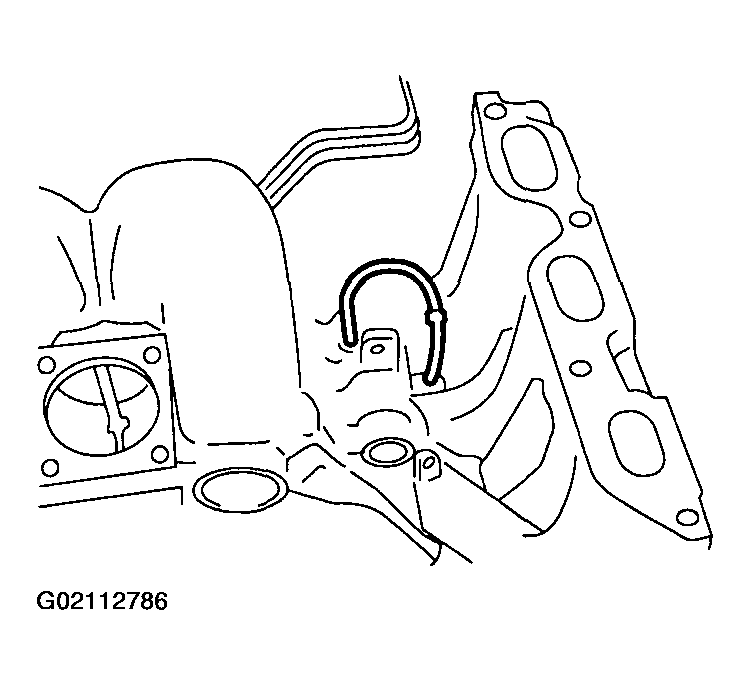

    Fig 13: Removing Induction Valve Vacuum Hose
    G02112786
