Intake Manifold: Installation

  1. Install intake manifold onto cylinder heads.
    CAUTION: Always use new gaskets.
    1. Tightening torque:  25 Nm (2.5 kgf-m, 18.1 ft-lb)

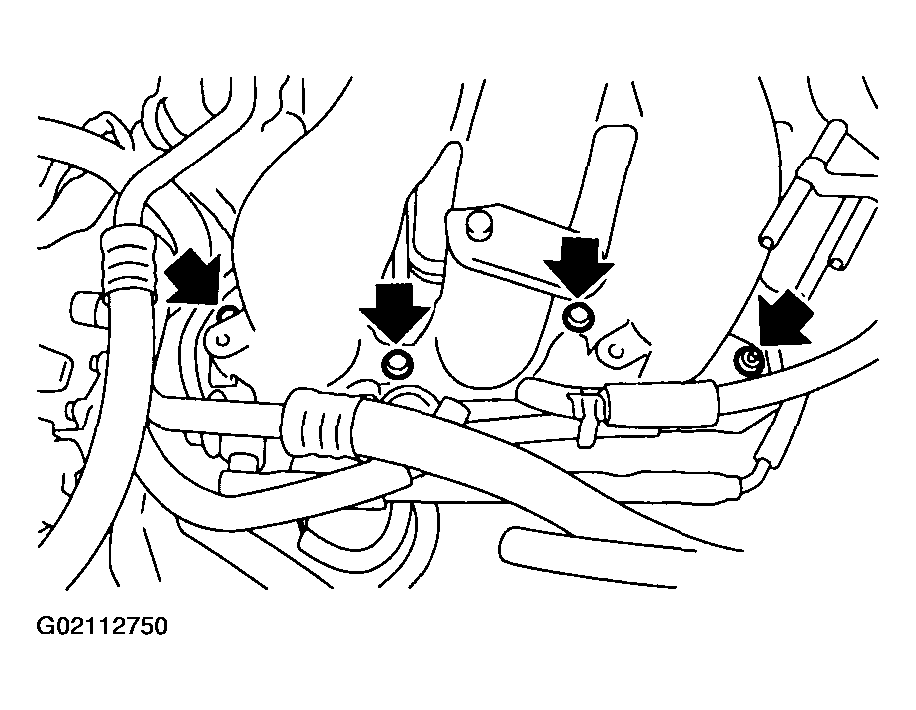

    Fig 1: Installing Intake Manifold Bolts (1 Of 2)
    G02112750

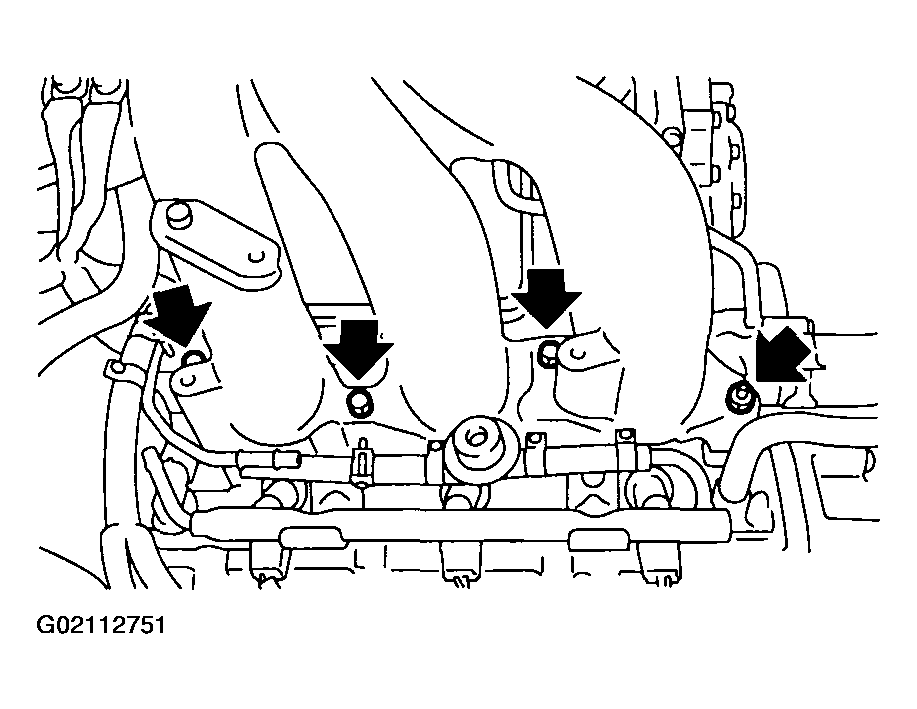

    Fig 2: Installing Intake Manifold Bolts (2 Of 2)
    G02112751
  2. Install the bolt (B), which holds fuel injector pipe RH onto cylinder head.
    1. Tightening torque:  19 Nm (1.9 kgf-m, 14 ft-lb)
  3. Connect air assist hose (A).

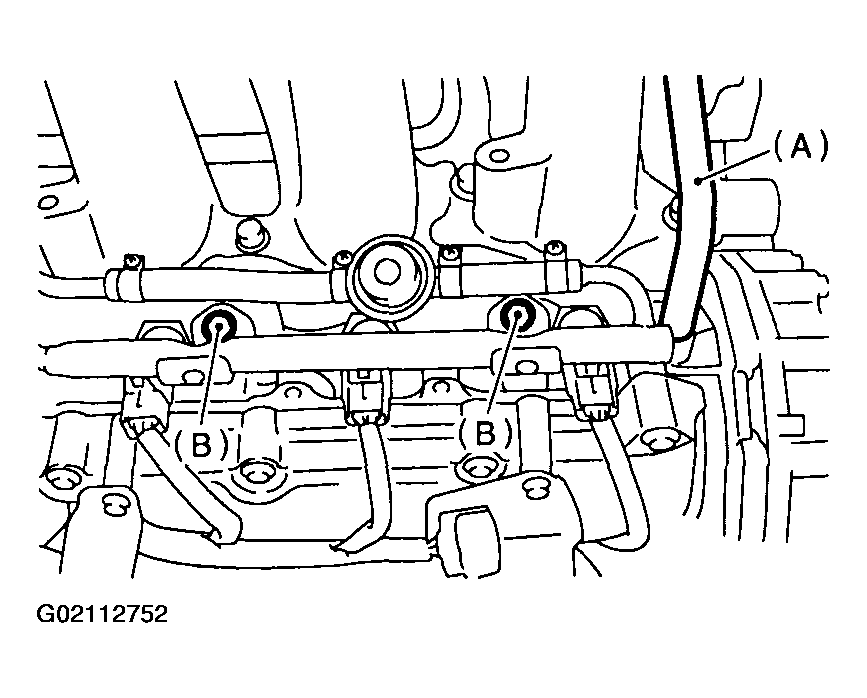

    Fig 3: Connecting Air Assist Hose & Installing Bolt Holding Fuel Injector Pipe RH
    G02112752
  4. Install fuel pipe protector RH.
    1. Tightening torque:  19 Nm (1.9 kgf-m, 14 ft-lb)

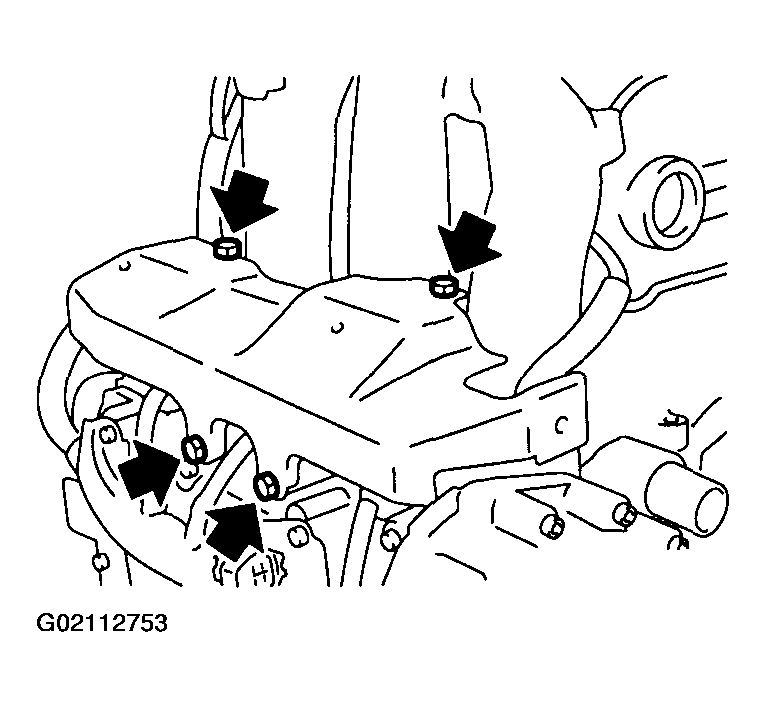

    Fig 4: Installing Fuel Pipe Protector RH
    G02112753
  5. Install ground cable to fuel pipe protector RH.

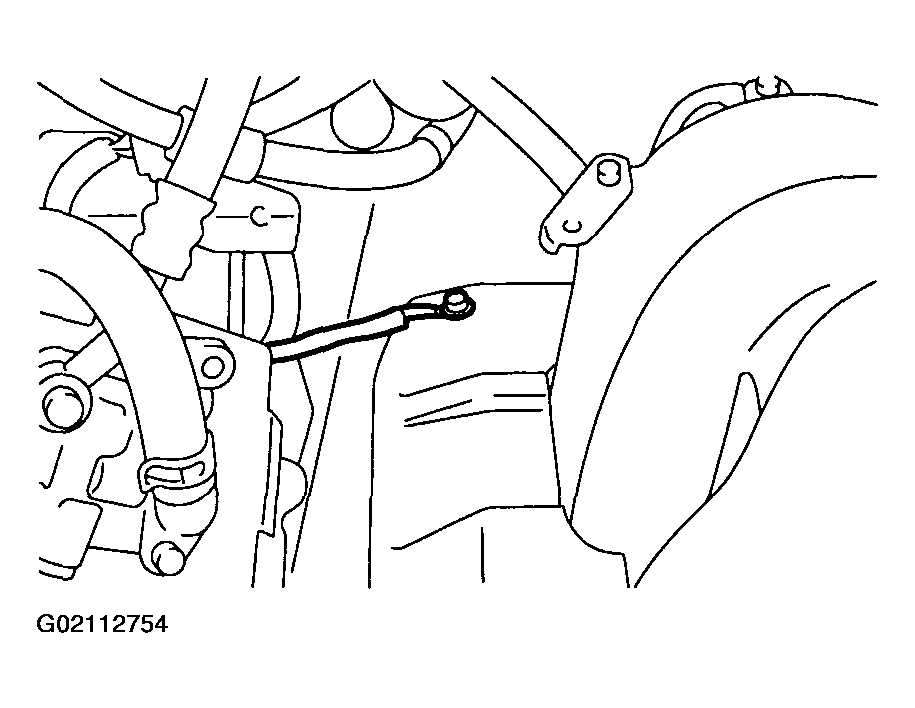

    Fig 5: Installing Ground Cable To Fuel Pipe Protector RH
    G02112754
  6. Install the bolt (B) which holds fuel injector pipe RH onto cylinder head.
    1. Tightening torque:  19 Nm (1.9 kgf-m, 14 ft-lb)
  7. Connect air assist hose (A).

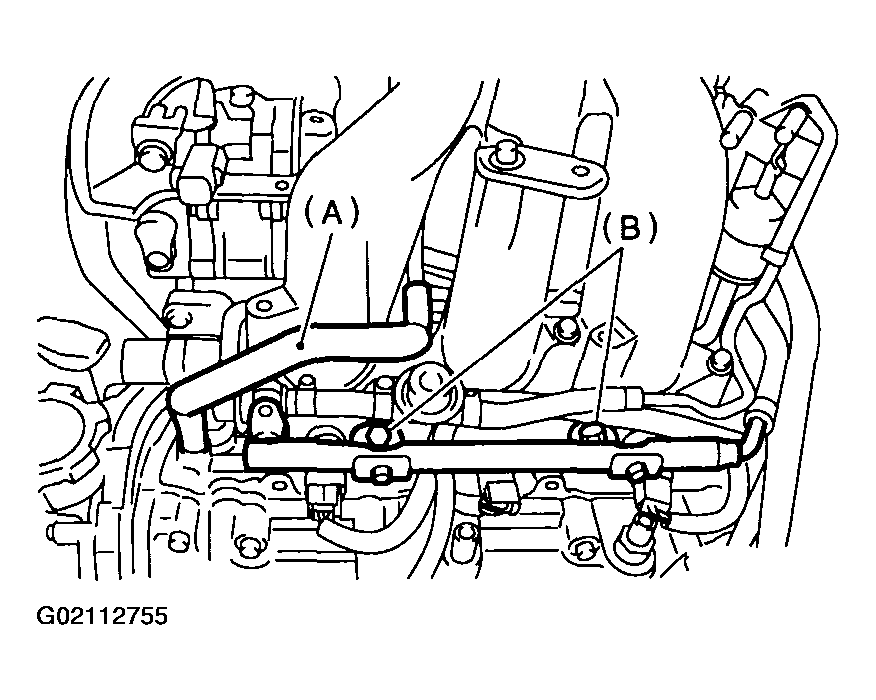

    Fig 6: Connecting Air Assist Hose & Installing Bolt Holding Fuel Injector Pipe RH
    G02112755
  8. Install fuel pipe protector LH.
    1. Tightening torque:  19 Nm (1.9 kgf-m, 14 ft-lb)

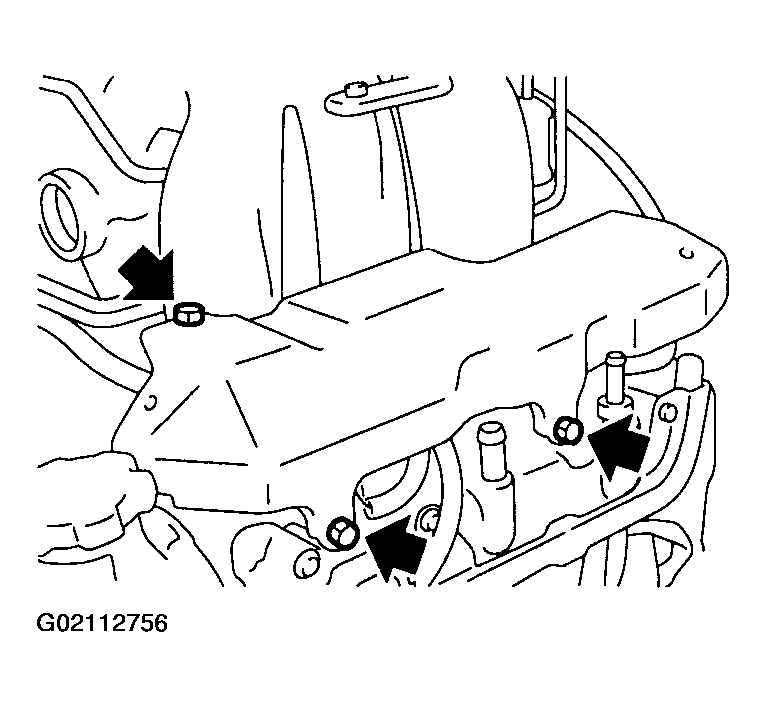

    Fig 7: Installing Fuel Pipe Protector LH
    G02112756
  9. Install ground cable to fuel pipe protector LH.

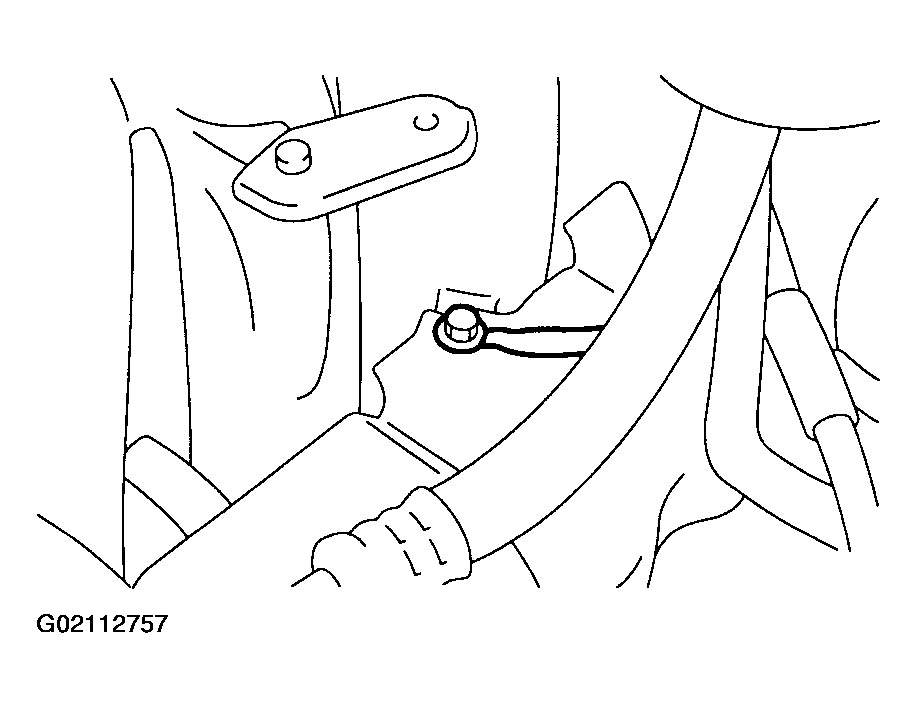

    Fig 8: Installing Ground Cable To Fuel Pipe Protector LH
    G02112757
  10. Install EGR pipe to EGR valve.
    CAUTION: Always use new gasket.
    1. Tightening torque:  6.4 Nm (0.65 kgf-m, 4.7 ft-lb)

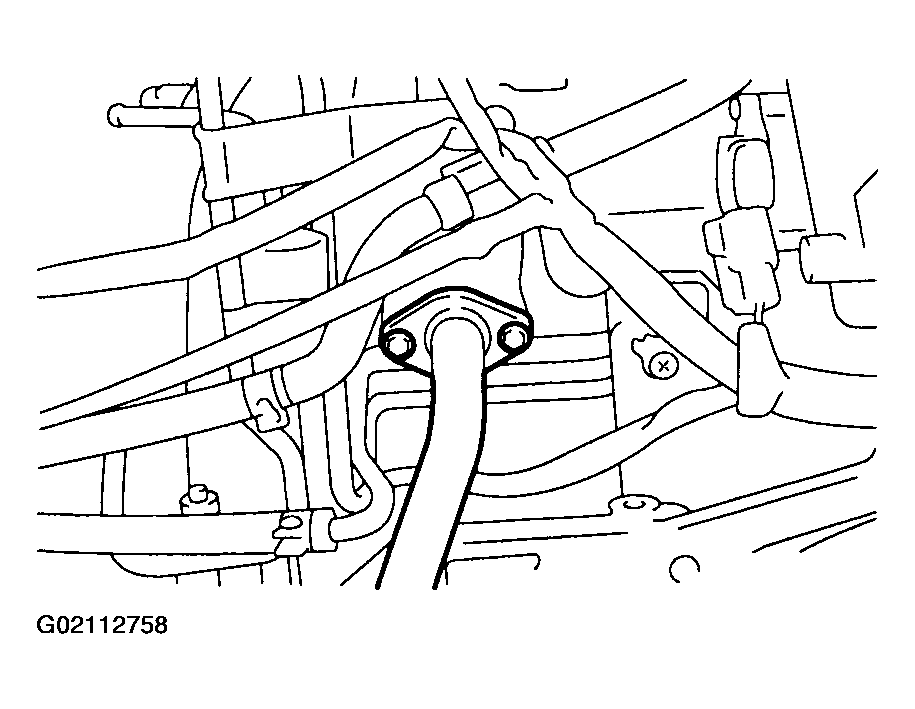

    Fig 9: Installing EGR Pipe To EGR Valve
    G02112758
  11. Connect fuel hoses.

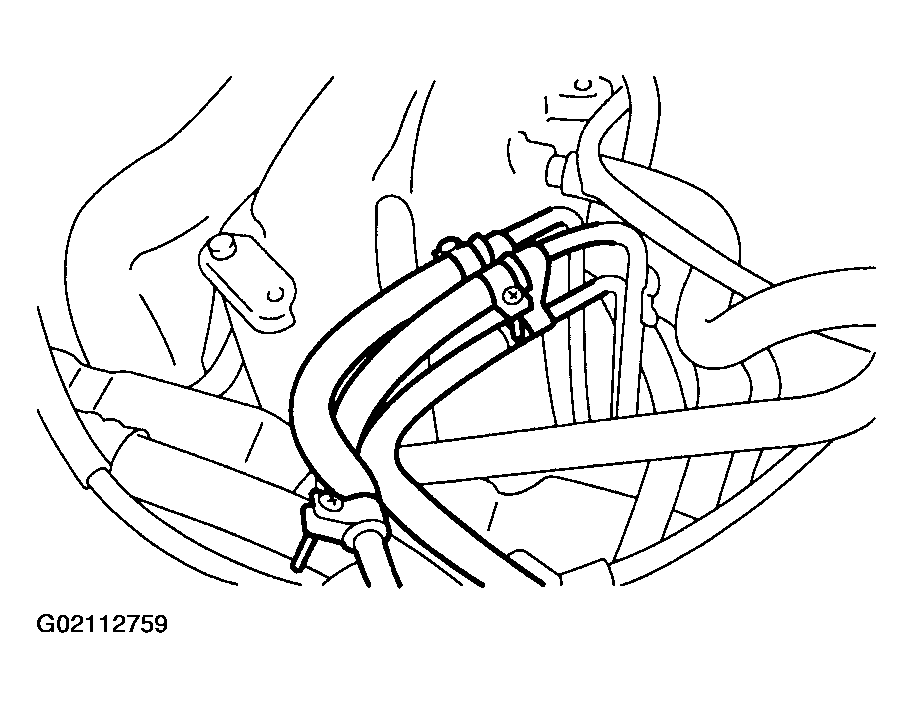

    Fig 10: Connecting Fuel Hoses
    G02112759
  12. Connect engine ground terminal to intake manifold.

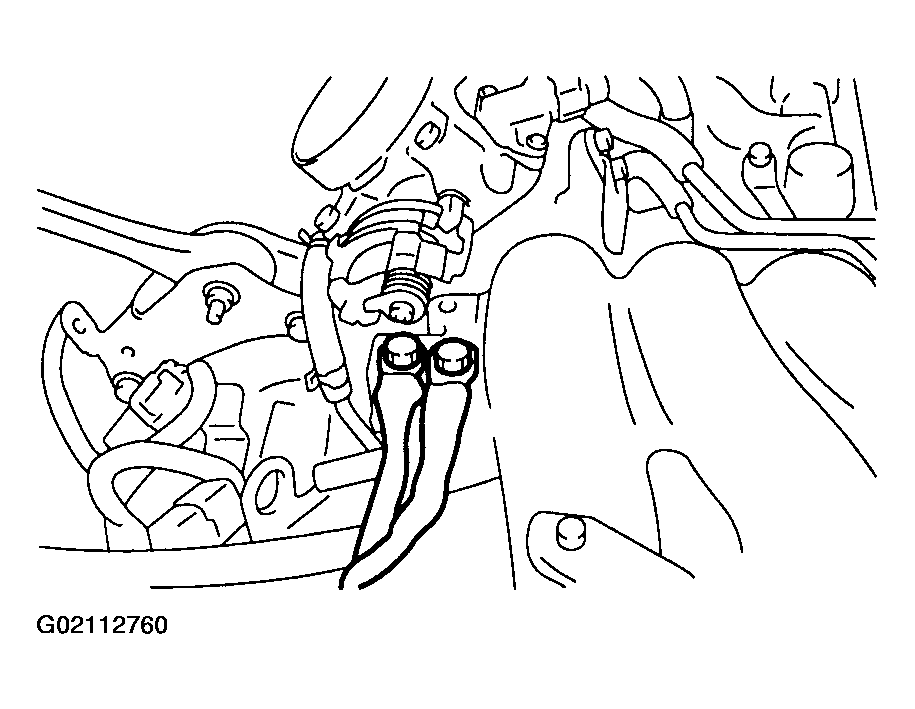

    Fig 11: Connecting Engine Ground Terminal To Intake Manifold
    G02112760
  13. Connect engine harness connectors to bulkhead connectors.

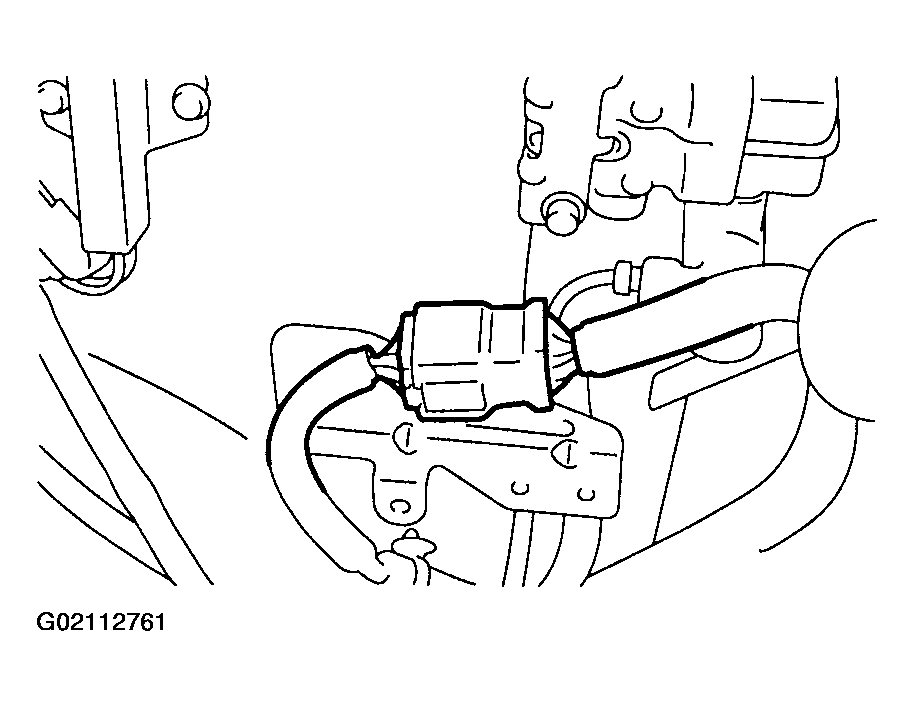

    Fig 12: Connecting Engine Harness Connectors To Bulkhead Connectors
    G02112761
  14. Connect brake booster hose.

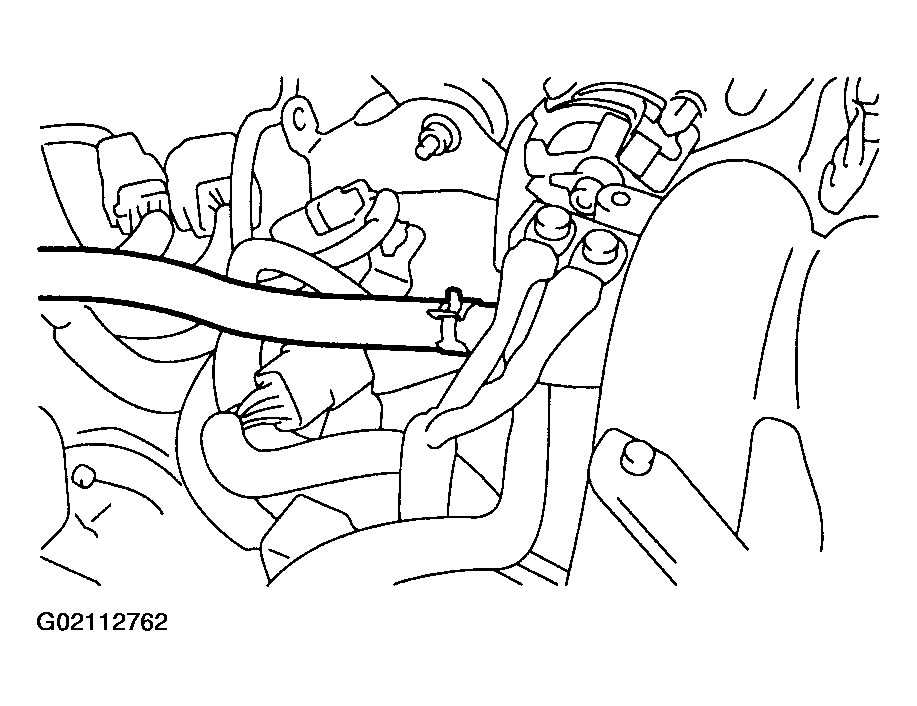

    Fig 13: Connecting Brake Booster Hose
    G02112762
  15. Connect engine coolant hose to throttle body.

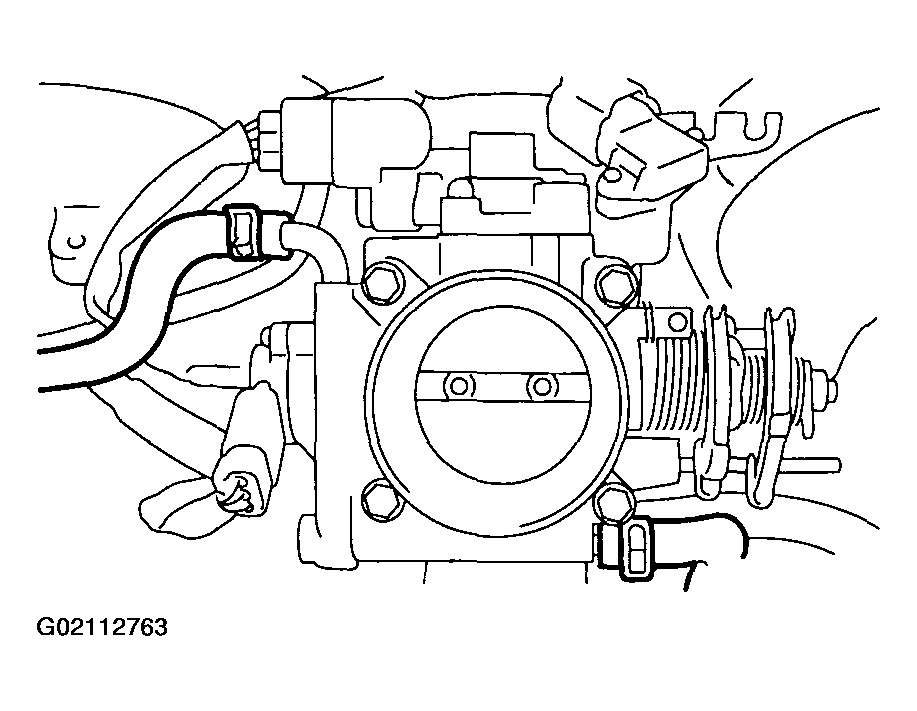

    Fig 14: Connecting Engine Coolant Hose To Throttle Body
    G02112763
  16. Connect PCV hose to cylinder head cover.

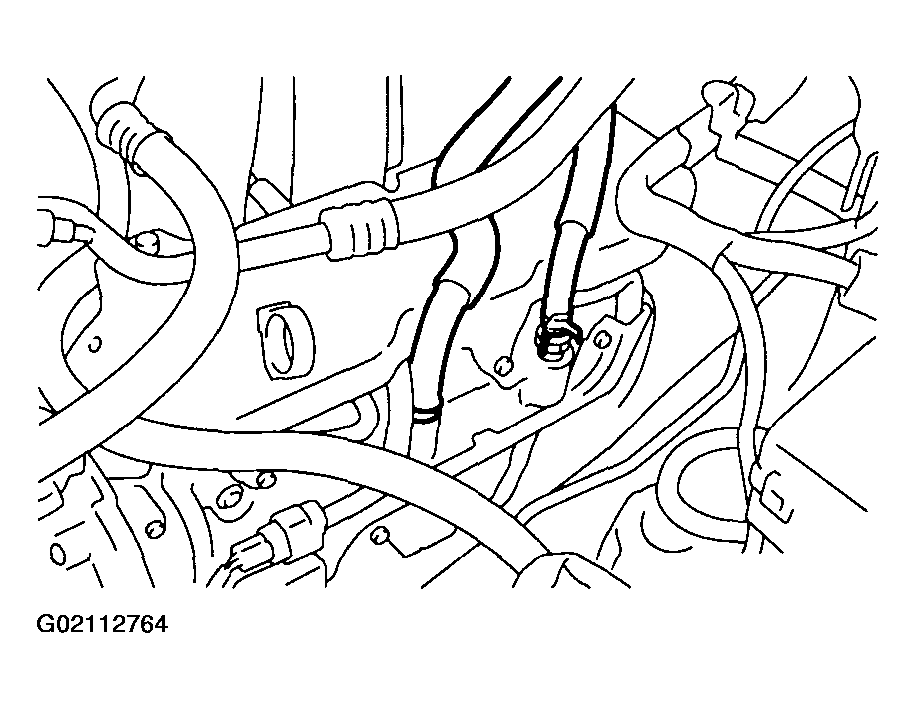

    Fig 15: Connecting PCV Hose To Cylinder Head Cover
    G02112764
  17. Install power steering pump and tank on brackets.
    1. Install power steering tank on bracket.

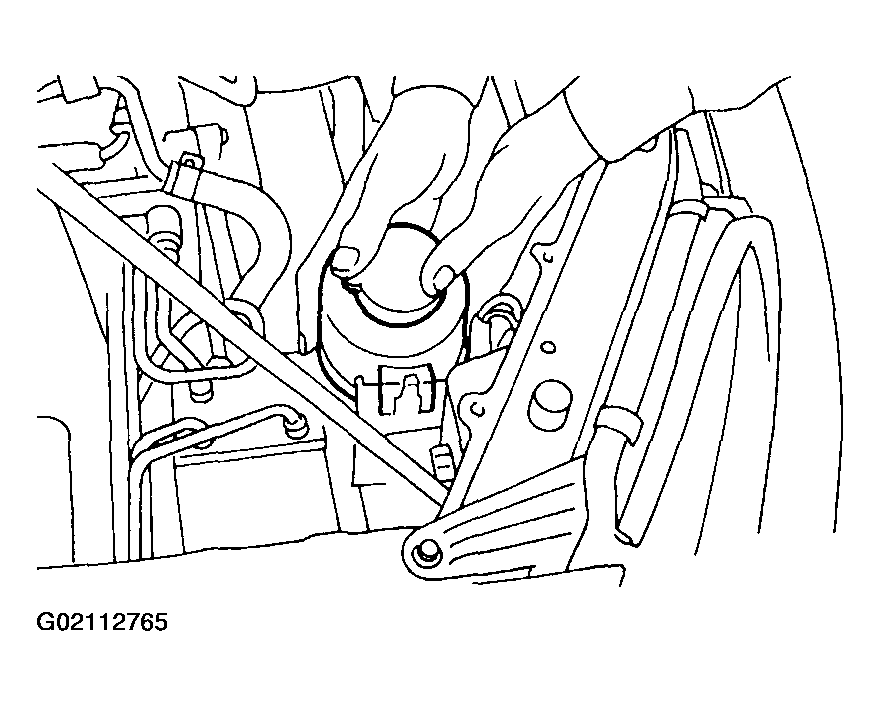

      Fig 16: Installing Power Steering Tank On Bracket
      G02112765
    2. Connect connector to power steering pump switch.

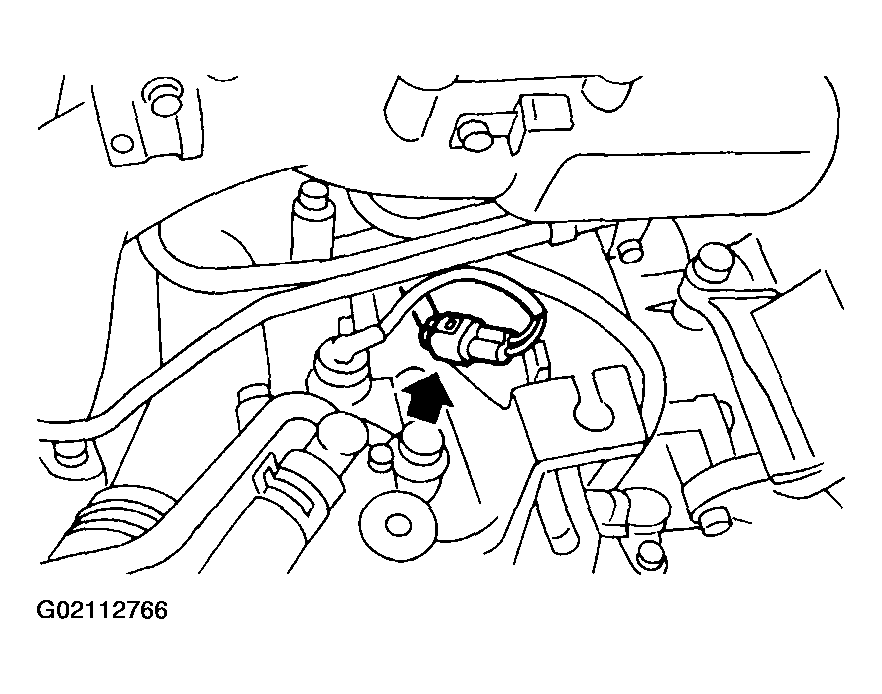

      Fig 17: Connecting Connector To Power Steering Pump Switch
      G02112766
    3. Tighten bolts which install power steering pump on bracket.
      1. Tightening torque:  20.1 Nm (2.05 kgf-m, 14.8 ft-lb)

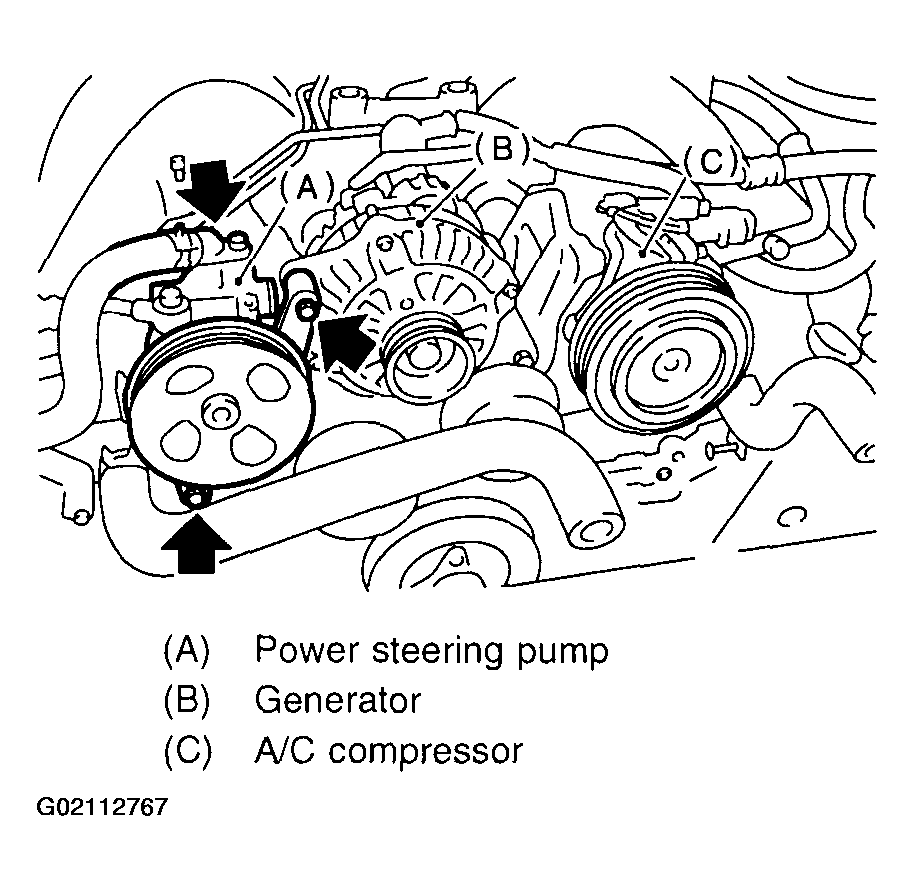

      Fig 18: Tightening Bolts From Power Steering Pump On Bracket
      G02112767
    4. Install power steering pipes with bracket.

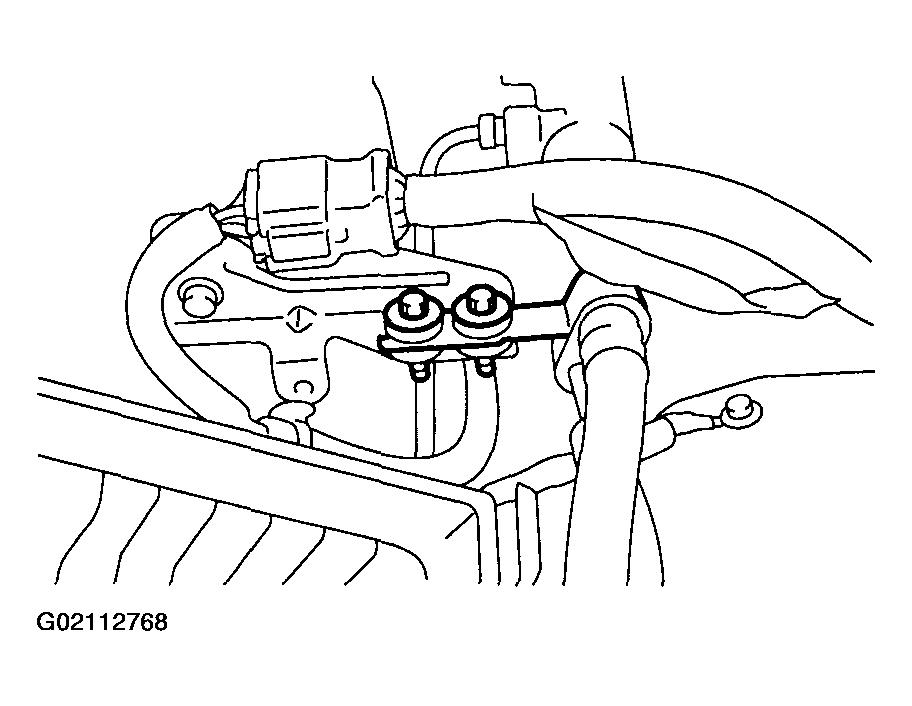

      Fig 19: Installing Power Steering Pipes With Bracket
      G02112768
    5. Install V-belt. See INSTALLATION , V-belt.
  18. Connect rear window washer hose to washer motor.
  19. Connect front window washer motor connector.
  20. Connect rear window washer motor connector.

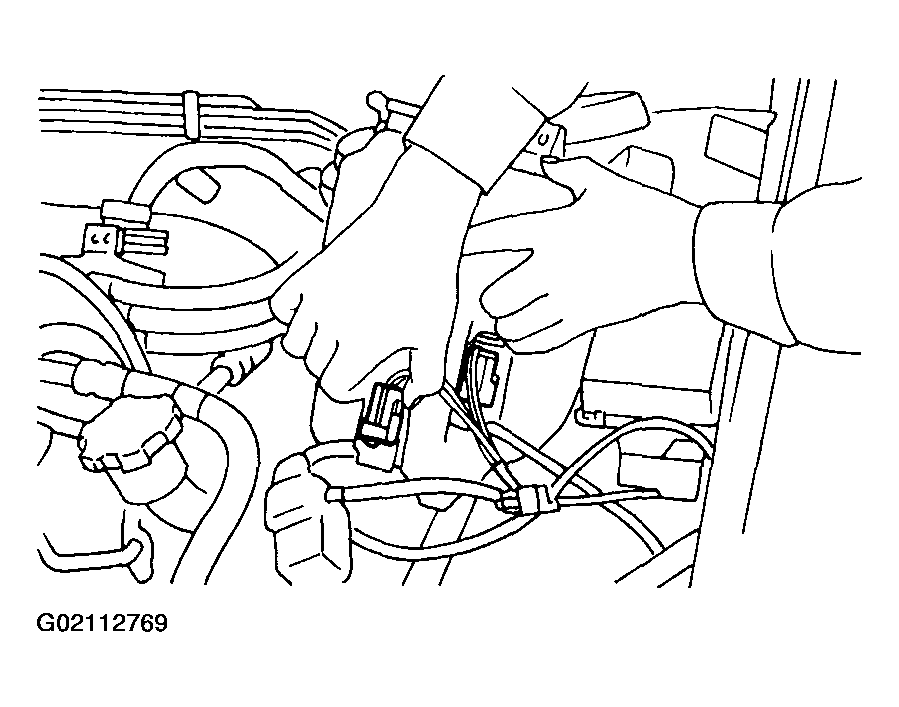

    Fig 20: Connecting Window Washer Motor Connector
    G02112769
  21. Install washer tank on body.
    Fig 21: Installing Washer Tank
    G02112770
  22. Connect accelerator cable (A).
  23. Connect cruise control cable (B). (With cruise control models)

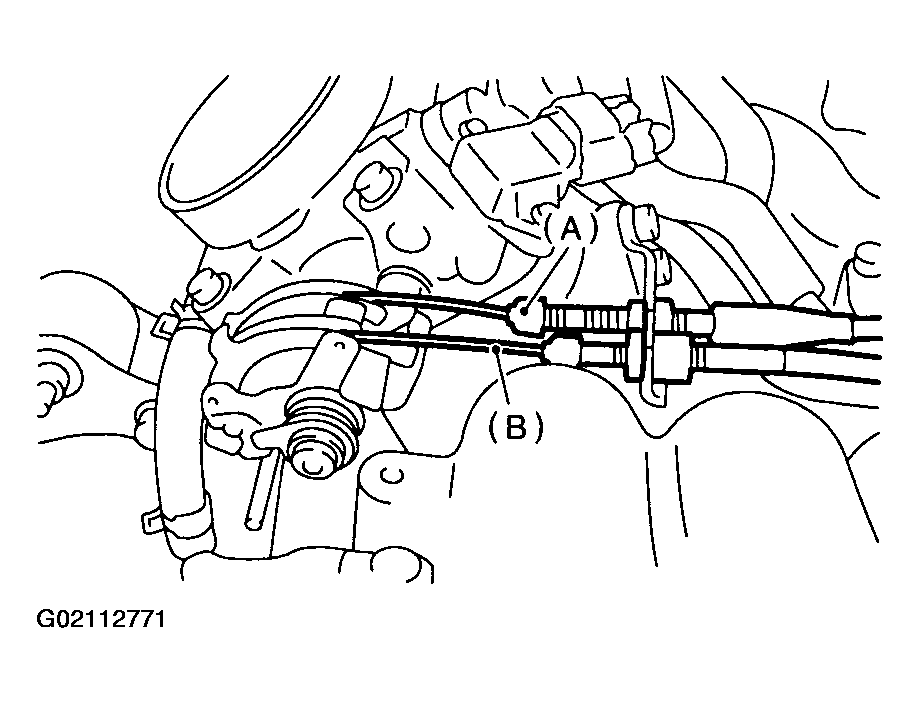

    Fig 22: Connecting Accelerator Cable & Cruise Control Cable (With Cruise Control Model)
    G02112771
  24. Install air intake duct, air cleaner and air intake chamber. See INSTALLATION  , Air Intake Duct, INSTALLATION  , Air Cleaner and INSTALLATION  , Air Intake Chambers.
  25. Connect connector to fuel pump relay.

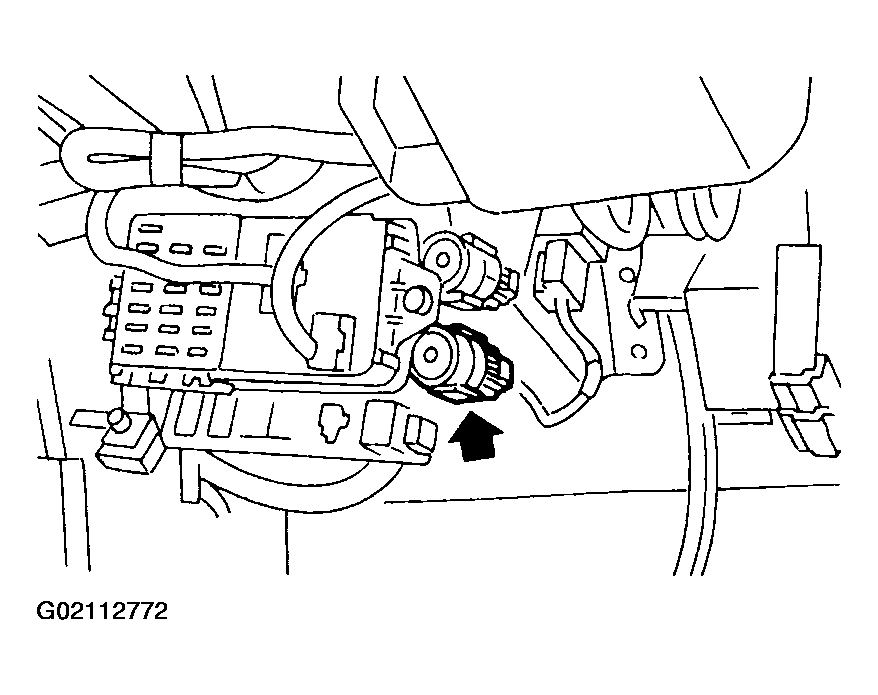

    Fig 23: Connecting Connector To Fuel Pump Relay
    G02112772
  26. Connect battery ground cable.

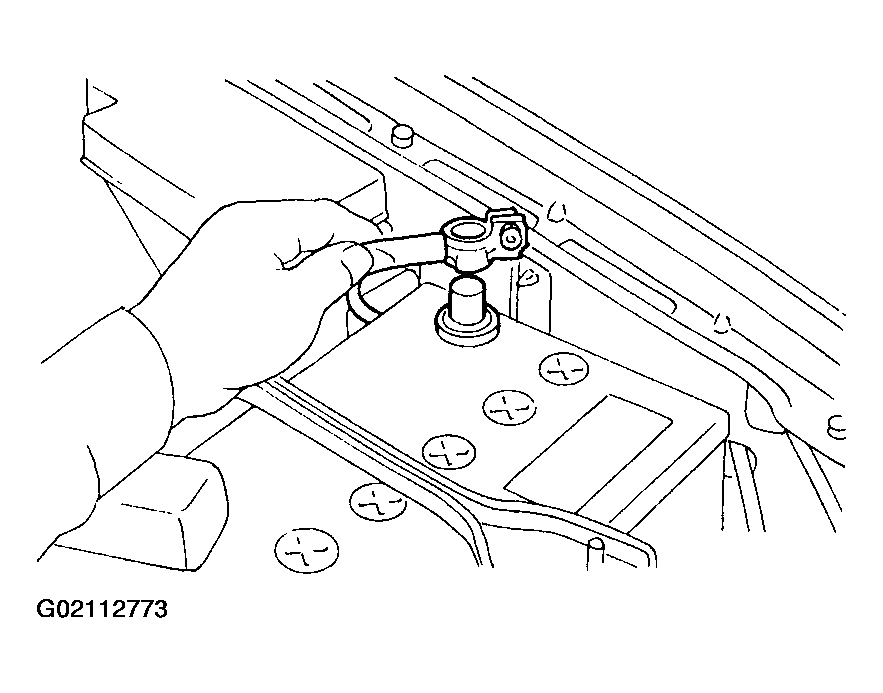

    Fig 24: Connecting Battery Ground Cable
    G02112773
