Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis (Single Page) >> Transmission >> Automatic Trans >> Automatic Transmission (Diagnostics) >> Electrical Components Location >> Location >> Control Module

Control Module

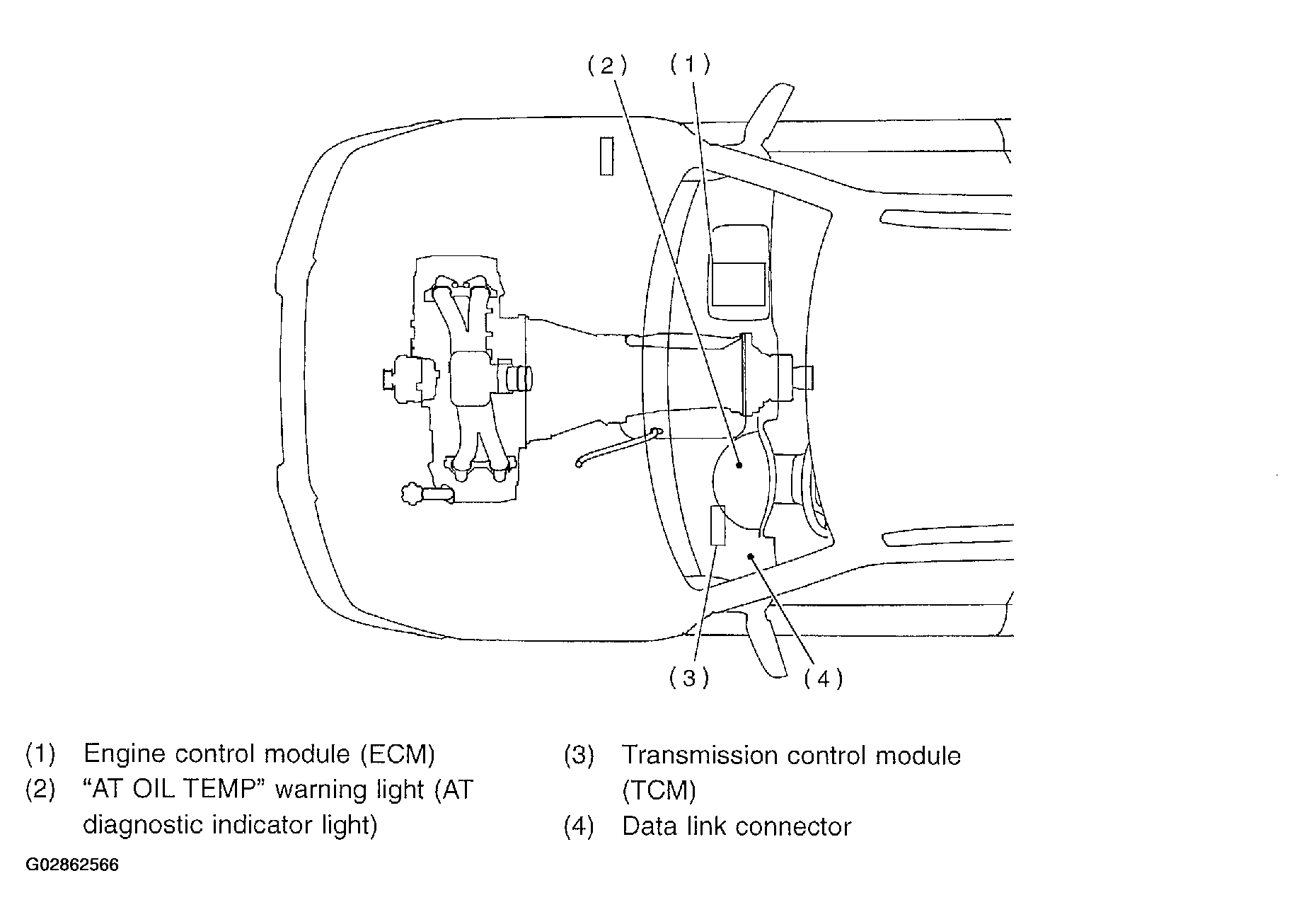

Fig 1: Identifying Control Module And Electrical Components Locations (1 Of 2)
G02862566Courtesy of SUBARU OF AMERICA, INC.

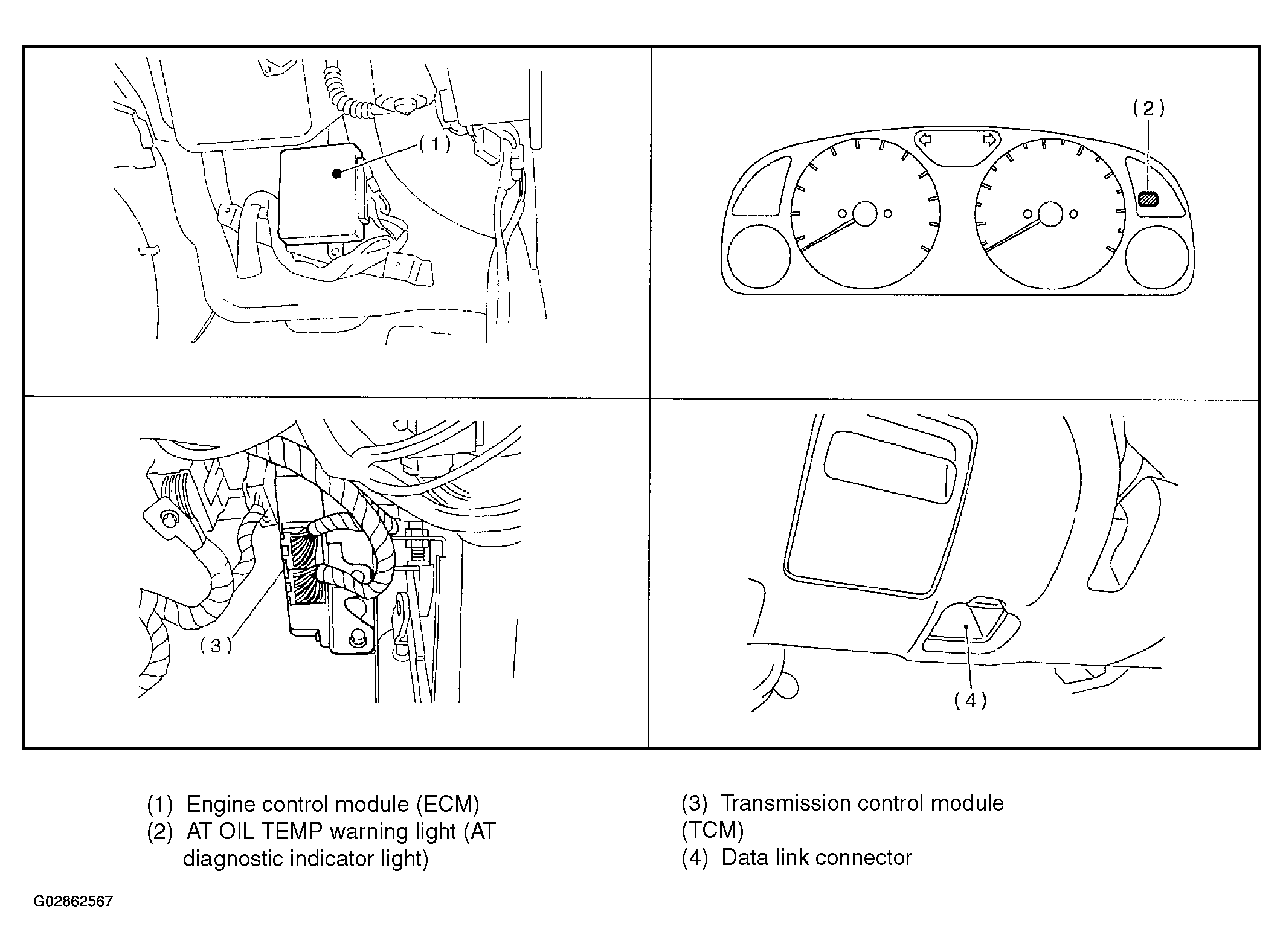

Fig 2: Identifying Control Module And Electrical Components Locations (2 Of 2)
G02862567Courtesy of SUBARU OF AMERICA, INC.
