Component Locations

COMPONENT LOCATIONS

Component	Location
Door Lock Actuators	Inside Door
Door Lock Switch	Inside Compartment Door Panels
Horn Relay	In Main Fuse Box Under Hood
Interrupt Relay	Behind Fuse Box, Left Side Of Engine Compartment
Keyless Entry Control Module	Below Left Side Of Dash
Main Fuse Box	Behind Dash, Left Of Steering Column
Passive Arm Connector	On Driver Side Front Lower Pillar, Near Wheel
Rear Gate Latch Switch	In Rear Gate
Security Control Module	Below Left Side Of Dash
Security Indicator Light	In Combination Meter

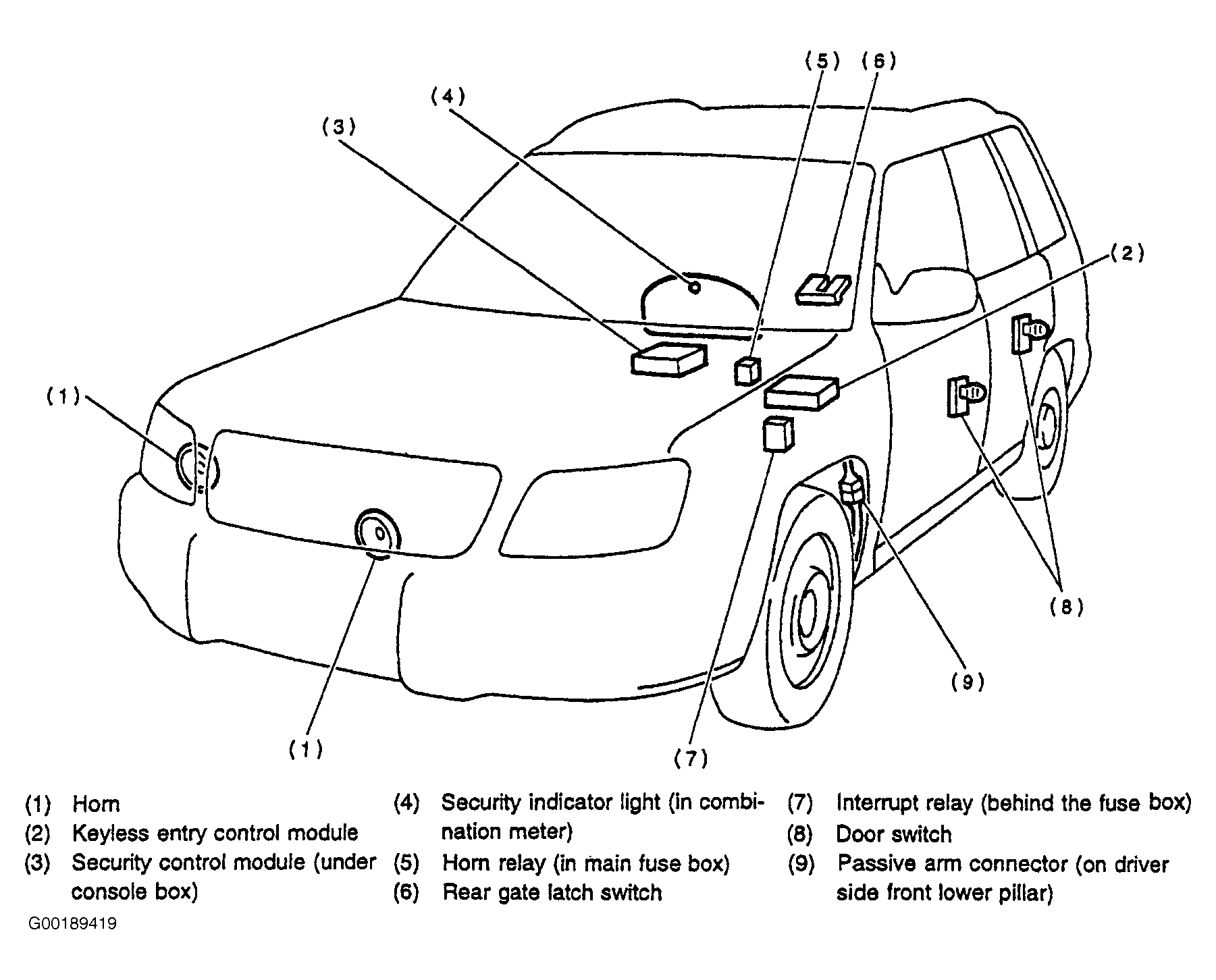

Fig 1: Locating Keyless Entry & Security System Components

Courtesy of SUBARU OF AMERICA, INC.

To locate other components not listed in this article, refer to COMPONENT LOCATIONS in POWER DOOR LOCKS & KEYLESS ENTRY SYSTEM - FORESTER article.
