Ignition Key Lock: Inspection

  1. Remove the instrument panel lower cover.
  2. Remove the lower column cover.
  3. Unfasten the hold-down clip which secures the harness and disconnect the connector of the ignition switch from the body harness.
  4. Turn the ignition key plate to each position and measure the ignition switch resistance.

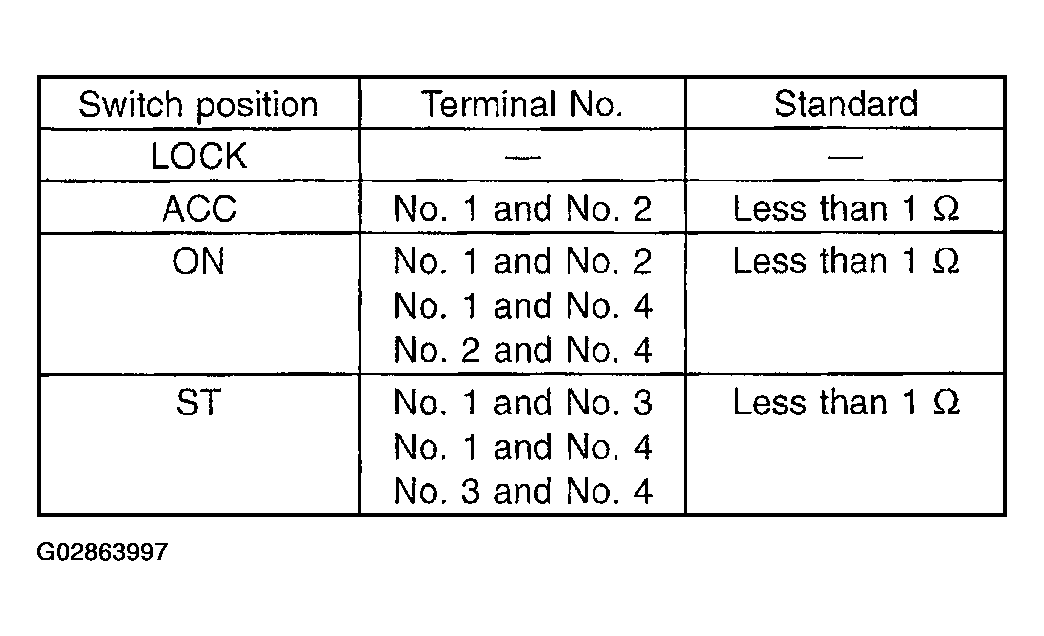

    Fig 1: Inspecting Ignition Key Lock
    G02863997Courtesy of SUBARU OF AMERICA, INC.

    If NG, replace the ignition switch.
