Interrupt Relay: Inspection

Measure interrupt relay resistance between terminals (indicated in the table below) when connecting the battery to terminals No. 1 and No. 4.

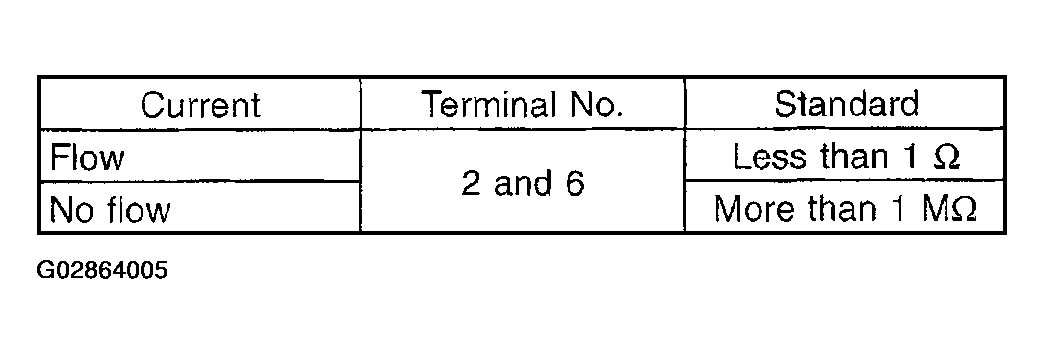

Fig 1: Interrupt Relay Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.

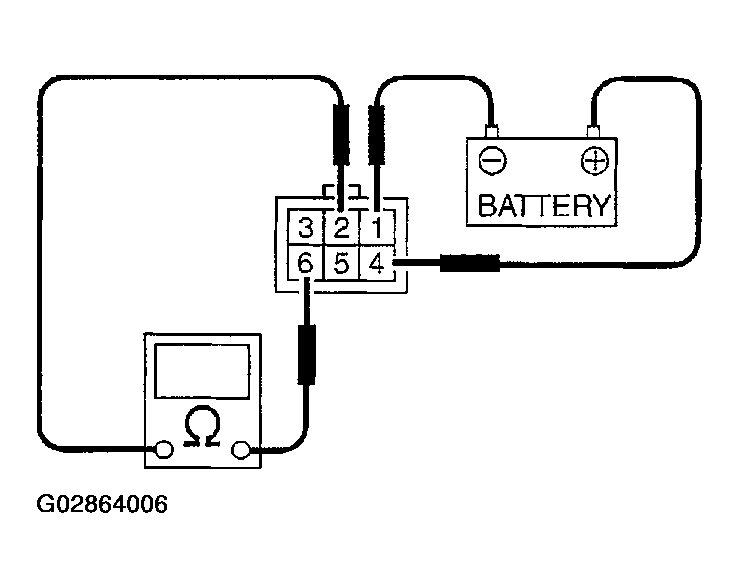

Fig 2: Measuring Interrupt Relay Between Terminals

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the interrupt relay.
