Electrical Specification

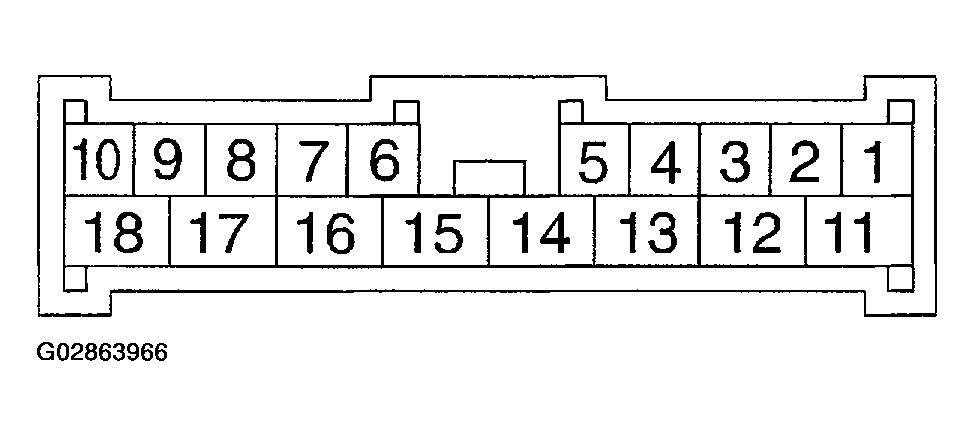

TERMINALS SPECIFICATIONS
| Content | Terminal No. | Measuring condition |
|---|---|---|
| Empty | 1 | - |
| Ignition switch (ON) | 2 (INPUT) | Battery voltage is present when ignition switch is turned ON. |
| Passive arm | 3 | - |
| Rear gate latch switch | 4 (INPUT) | 0 V is present when rear gate latch switch is turned ON. |
| Door switch | 5 (INPUT) | 0 V is present when any door is open. |
| Empty | 6 | - |
| Keyless entry control module | 7 | - |
| Keyless entry control module | 8 | - |
| Security indicator light | 9 (OUTPUT) | 0 V is present when activating the alarm operation. |
| Keyless entry control module | 10 | - |
| Power supply for clearance light (Back-up) | 11 | Battery voltage is constantly present. |
| Clearance light | 12 (OUTPUT) | Battery voltage is present when activating the alarm operation. |
| Power supply (Back-up) | 13 | Battery voltage is constantly present. |
| Ground | 14 | 0 V is constantly present. |
| Interrupt relay | 15 (OUTPUT) | Battery voltage is present when activating the alarm operation. |
