Console Box: Removal

  1. Remove shift knob and drive select lever (MT model).
  2. Remove console cover (A) and front cover (B).

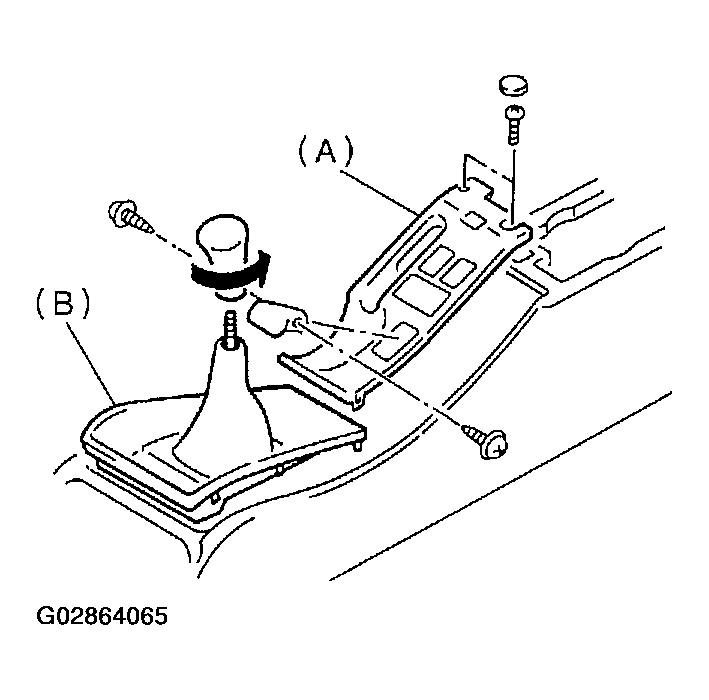

    Fig 1: Removing Console Cover & Front Cover
    G02864065Courtesy of SUBARU OF AMERICA, INC.
  3. Remove console box.

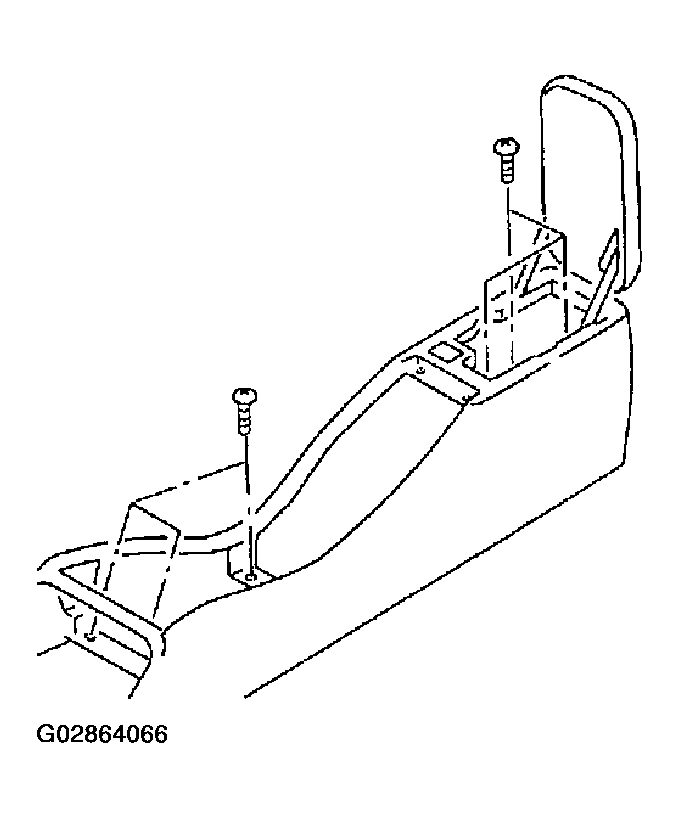

    Fig 2: Removing Console Box
    G02864066Courtesy of SUBARU OF AMERICA, INC.
