Instrument Panel Assembly: Installation

Install in the reverse order of removal.

CAUTION:
  • Be careful not to snag the harness.
  • Make sure to connect harness connector.
  • Take care not to scratch the instrument panel and related parts.
NOTE: When setting the instrument panel into position, push the two pins into grommet on the body panel.

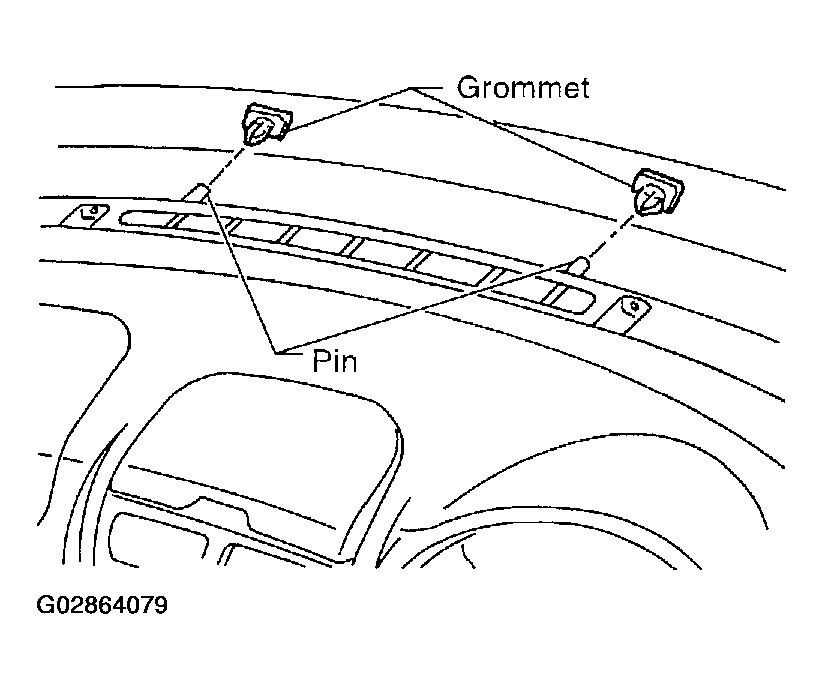

Fig 1: Installing Instrument Panel
G02864079Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

  1. Refer to INSTRUMENT PANEL  , COMPONENT, General Descriptions.
