Instrument Panel Assembly: Removal

Airbag system wiring harness is routed near combination meter.

1. Disconnect ground cable from battery.
2. Remove shift knob and drive select lever. (MT model)

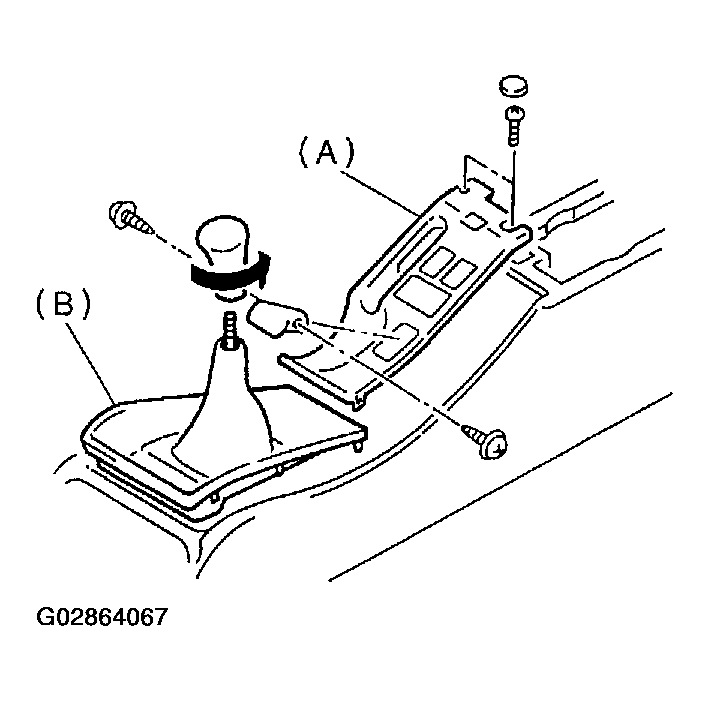

3. Remove console cover (A) and front cover (B).
   Fig 1: Removing Console Cover & Front Cover

   Courtesy of SUBARU OF AMERICA, INC.

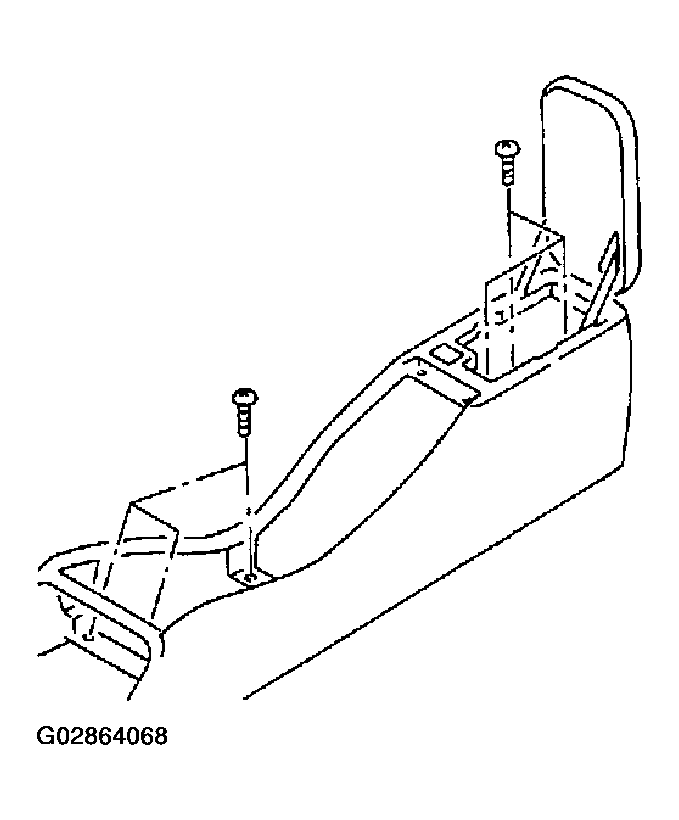

4. Remove console box.
   Fig 2: Removing Console Box

   Courtesy of SUBARU OF AMERICA, INC.

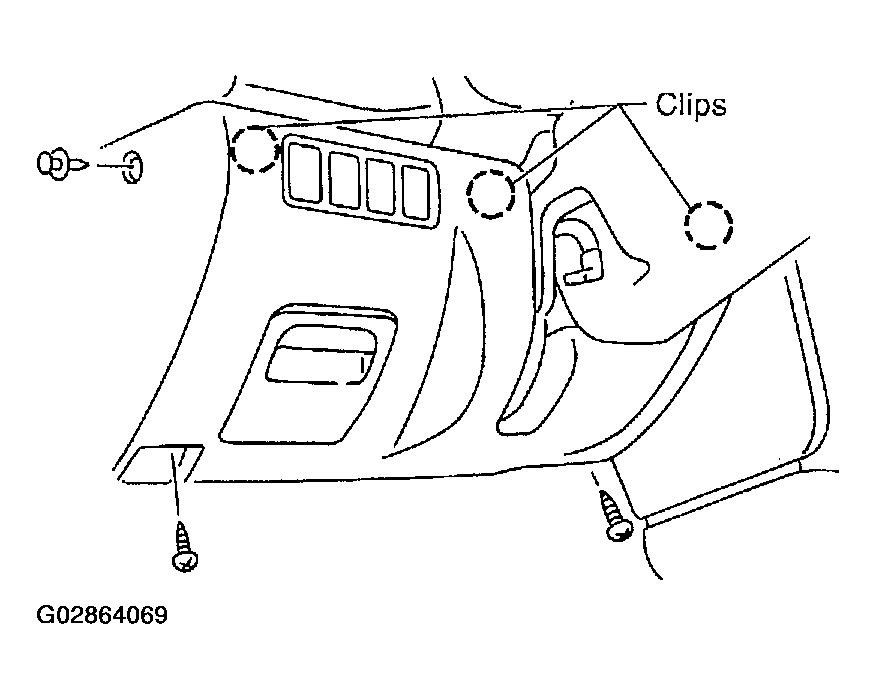

5. Remove lower cover and then disconnect connector.
   Fig 3: Removing Lower Cover

   Courtesy of SUBARU OF AMERICA, INC.

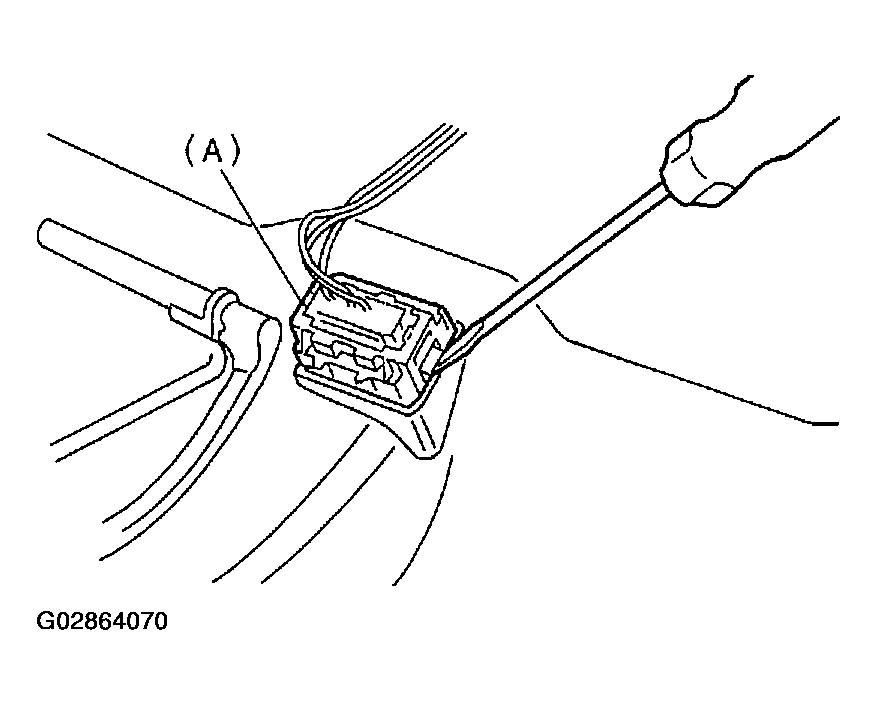

6. Disconnect data link connector (A) from lower cover.
   Fig 4: Disconnecting Data Link Connector From Lower Cover

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove knee panel.
   Fig 5: Removing Knee Panel

   Courtesy of SUBARU OF AMERICA, INC.

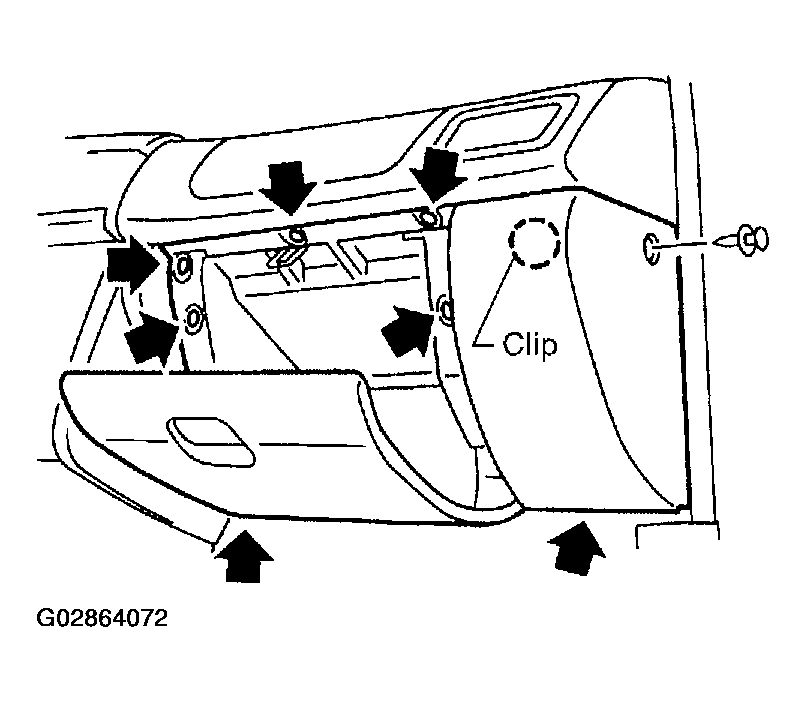

8. Remove glove box.
   Fig 6: Removing Glove Box

   Courtesy of SUBARU OF AMERICA, INC.
9. Remove center panel and disconnect connector.

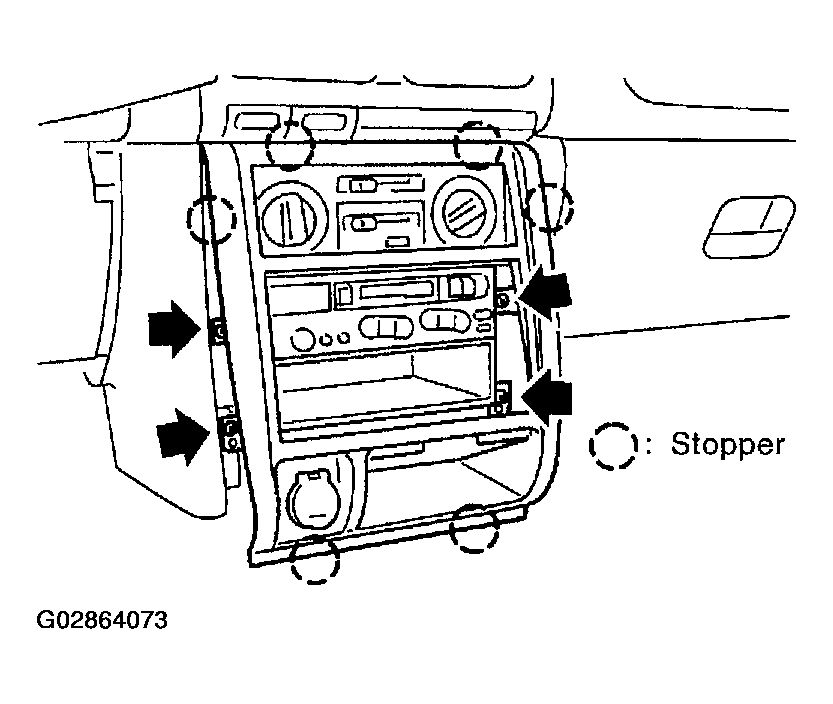

10. Remove audio.
    Fig 7: Removing Audio

    Courtesy of SUBARU OF AMERICA, INC.

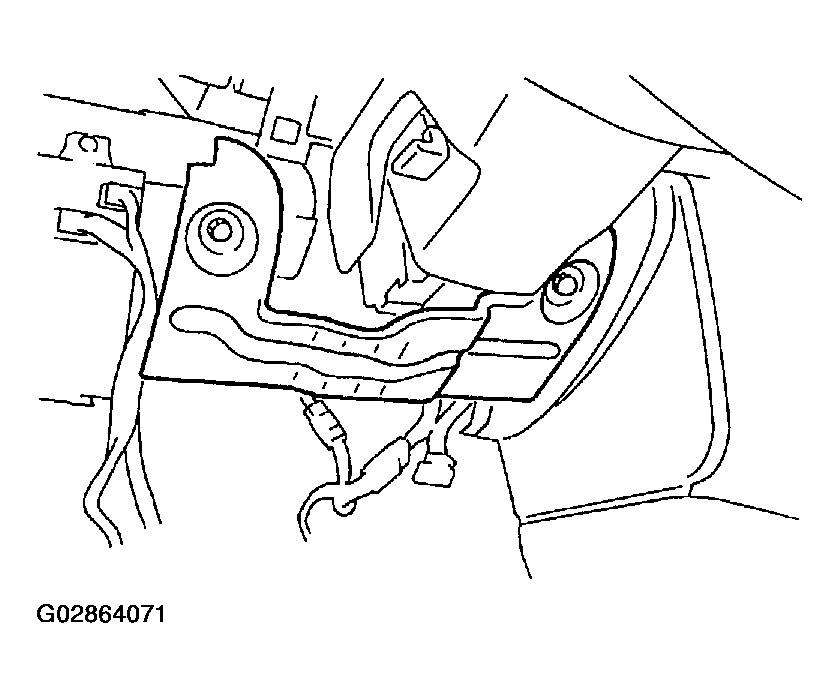

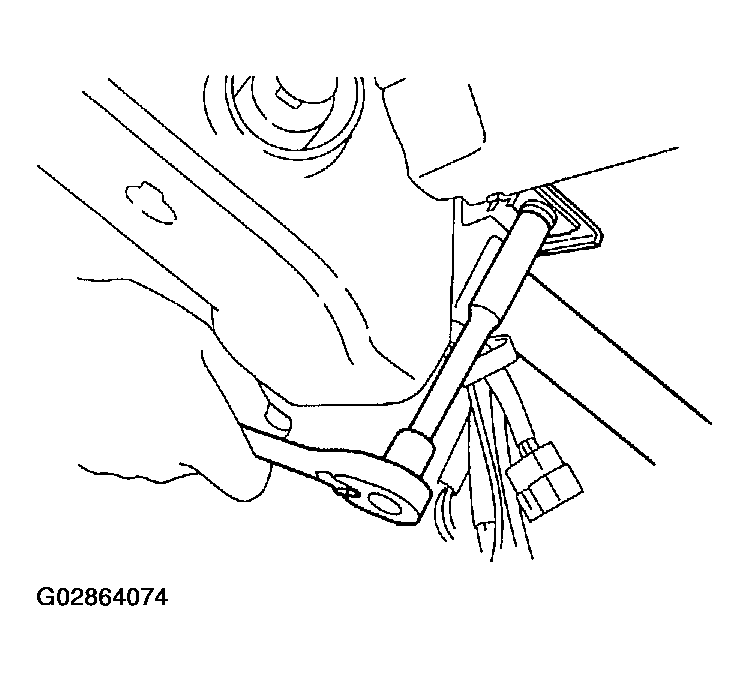

11. Remove two bolts and lower steering column.
    Fig 8: Removing Two Bolts & Lower Steering Column

    Courtesy of SUBARU OF AMERICA, INC.

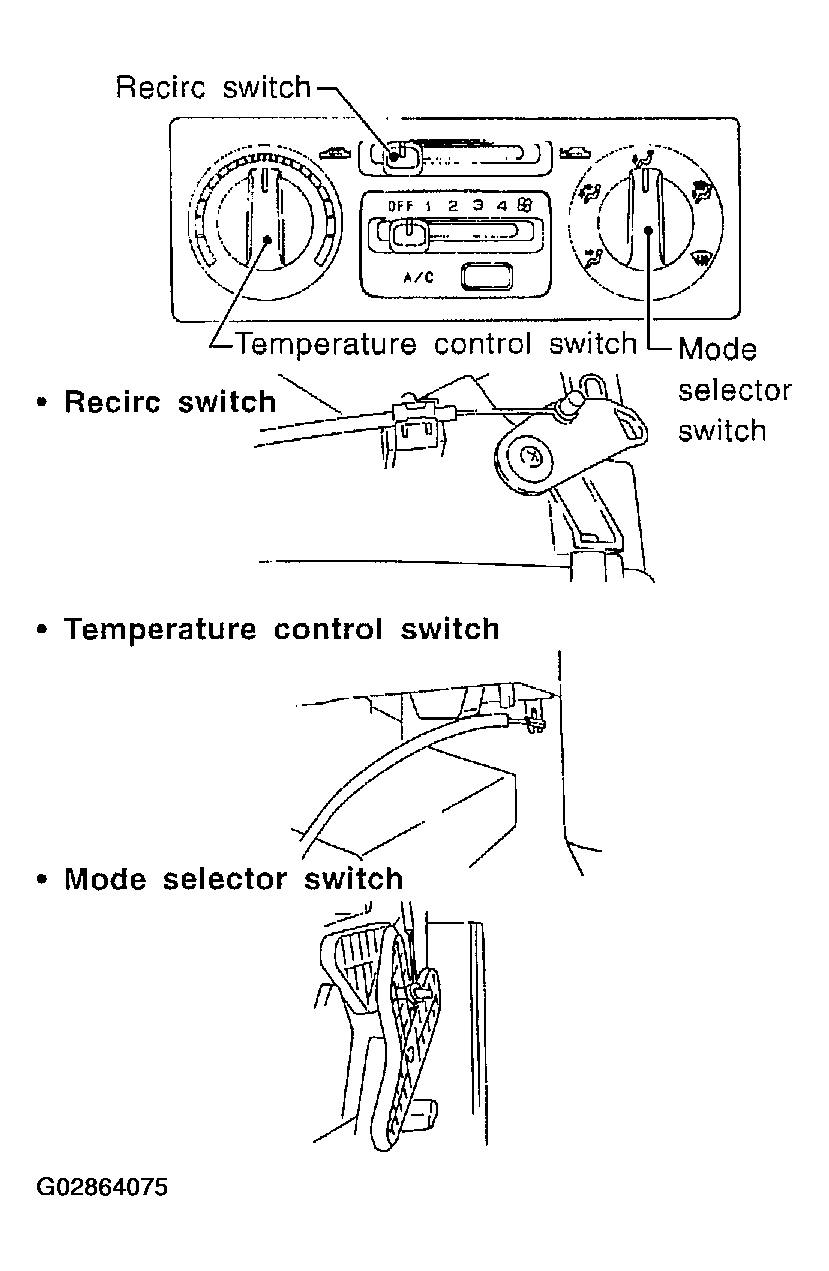

12. Set temperature control switch to "FULL HOT", mode selector switch to "DEF" position and recirc switch to "FRESH" position.
13. Disconnect temperature control cable and mode control cable from heater unit then disconnect recirc control cable from intake unit.
    NOTE: Do not move switches and link when installing.
    Fig 9: Disconnecting Temperature Control Cable & Mode Control Cable

    Courtesy of SUBARU OF AMERICA, INC.

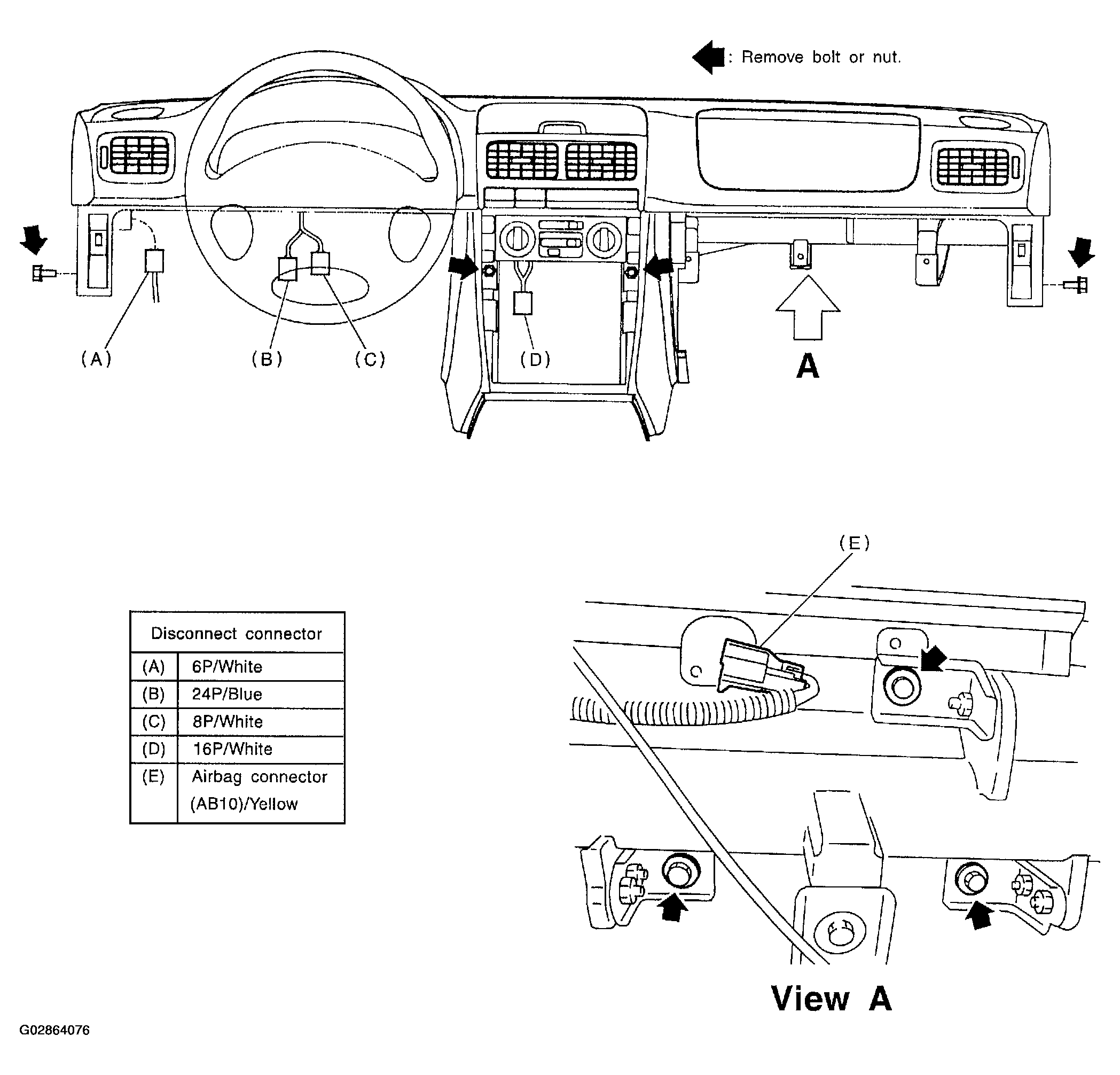

14. Disconnect harness connectors and then remove the installing bolts and nuts.
    CAUTION: Be sure to hold socket section and not harness when disconnecting.
    NOTE: Put matching mark, if necessary, for easy reassembly.
    Fig 10: Disconnecting Harness Connectors

    Courtesy of SUBARU OF AMERICA, INC.

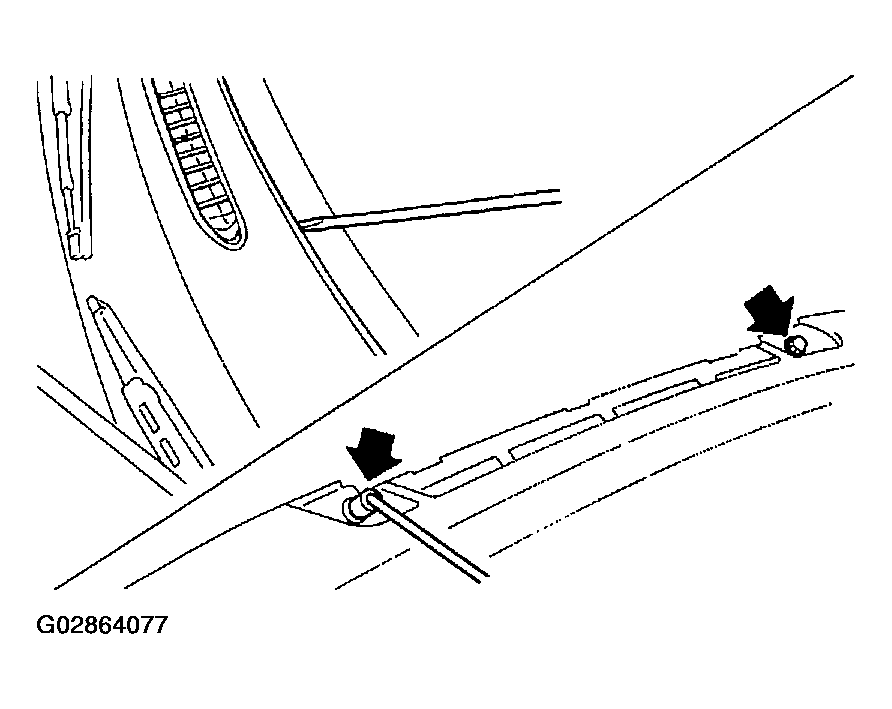

15. Remove front defroster grille and two bolts.
    Fig 11: Removing Front Defroster Grille & Two Bolts

    Courtesy of SUBARU OF AMERICA, INC.

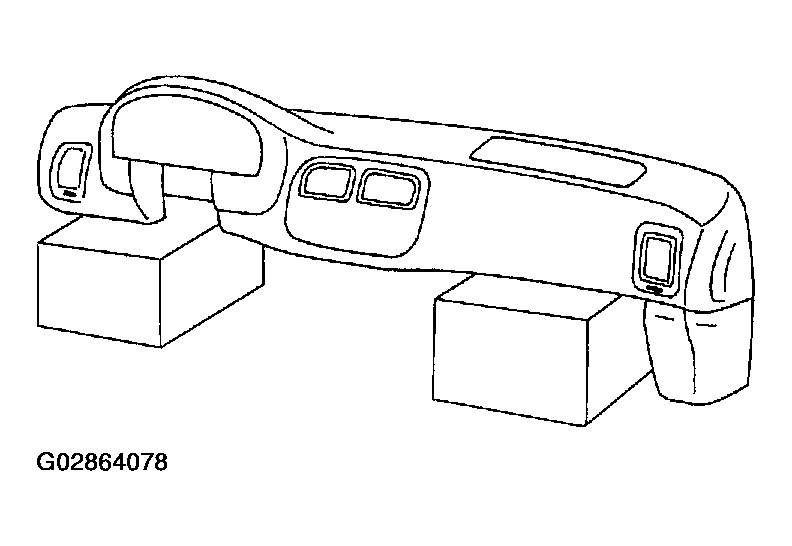

16. Remove instrument panel carefully from the body.
    CAUTION:

    • Do not pull the harness when disconnecting the connector.
    • Take care not to scratch the instrument panel and related parts.
    • When storing removed instrument panel with passenger airbag module, place it standing up on the floor.
    Fig 12: Removing Instrument Panel

    Courtesy of SUBARU OF AMERICA, INC.
