Rear Regulator and Motor Assembly: Removal

  1. Remove door trim. Refer to REMOVAL , Rear Door Trim.
  2. Remove sealing cover. Refer to REMOVAL , Rear Sealing Cover.
  3. Remove door glass. Refer to REMOVAL  , Rear Door Glass.
  4. Secure bolts using screwdriver to remove front sash adjusting nut.
    Fig 1: Securing Bolts Using Screwdriver
    G02863877Courtesy of SUBARU OF AMERICA, INC.
  5. Remove front sash.
  6. Disconnect electrical connector.
  7. Loosen four bolts and two nuts to remove regulator assembly.

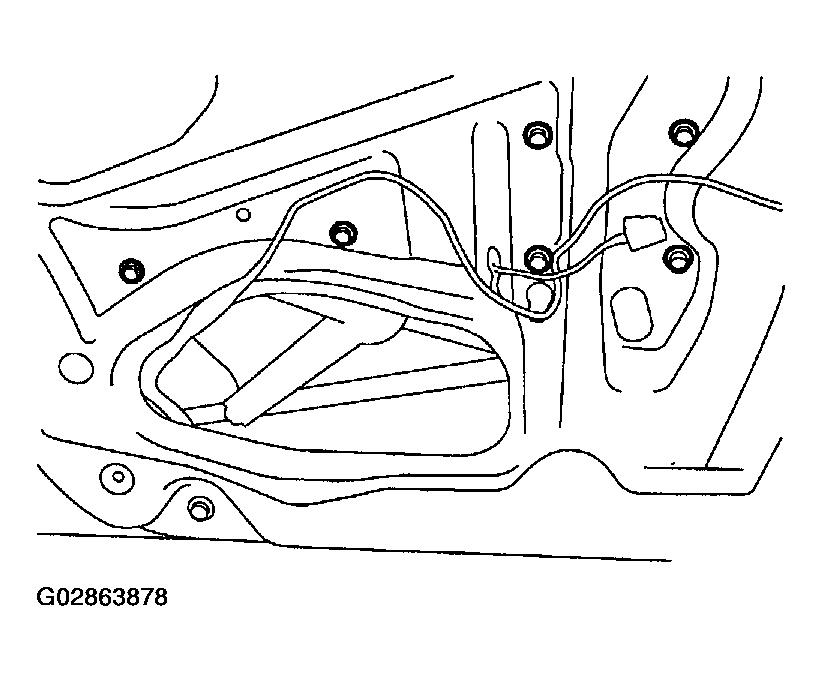

    Fig 2: Loosening Bolts & Nuts To Remove Regulator Assembly
    G02863878Courtesy of SUBARU OF AMERICA, INC.
  8. Loosen screws to remove motor assembly.

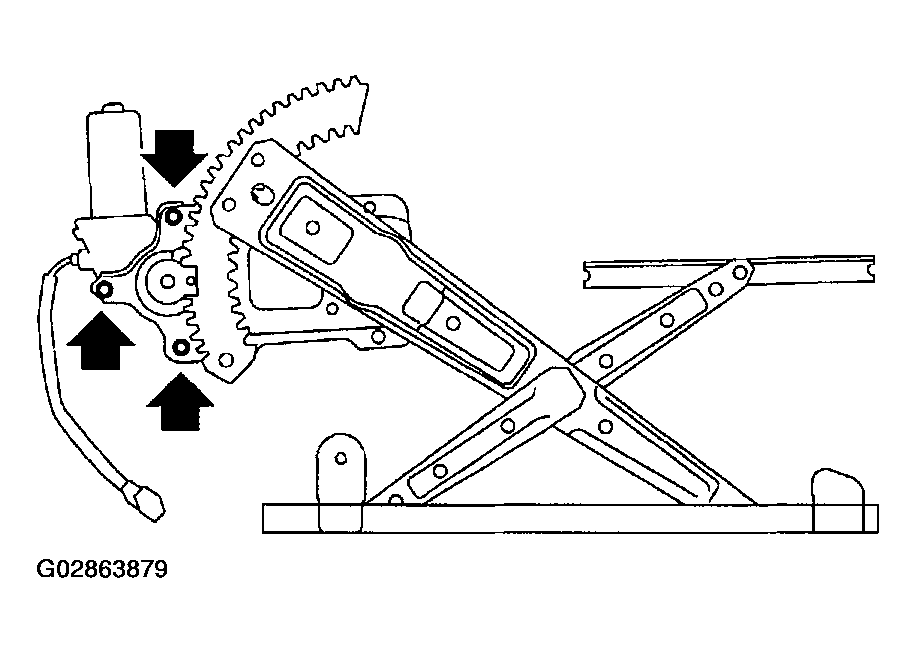

    Fig 3: Loosening Screws To Remove Motor Assembly
    G02863879Courtesy of SUBARU OF AMERICA, INC.
