Component Locations

COMPONENT LOCATIONS

Component	Location
Power Window Relay	Behind Dash, Above Left Kick Panel
Circuit Breaker	Behind Left Side Of Dash

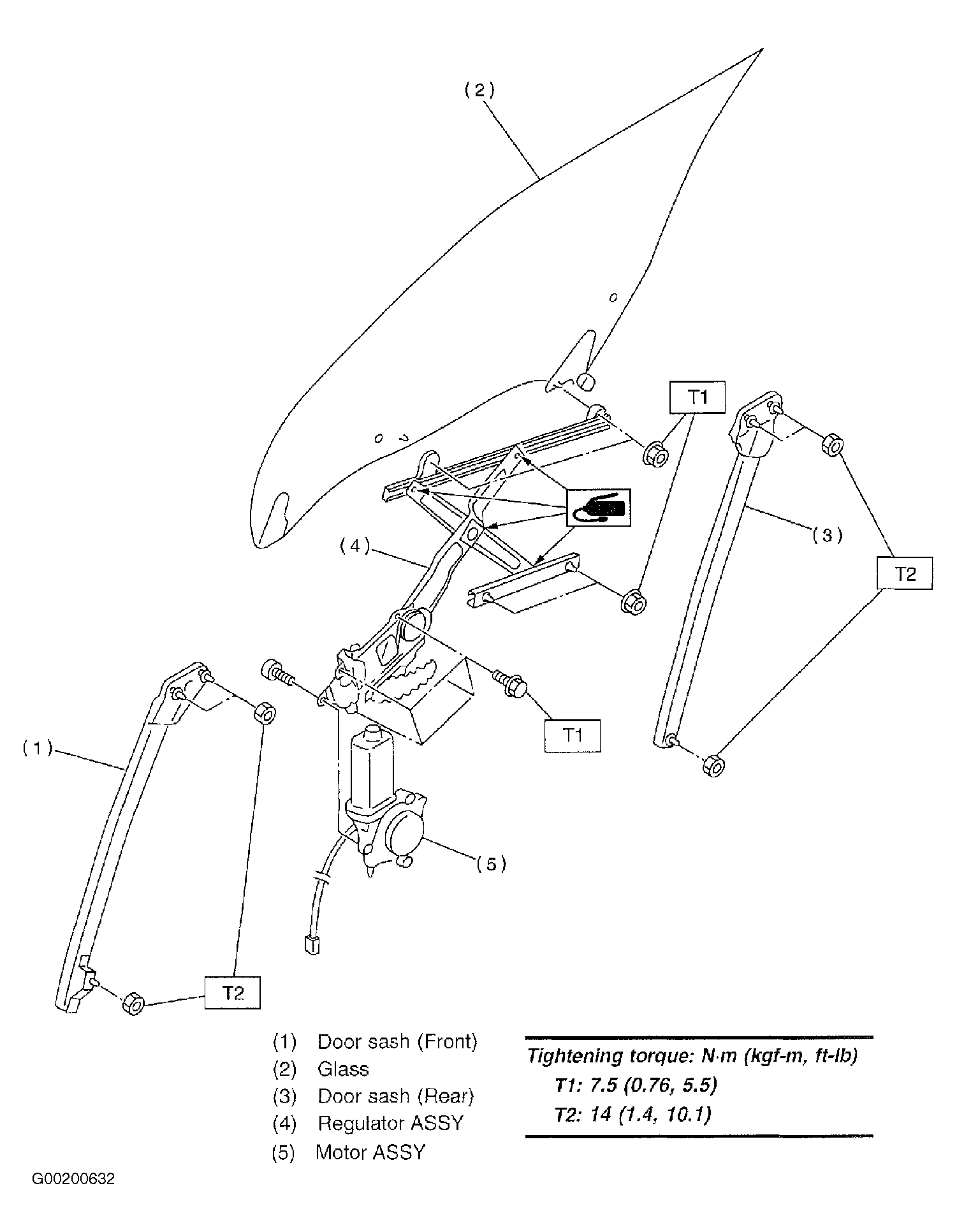

Fig 1: Exploded View Of Front Door Glass

Courtesy of SUBARU OF AMERICA, INC.

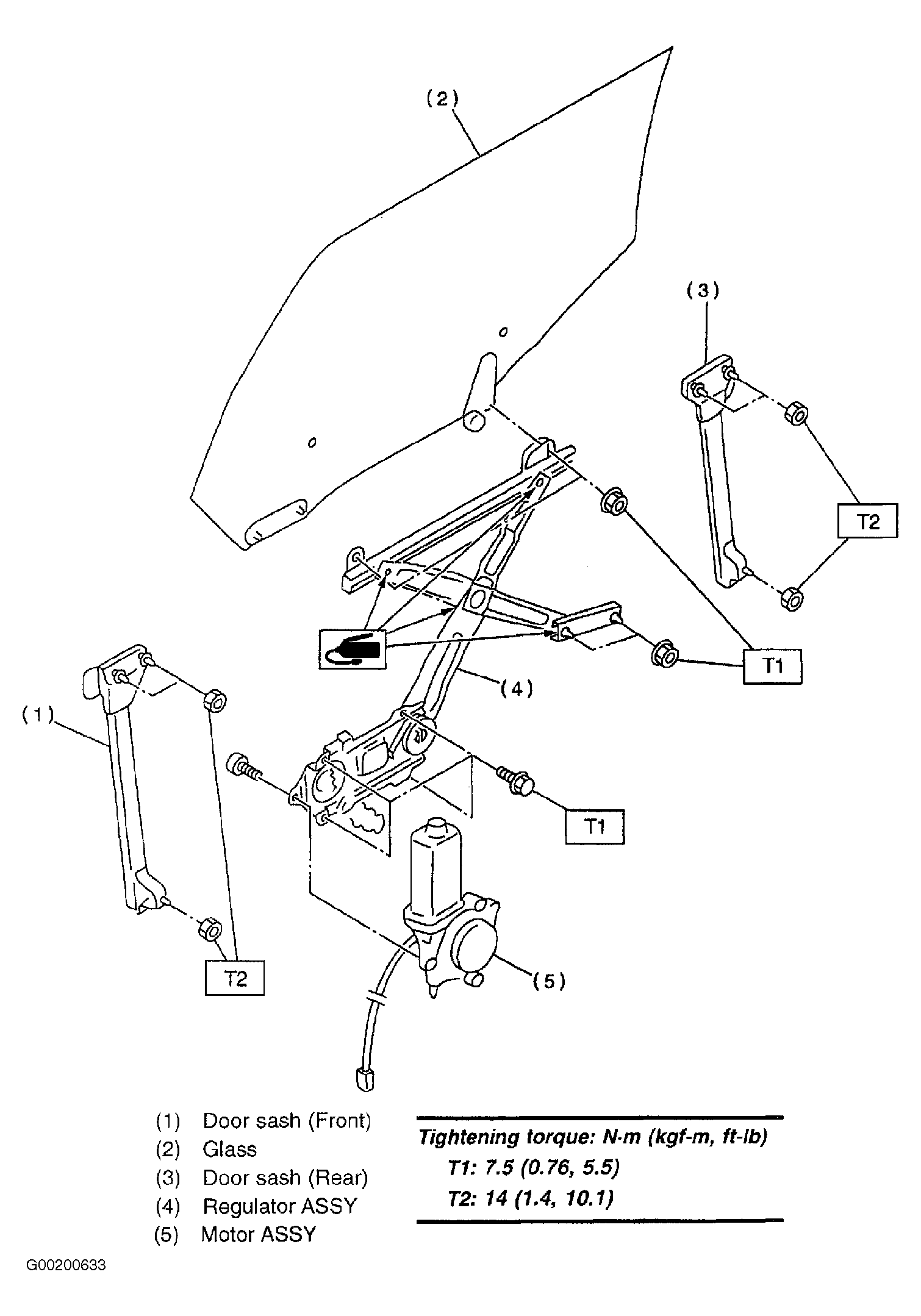

Fig 2: Exploded View Of Rear Door Glass

Courtesy of SUBARU OF AMERICA, INC.

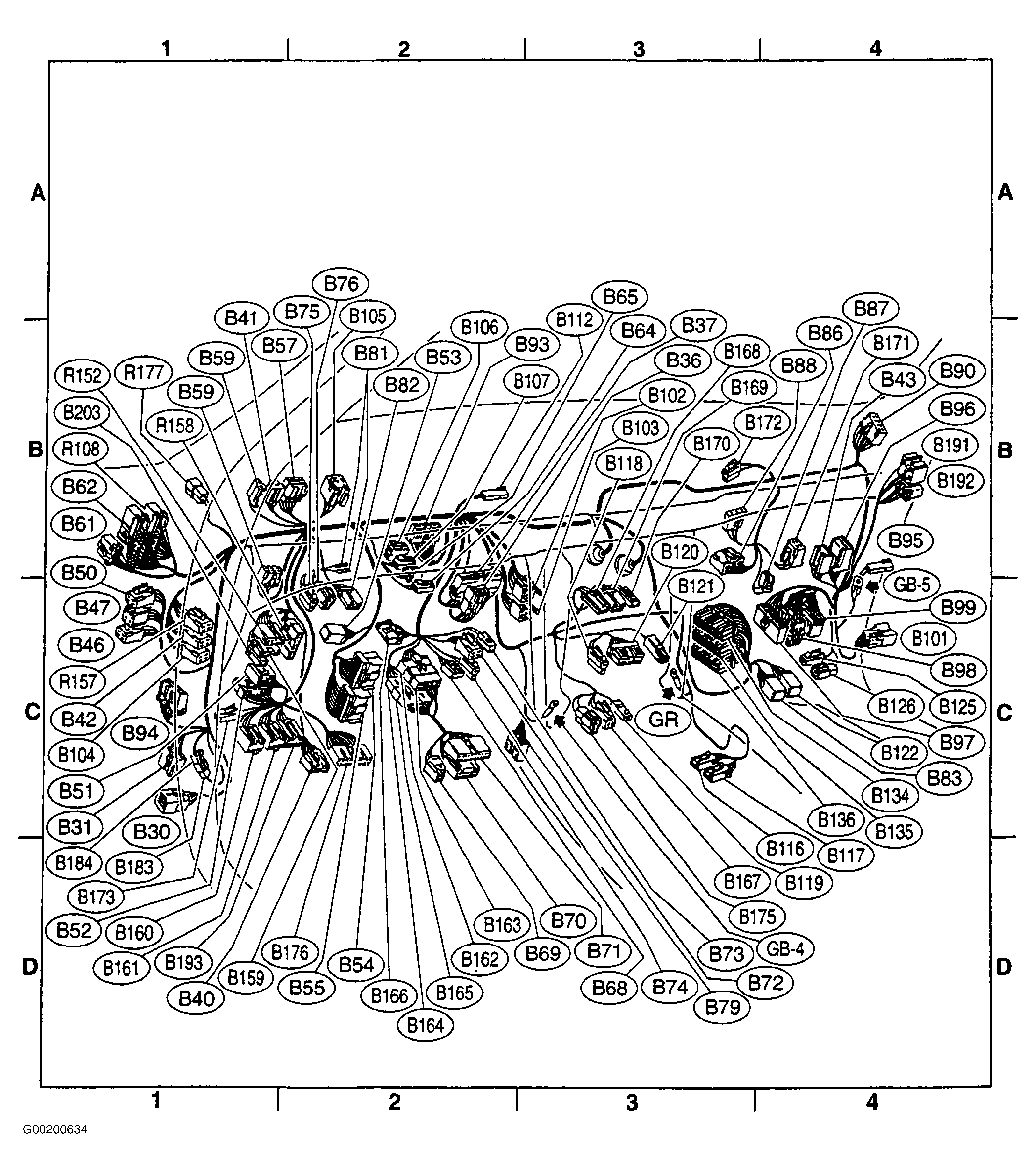

Fig 3: Locating Power Window Relay and Circuit Breaker (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

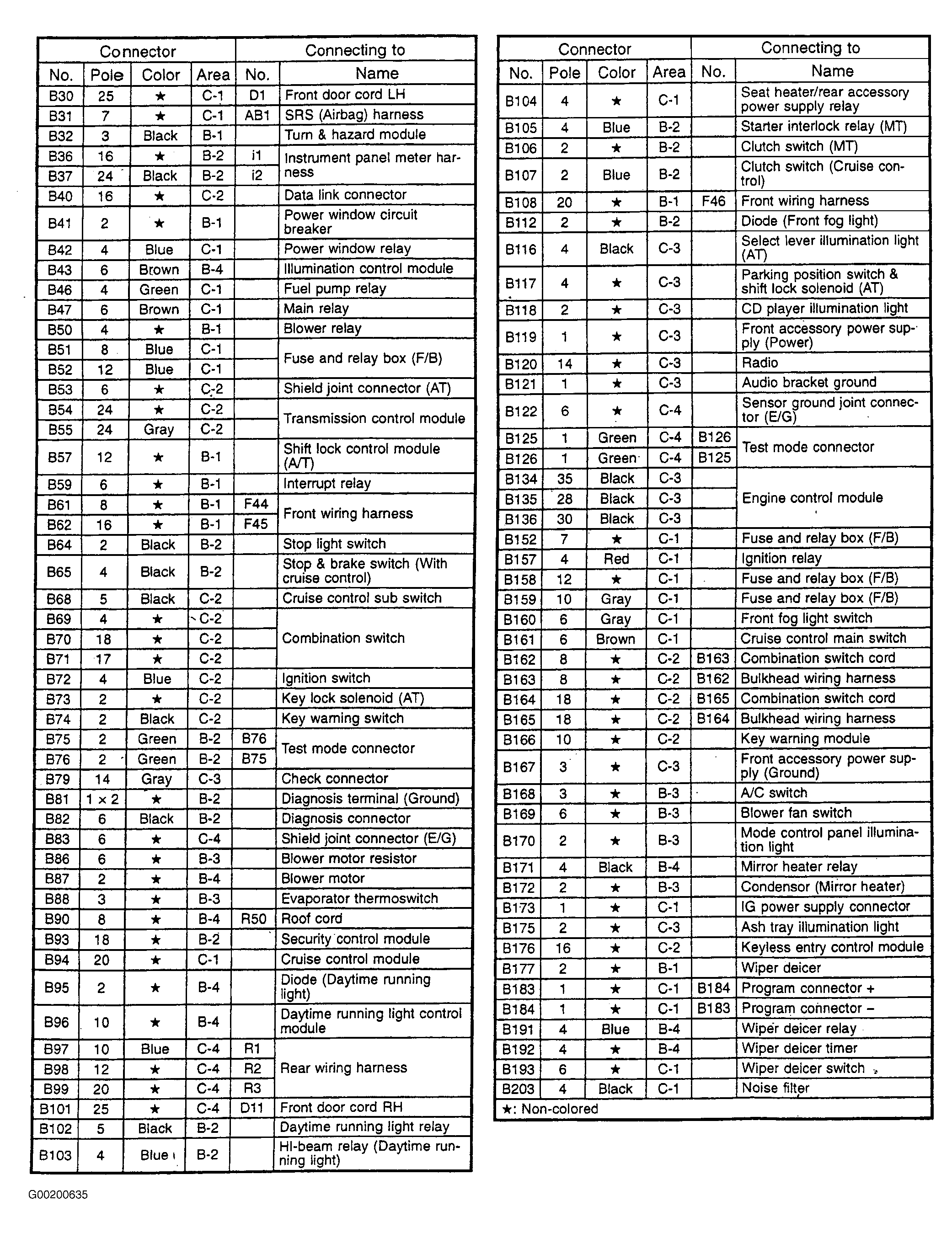

Fig 4: Locating Power Window Relay and Circuit Breaker (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
