Outer Mirror Assembly

Remove front door trim. See DOOR TRIM under REMOVAL & INSTALLATION.
Pull off sealing cover to disconnect mirror electrical connector. See Fig 1 .
Loosen screws to remove mirror assembly. See Fig 2 .
Install in reverse order of removal procedure.

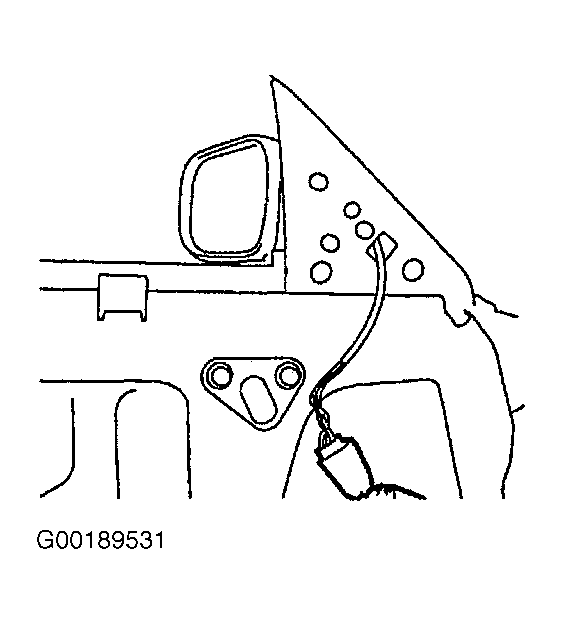

Fig 1: Disconnecting Outer Mirror Electrical Connector

G00189531

Courtesy of SUBARU OF AMERICA, INC.

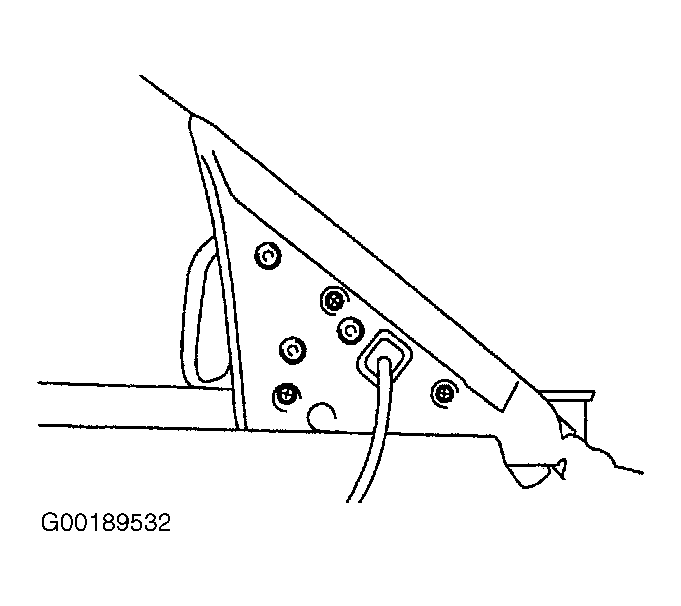

Fig 2: Locating Outer Mirror Assembly Screws

G00189532

Courtesy of SUBARU OF AMERICA, INC.
