Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Removal & Installation >> Power Window Control Switch >> Main Switch

Main Switch

  1. Release two switch panel hooks (A) to remove power window main switch. See Fig 1 .
  2. Disconnect electrical connector from power window main switch.
  3. Install in reverse order of removal procedure.

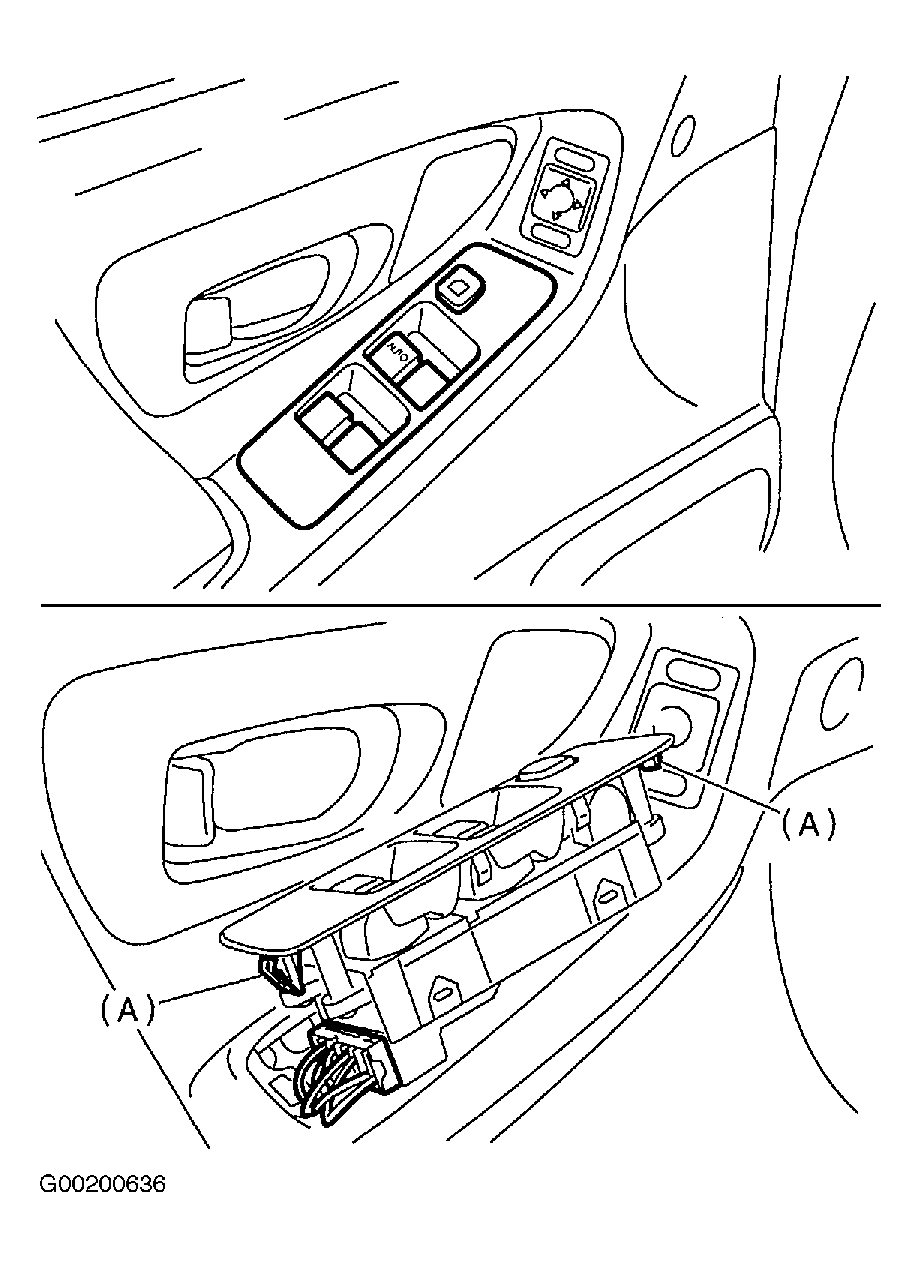

Fig 1: Removing Power Window Control Main Switch
G00200636Courtesy of SUBARU OF AMERICA, INC.
