Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs >> G Sensor >> Removal

G Sensor: Removal

  1. Disconnect battery ground cable.

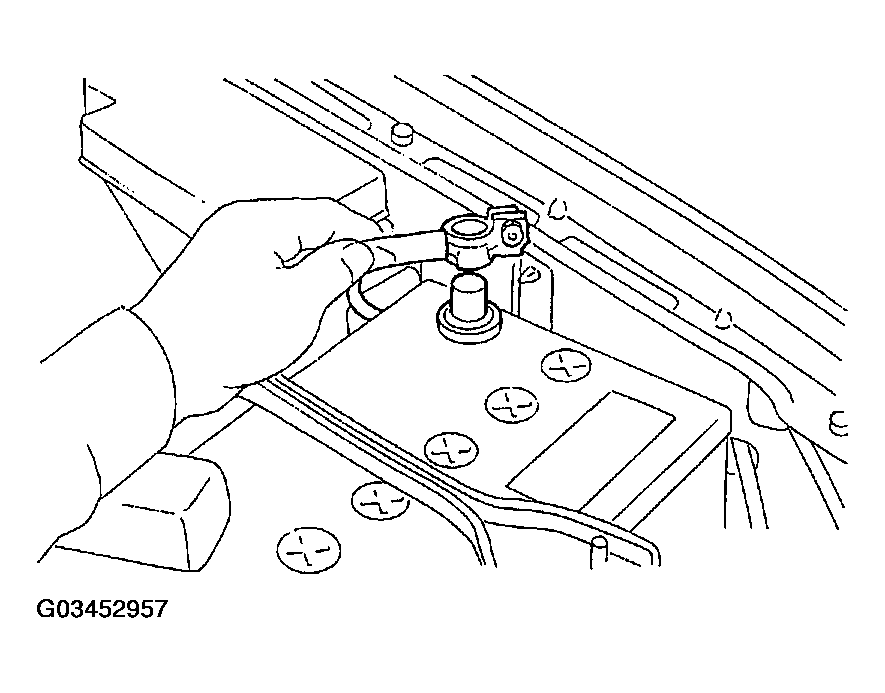

    Fig 1: Disconnecting Battery Ground Cable
    G03452957Courtesy of SUBARU OF AMERICA, INC.
  2. Remove console cover.

    < Ref. to CONSOLE BOX . >

  3. Disconnect connector from G sensor.
  4. Remove G sensor from body.
    CAUTION: Do not drop or bump G sensor.
    Fig 2: Removing Console Cover
    G03452958Courtesy of SUBARU OF AMERICA, INC.
