Sensor Gap

Clearances (sensor gaps) should be measured one by one to ensure tone wheel and speed sensor are installed correctly.

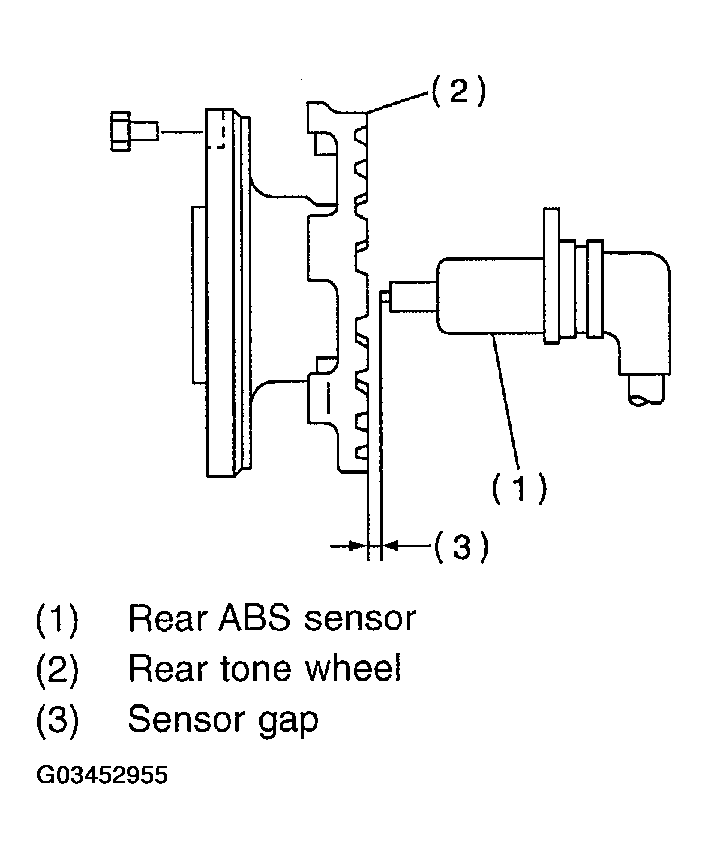

Fig 1: Identifying Sensor Gap Dimensions
G03452955Courtesy of SUBARU OF AMERICA, INC.

ABS sensor clearance:

  1. 0.7 - 1.2 mm (0.028 - 0.047 in)
NOTE:
  • If clearance is narrow, adjust by using a spacer (Part No. 26755AA000).
  • If clearance is wide, check the outputted voltage then replace ABS sensor or tone wheel if the out-putted voltage is outside the specification.
