Rear ABS Sensor: Removal

  1. Set vehicle on a lift.
  2. Disconnect battery ground cable.
  3. Loosen wheel nuts.
  4. Lift vehicle, and remove wheels.
  5. Remove rear seat and disconnect rear ABS sensor connector.
  6. Remove rear sensor harness bracket from rear trailing link and bracket.
  7. Remove rear ABS sensor from rear back plate.

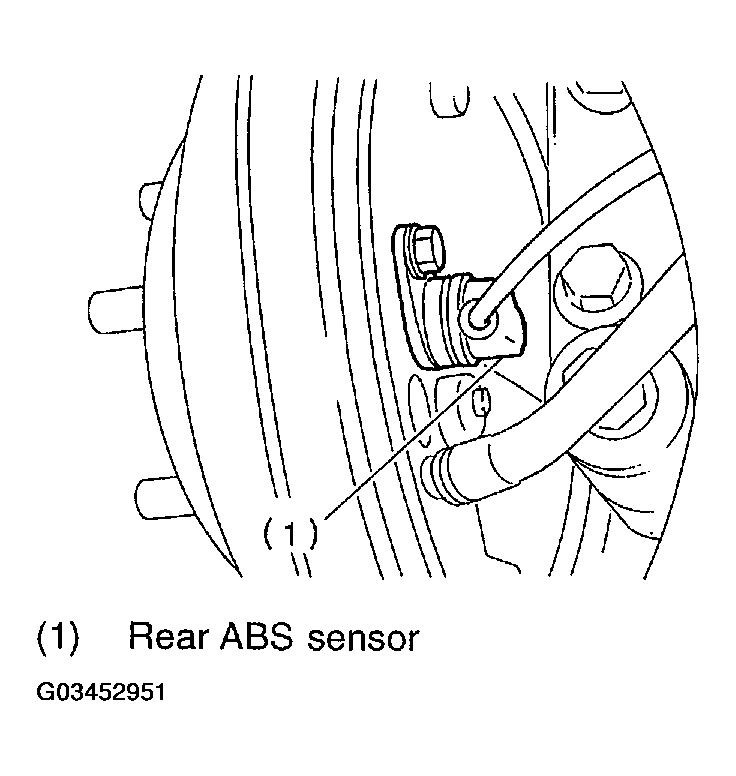

    Fig 1: Removing Rear ABS Sensor From Rear Back Plate
    G03452951Courtesy of SUBARU OF AMERICA, INC.
