Vehicle Speed Sensor: Operation

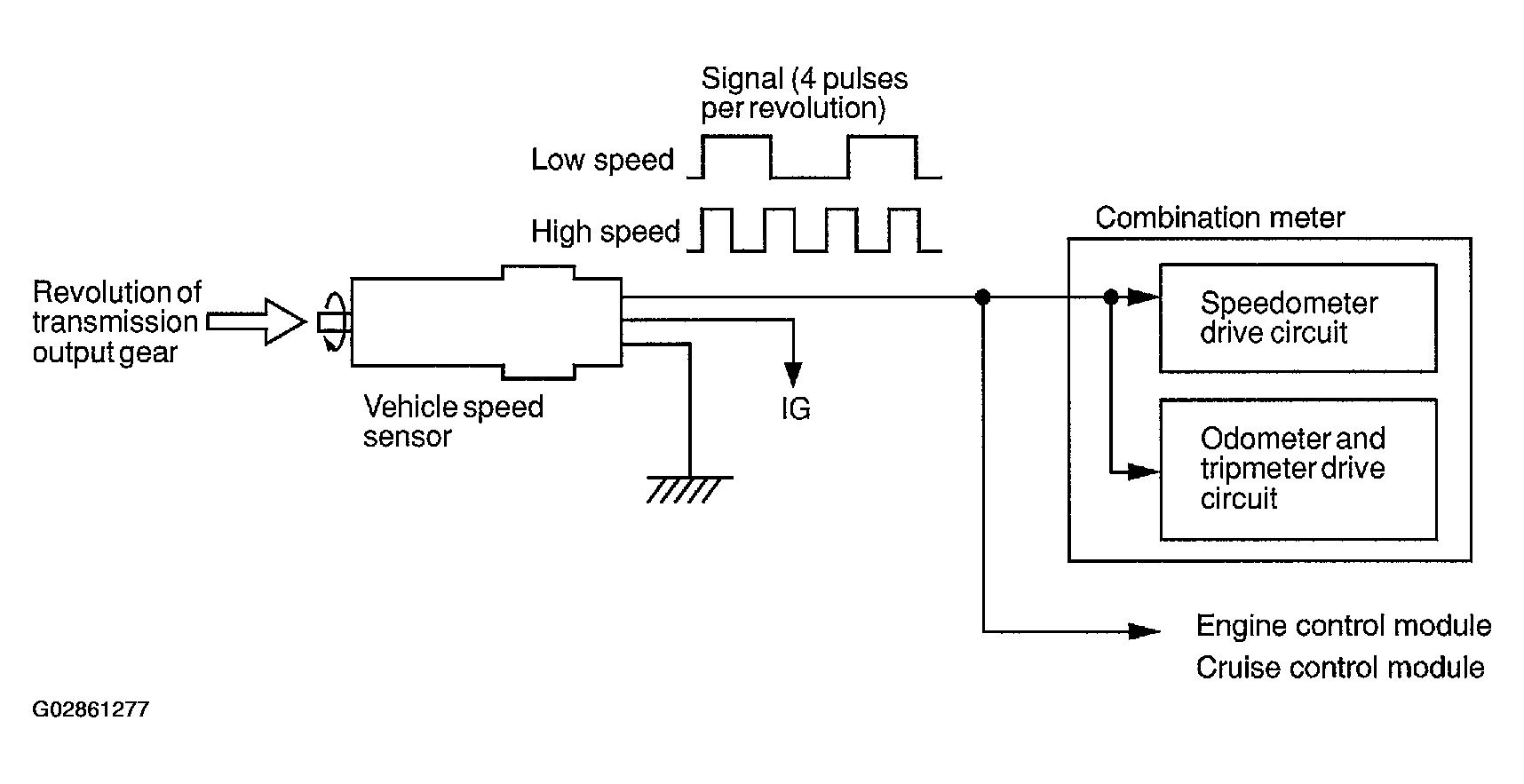

As the driven key rotates, the magnet turns causing the magnetic field of the Hall IC to change.
The Hall IC generates a signal that corresponds to a change in the magnetic field.
One turn of the driven key in the speed sensor sends 4 pulses to the combination meter, engine control module and cruise control module.
