Cooling Fan: Cooling: Radiator: Installation

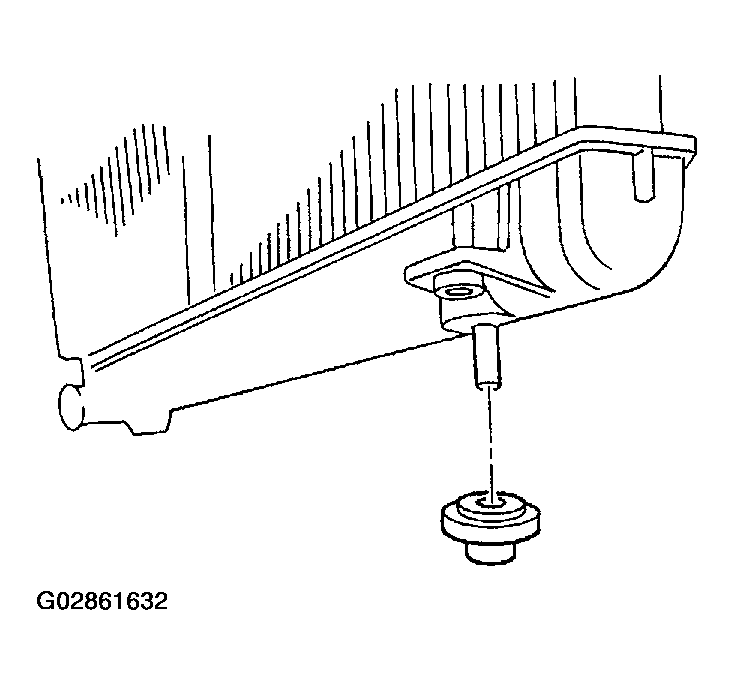

Attach radiator mounting cushions to pins on the lower side of radiator.

Fig 1: Attaching Radiator Mounting Cushions To Pins On Lower Side Of Radiator
Courtesy of SUBARU OF AMERICA, INC.
Install radiator while fitting radiator pins to cushions.
NOTE: Fit pins on lower side of radiator into cushions on body side.

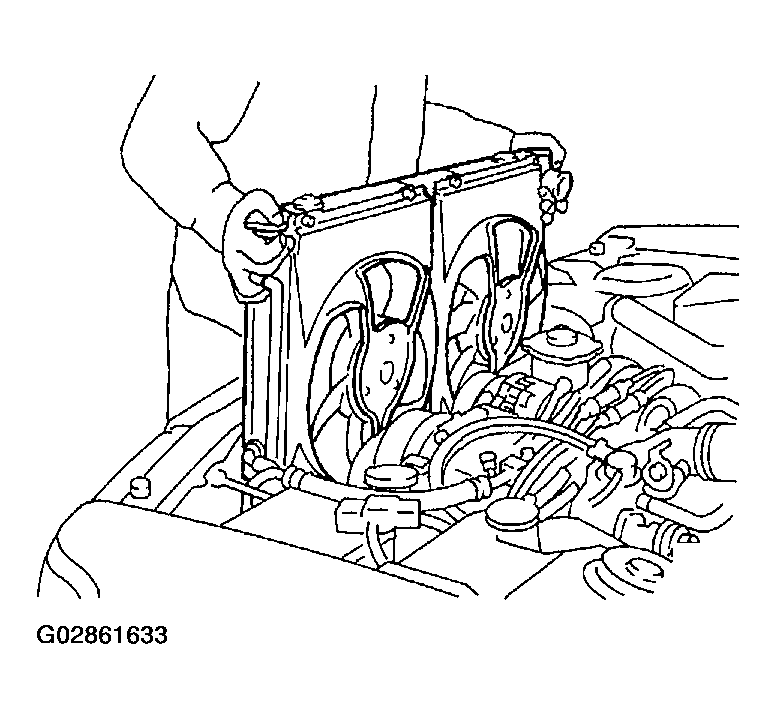

Fig 2: Installing Radiator While Fitting Radiator Pins To Cushions
Courtesy of SUBARU OF AMERICA, INC.

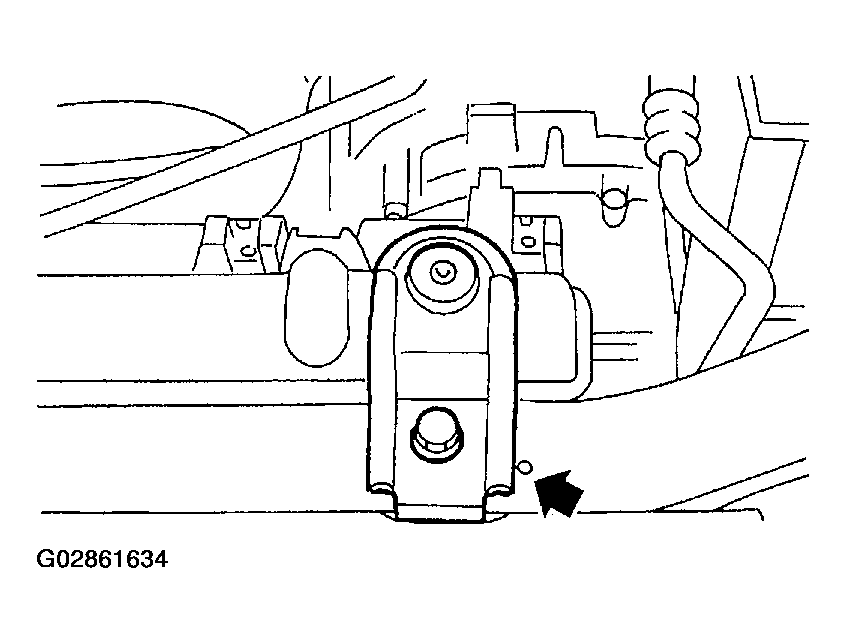

Install radiator brackets and tighten bolts.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

Fig 3: Installing Radiator Brackets
Courtesy of SUBARU OF AMERICA, INC.

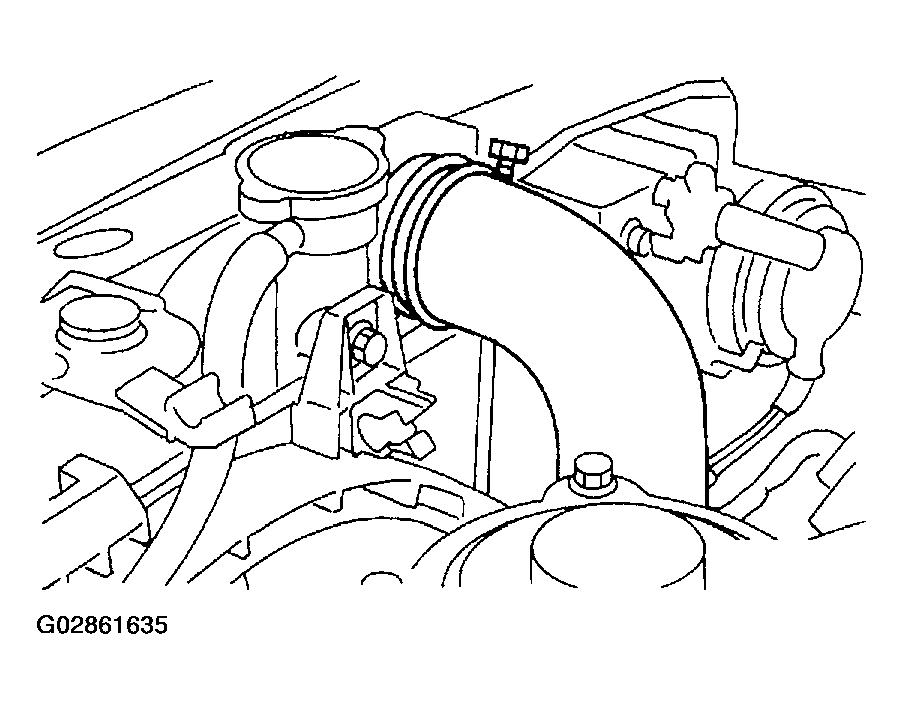

Connect radiator inlet hose.

Fig 4: Connecting Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Install reservoir tank.
Tightening torque: 4.9 N.m (0.50 kgf-m, 3.6 ft-lb)

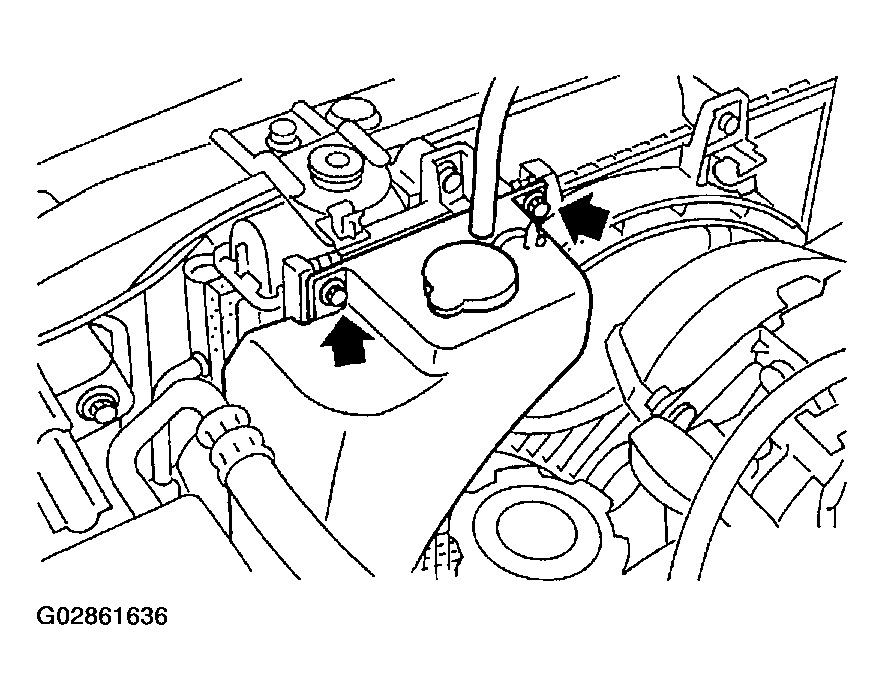

Fig 5: Installing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.

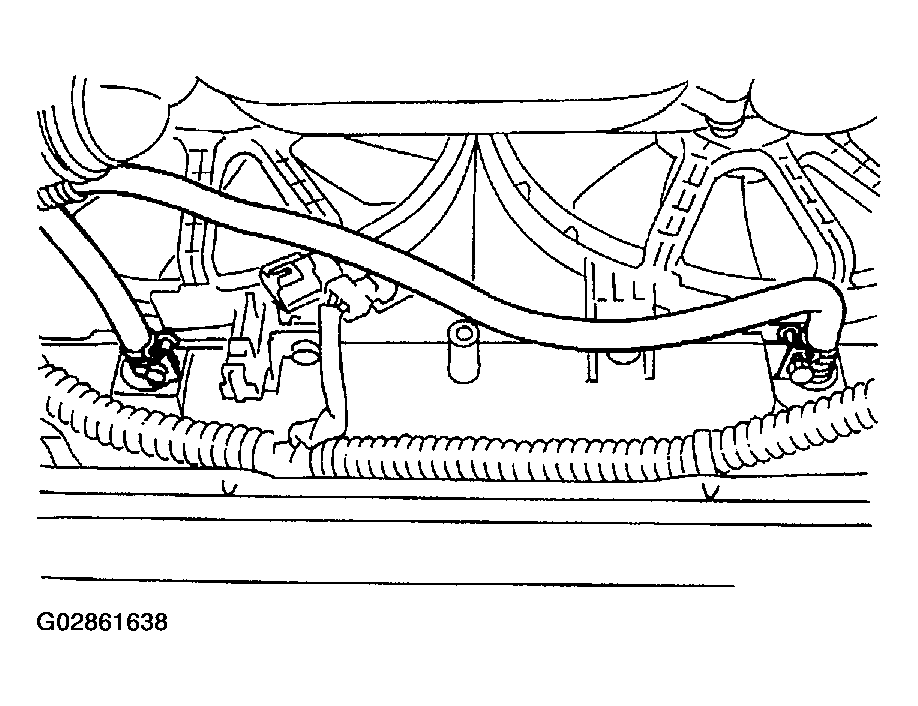

Attach ATF cooler hose to a clip under the radiator main fan shroud. (AT vehicles only)

Fig 6: Attaching ATF Cooler Hose To A Clip Under Radiator Main Fan Shroud
Courtesy of SUBARU OF AMERICA, INC.

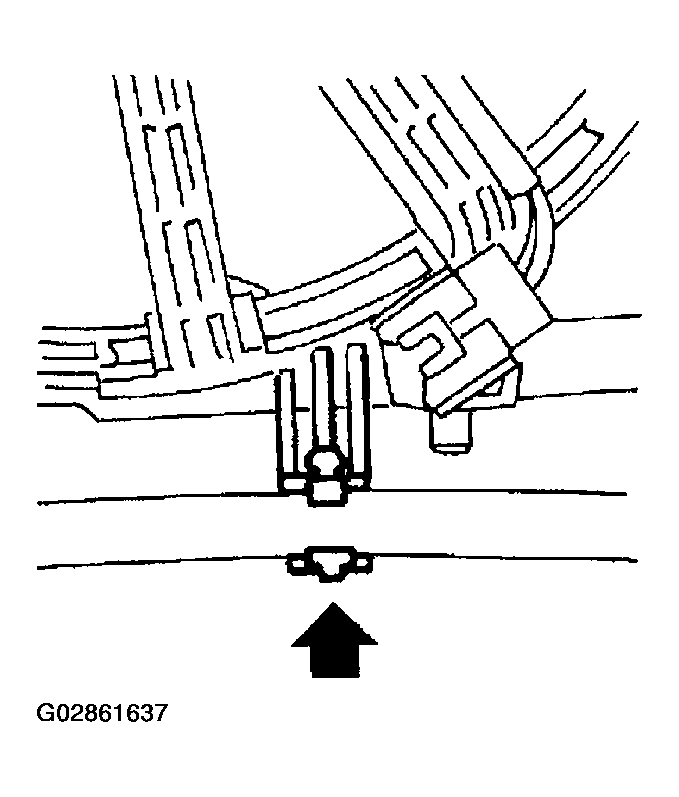

Connect ATF cooler hoses. (AT vehicles only)

Fig 7: Connecting ATF Cooler Hoses
Courtesy of SUBARU OF AMERICA, INC.

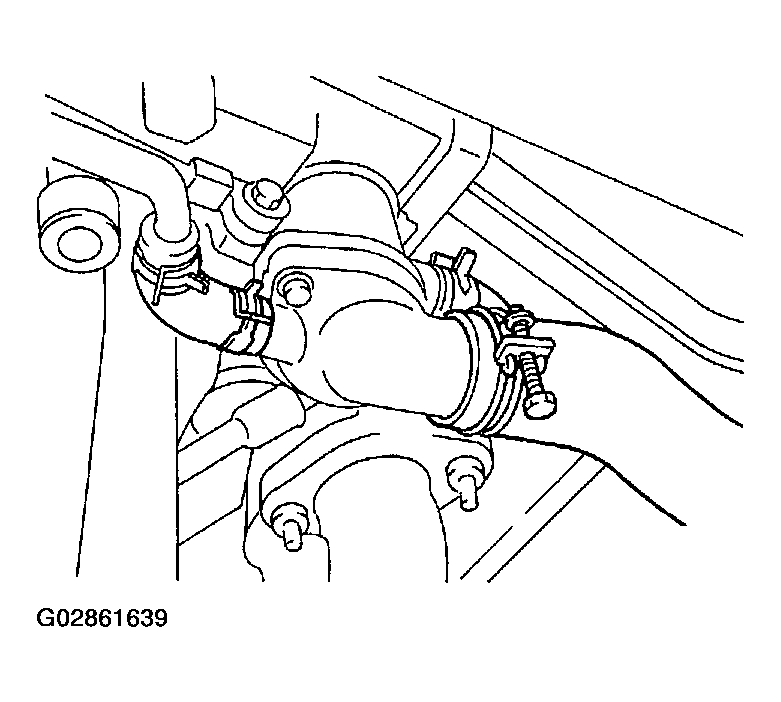

Connect radiator outlet hose.

Fig 8: Connecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.

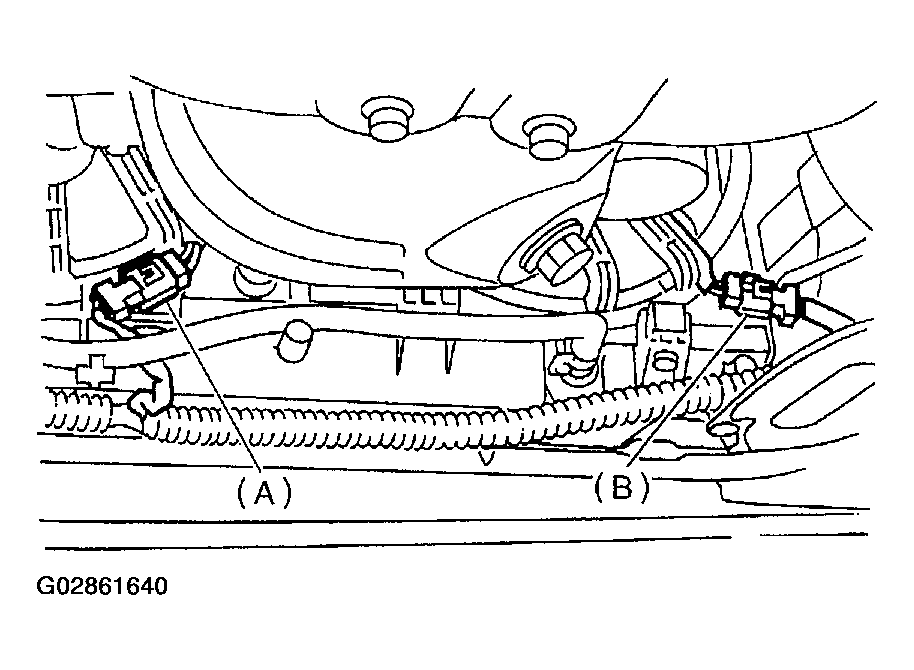

Connect connectors to radiator main fan motor (A) and sub fan motor (B).

Fig 9: Connecting Connectors To Radiator Main Fan Motor And Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Install under cover.
Lower the vehicle.
Install V-belt covers.

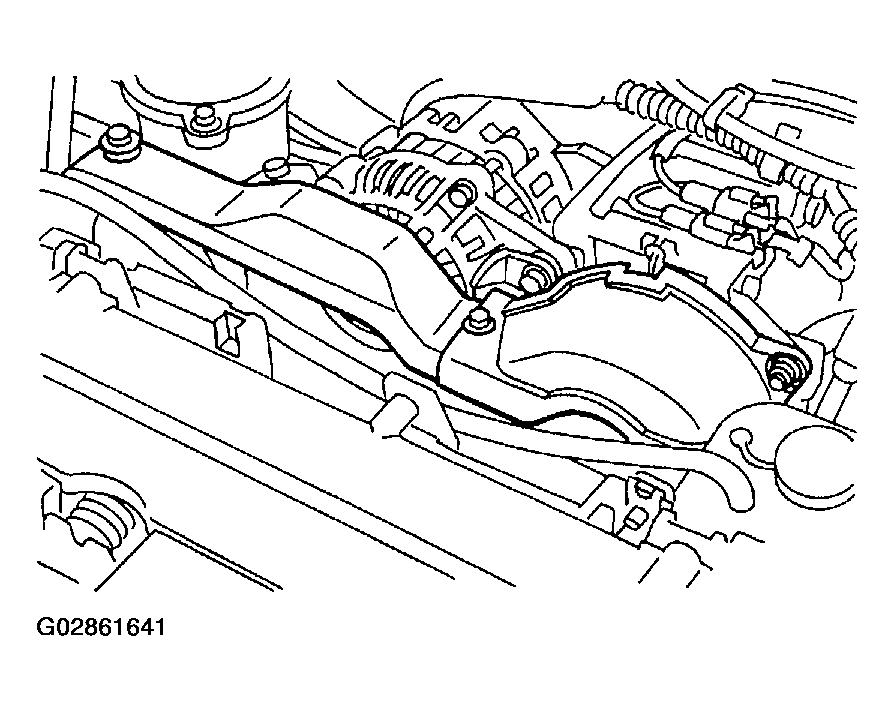

Fig 10: Installing V-Belt Covers
Courtesy of SUBARU OF AMERICA, INC.

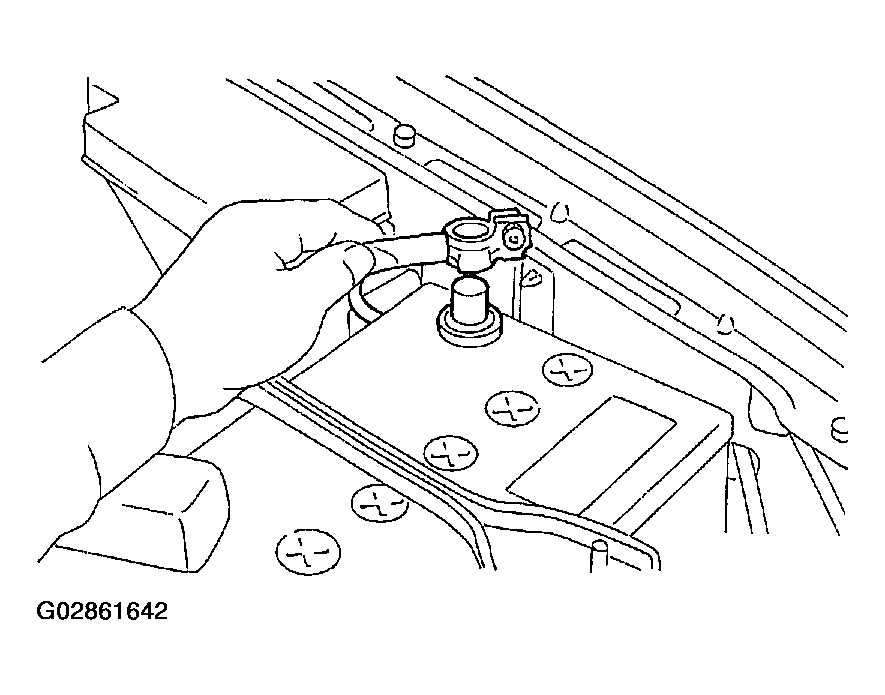

Connect battery ground cable.

Fig 11: Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Fill coolant. Refer to FILLING OF ENGINE COOLANT .
Check ATF level. Refer to AUTOMATIC TRANSMISSION FLUID .
