Cooling Fan: Cooling: Radiator: Removal

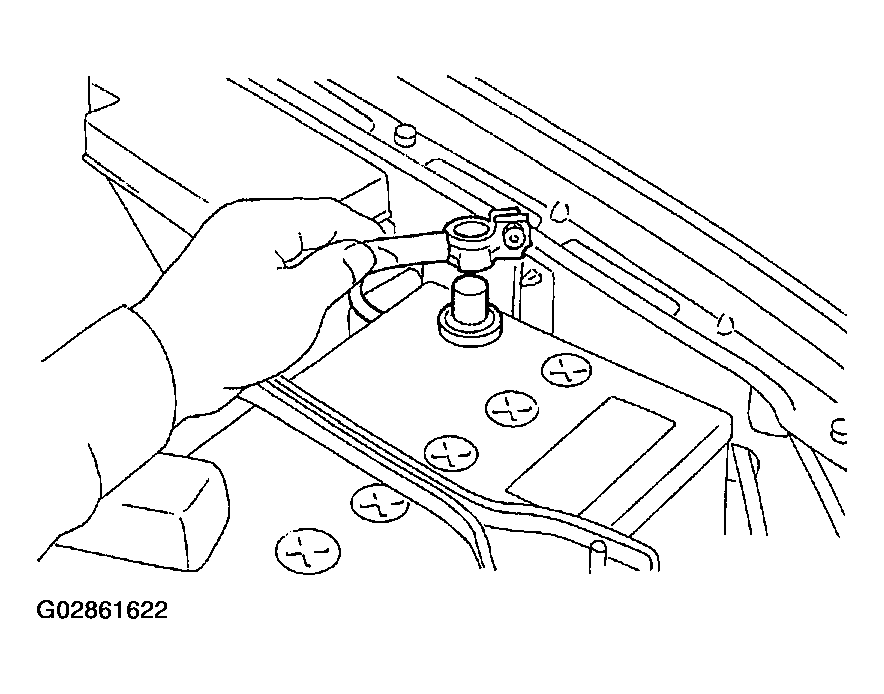

Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Drain engine coolant completely. Refer to DRAINING OF ENGINE COOLANT .

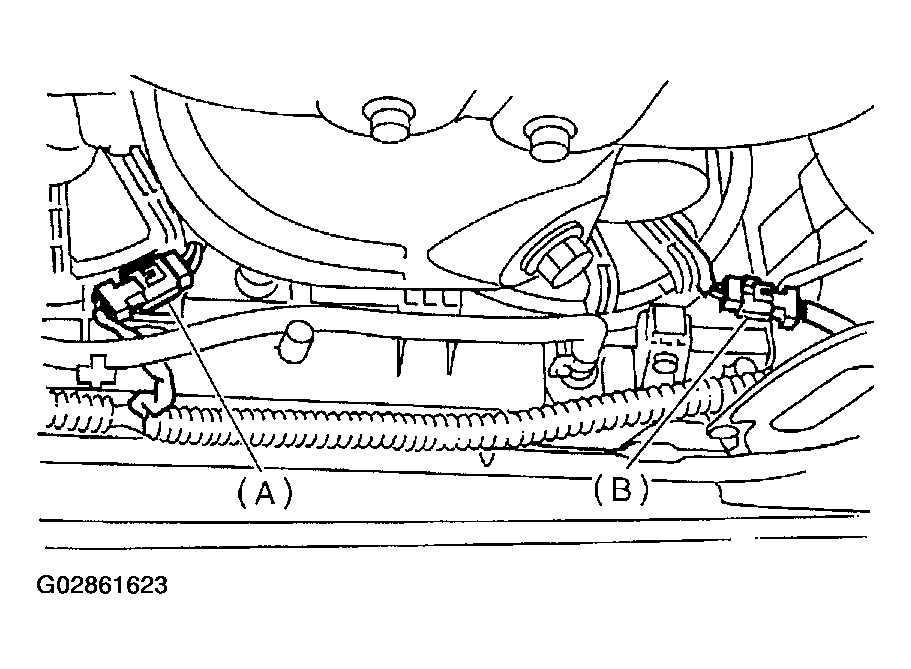

Disconnect connectors of radiator main fan (A) and sub fan (B) motor.

Fig 2: Disconnecting Connectors Of Radiator Main Fan And Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.

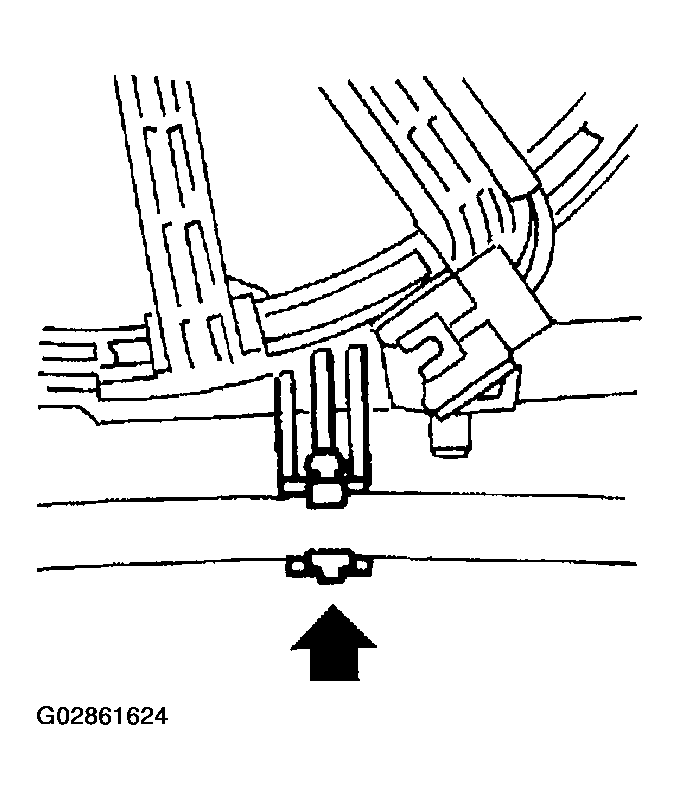

Detach ATF cooler hose attached to a clip under the radiator main fan shroud. (AT vehicles only)

Fig 3: Detaching ATF Cooler Hose
Courtesy of SUBARU OF AMERICA, INC.

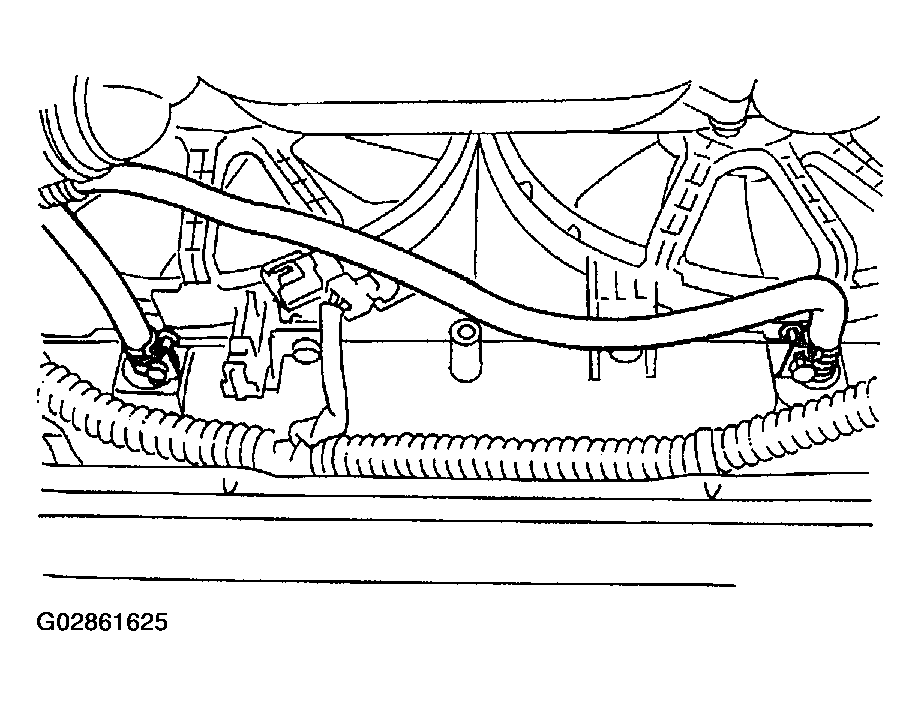

Disconnect ATF cooler hoses from radiator. (AT vehicles only)

Fig 4: Disconnecting ATF Cooler Hoses From Radiator
Courtesy of SUBARU OF AMERICA, INC.
Disconnect radiator outlet hose from thermostat cover.

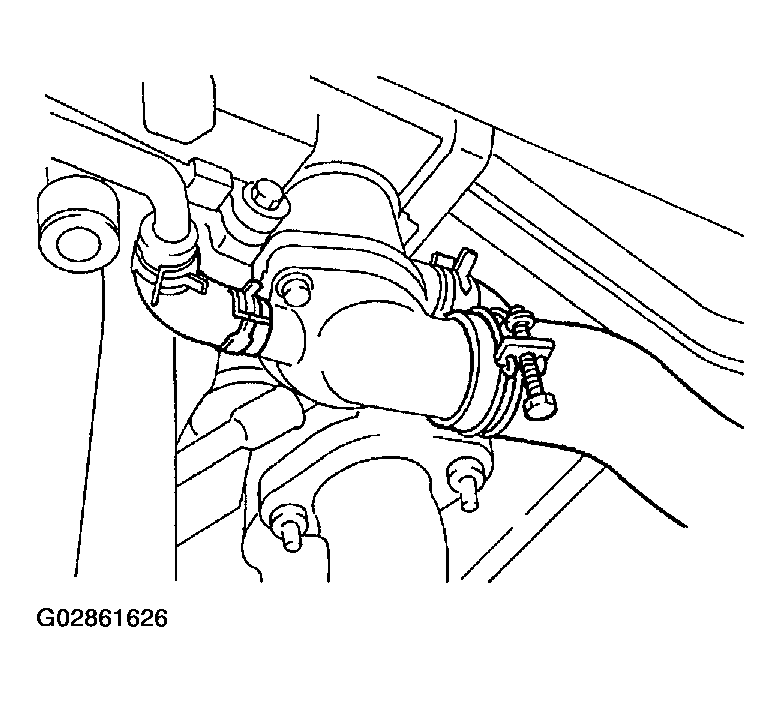

Fig 5: Disconnecting Radiator Outlet Hose From Thermostat Cover
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.

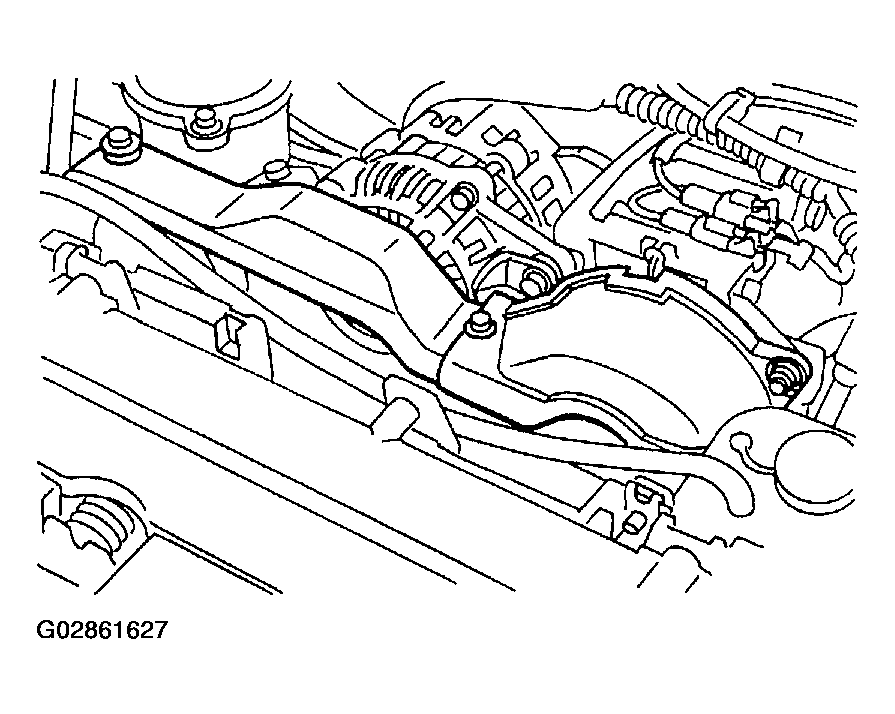

Remove V-belt covers.

Fig 6: Removing V-Belt Covers
Courtesy of SUBARU OF AMERICA, INC.

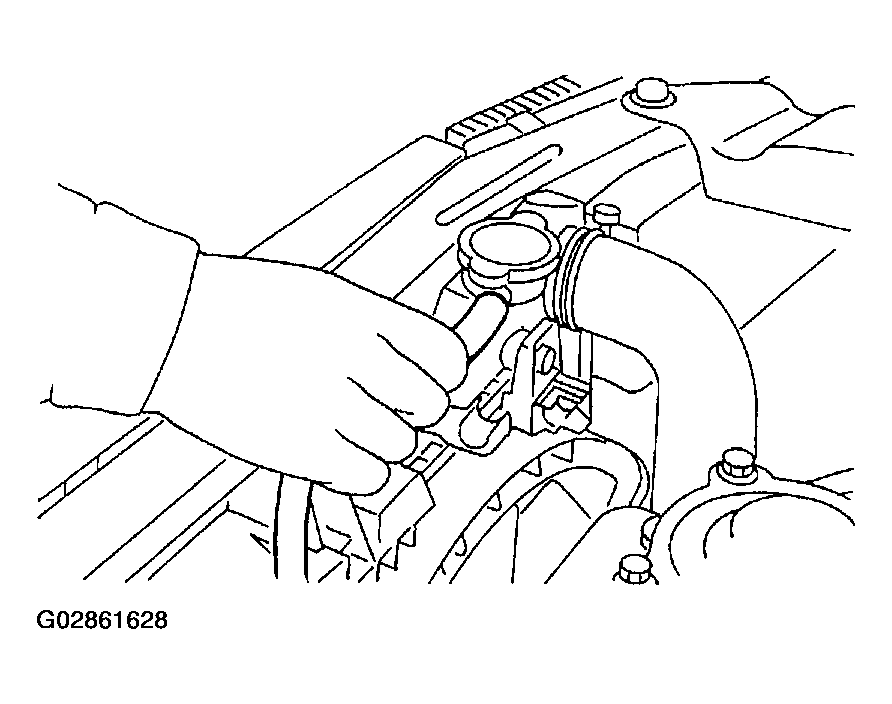

Disconnect over flow hose.

Fig 7: Disconnecting Over Flow Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove reservoir tank.

Fig 8: Removing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.

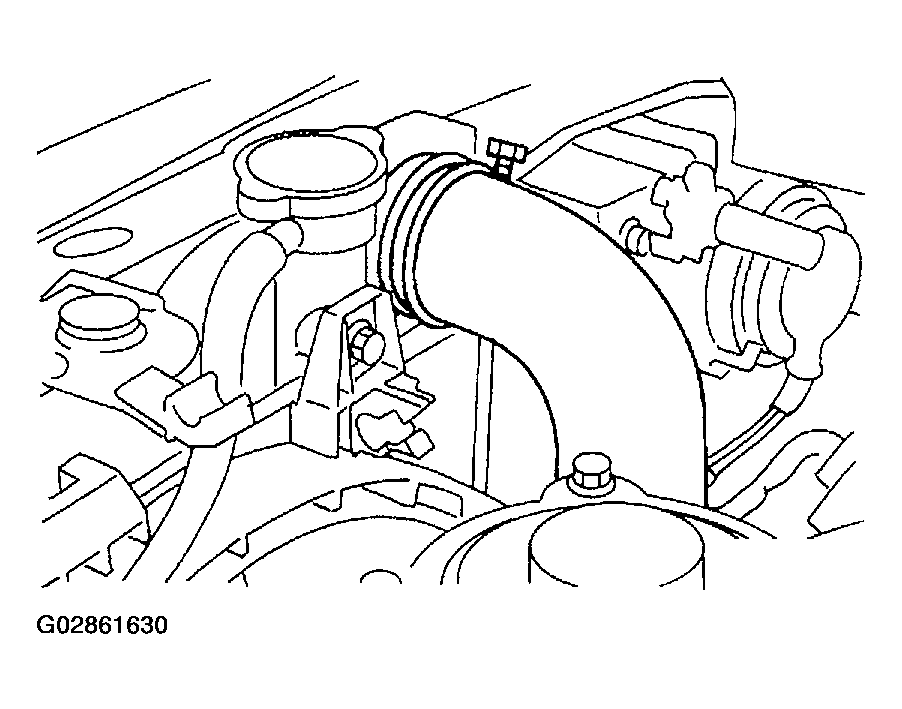

Disconnect radiator inlet hose from radiator.

Fig 9: Disconnecting Radiator Inlet Hose From Radiator
Courtesy of SUBARU OF AMERICA, INC.
Remove radiator upper brackets.

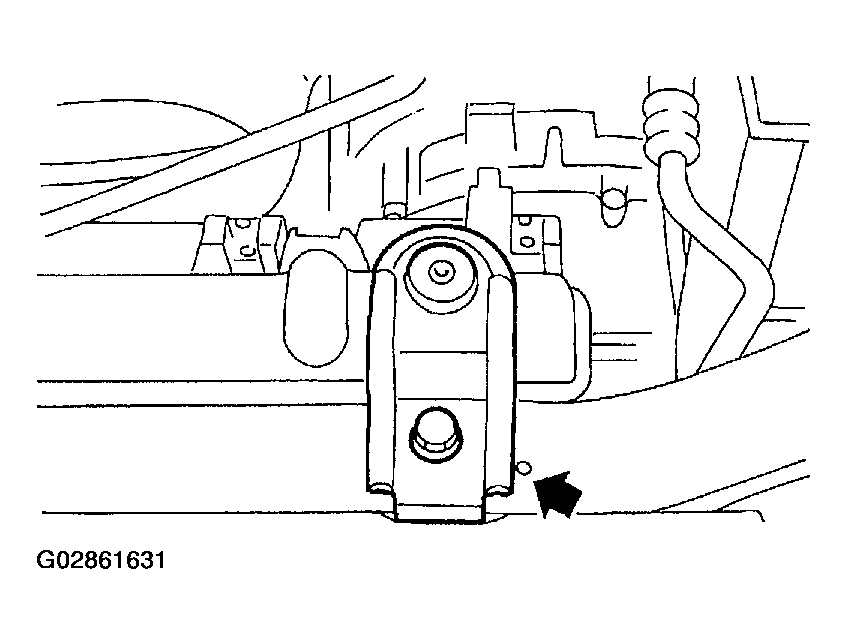

Fig 10: Removing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
While slightly lifting radiator, slide it to left.
Lift radiator up and away from vehicle.
