RH Side

Install in the reverse order of removal.

Fig 1: Installing Fuel Injector

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:  5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

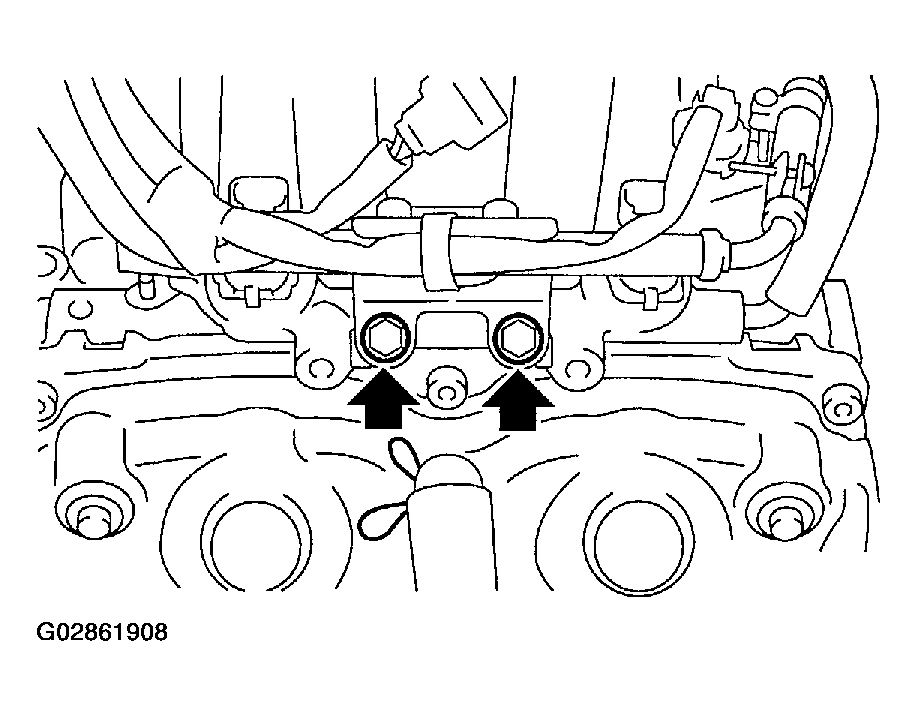

Fig 2: Tightening Bolts (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:  19 N-m (1.9 kgf-m, 13.7 ft-lb)

Fig 3: Tightening Bolts (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
