Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems) >> Atmospheric Pressure Sensor >> Removal

Atmospheric Pressure Sensor : Removal

  1. Disconnect battery ground cable.

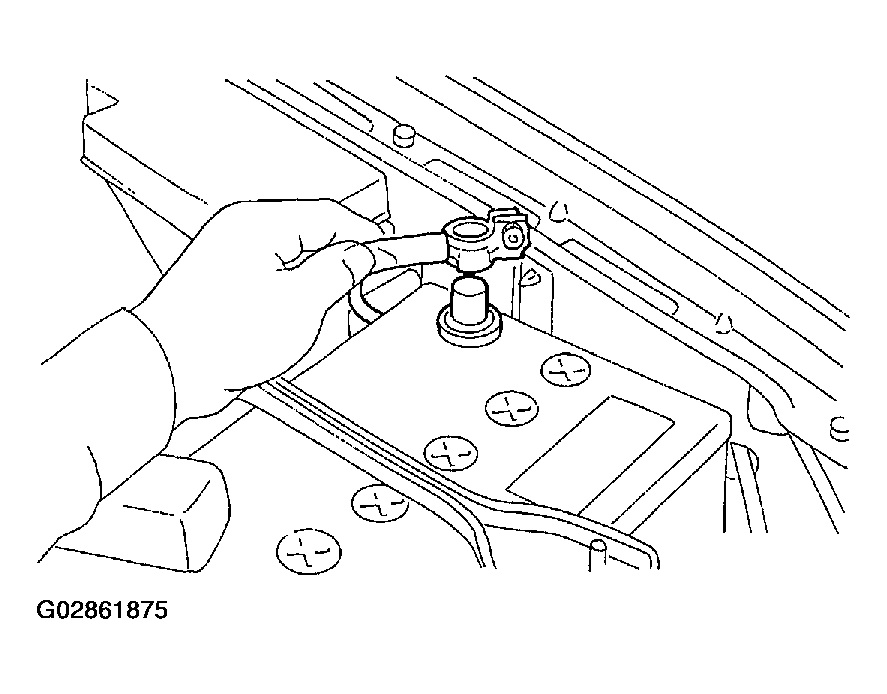

    Fig 1: Disconnecting Battery Ground Cable
    G02861875Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from atmospheric pressure sensor.
  3. Remove atmospheric pressure sensor from bracket.

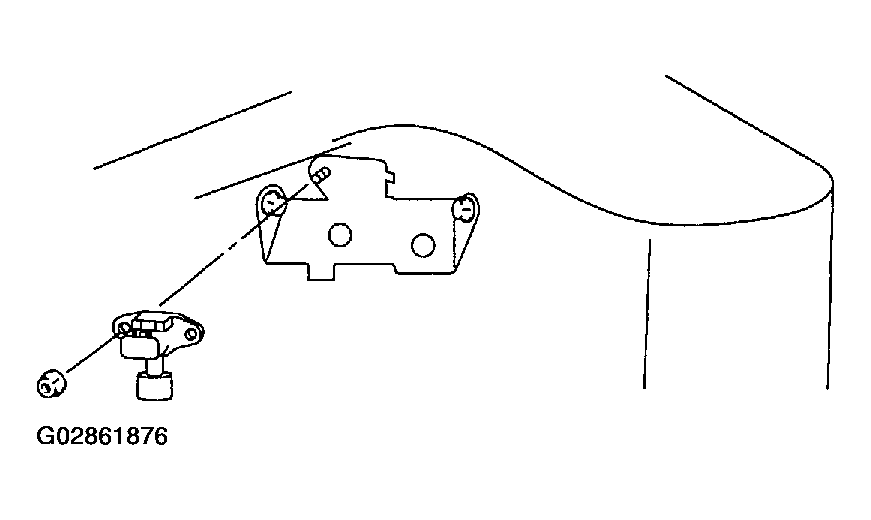

    Fig 2: Removing Atmospheric Pressure Sensor
    G02861876Courtesy of SUBARU OF AMERICA, INC.
