Crankshaft Position Sensor: Removal

  1. Disconnect battery ground cable.

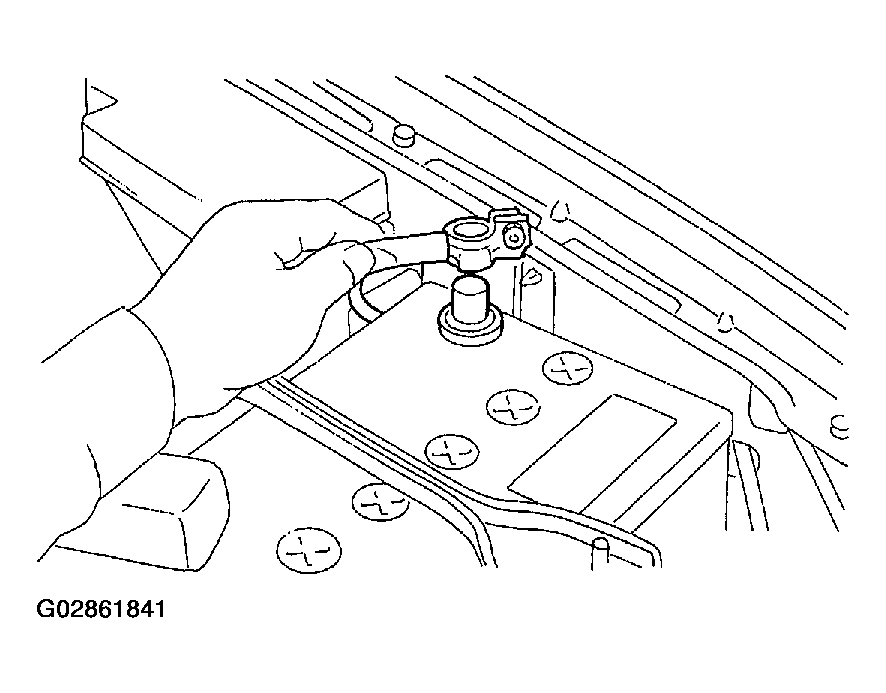

    Fig 1: Disconnecting Battery Ground Cable
    G02861841Courtesy of SUBARU OF AMERICA, INC.
  2. Remove bolt which installs crankshaft position sensor to cylinder block.

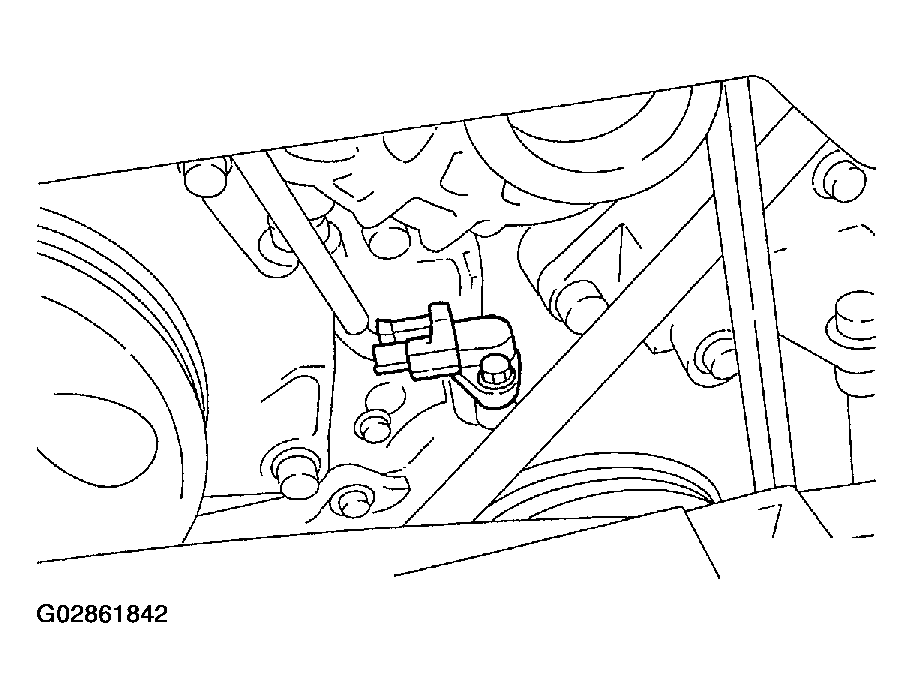

    Fig 2: Removing Crankshaft Position Sensor Bolt
    G02861842Courtesy of SUBARU OF AMERICA, INC.
  3. Remove crankshaft position sensor, and disconnect connector from it.

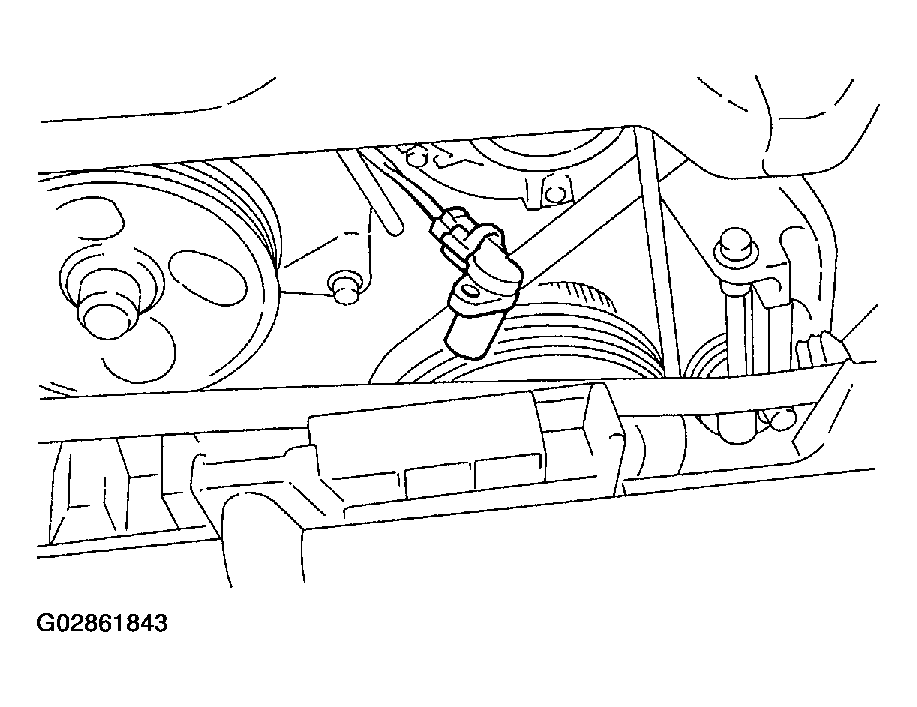

    Fig 3: Removing Crankshaft Position Sensor
    G02861843Courtesy of SUBARU OF AMERICA, INC.
