Fuel Pump Relay: Removal

  1. Disconnect battery ground cable.

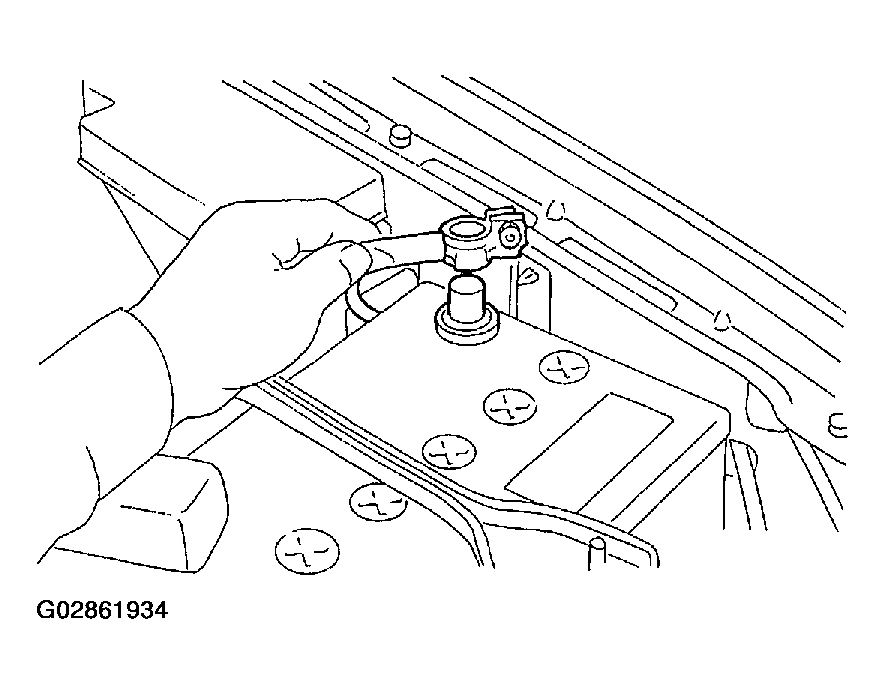

    Fig 1: Disconnecting Battery Ground Cable
    G02861934Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from fuel pump relay.

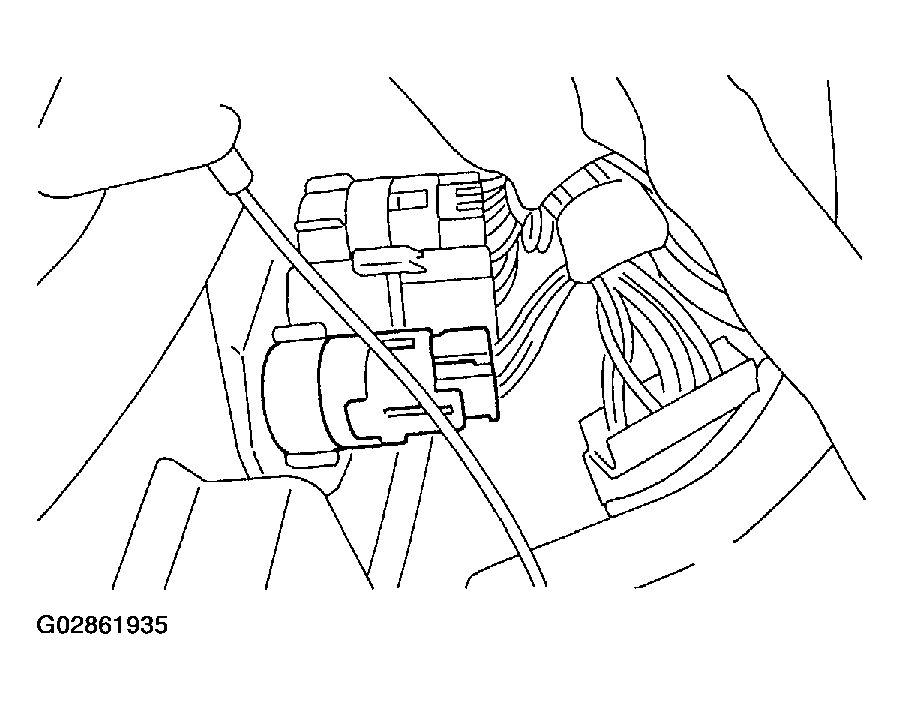

    Fig 2: Disconnecting Connector From Fuel Pump Relay
    G02861935Courtesy of SUBARU OF AMERICA, INC.
  3. Remove fuel pump relay from mounting bracket.

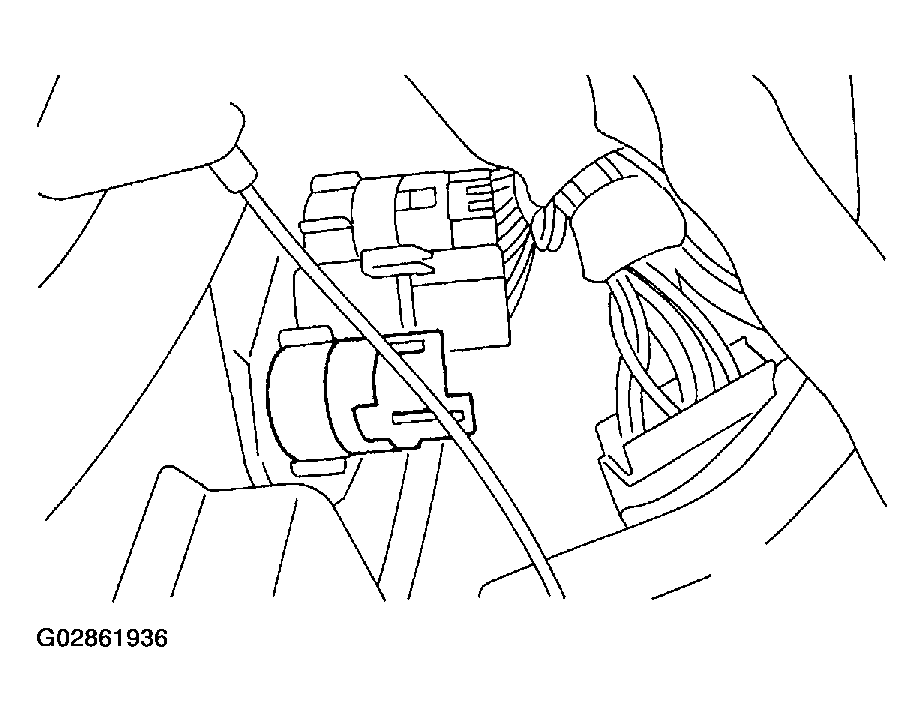

    Fig 3: Removing Fuel Pump Relay From Mounting Bracket
    G02861936Courtesy of SUBARU OF AMERICA, INC.
