Idle Air Control Solenoid Valve: Installation

Install in the reverse order of removal.

Tightening torque:  1.6 N.m (0.16 kgf-m, 1.2 ft-lb)

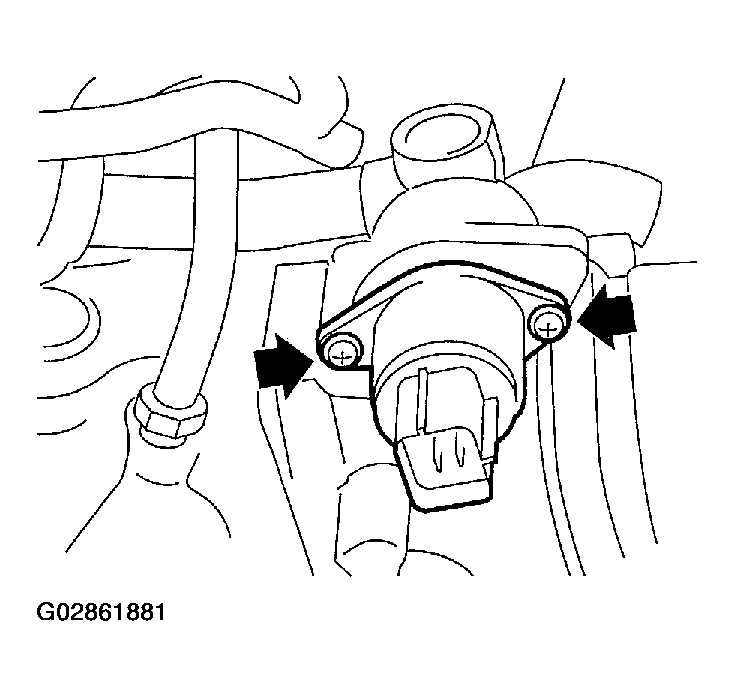

Fig 1: Installing Idle Air Control Solenoid Valve
G02861881Courtesy of SUBARU OF AMERICA, INC.
