Section 2 (Clutch System): Flywheel: Installation

WARNING: This page is about a different variant/trim than selected.

Install flywheel and ST.
ST 498497100: CRANKSHAFT STOPPER

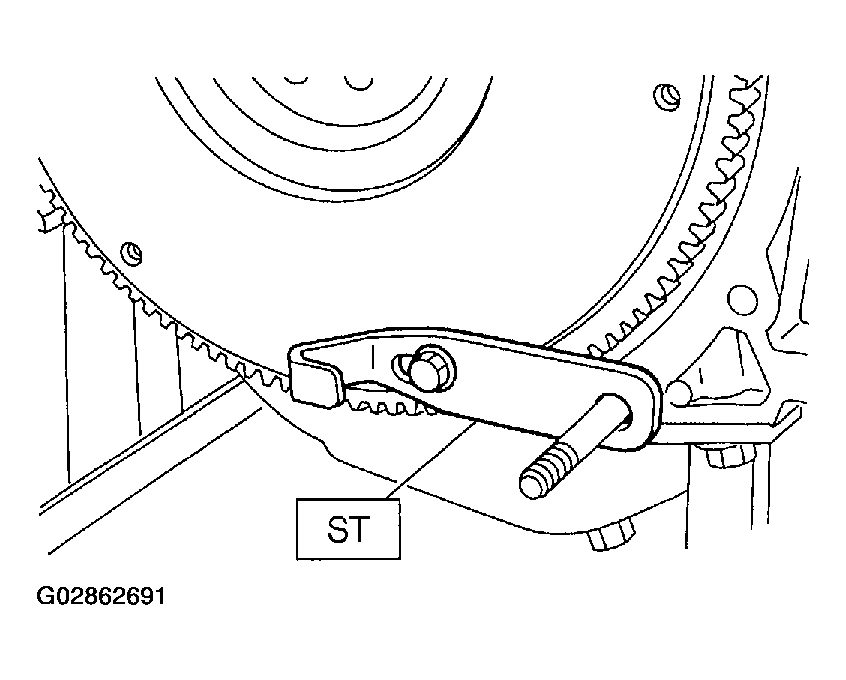

Fig 1: Installing Flywheel And ST
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.

Tightening torque: 72 N.m (7.3 kgf-m, 52.8 ft-lb)

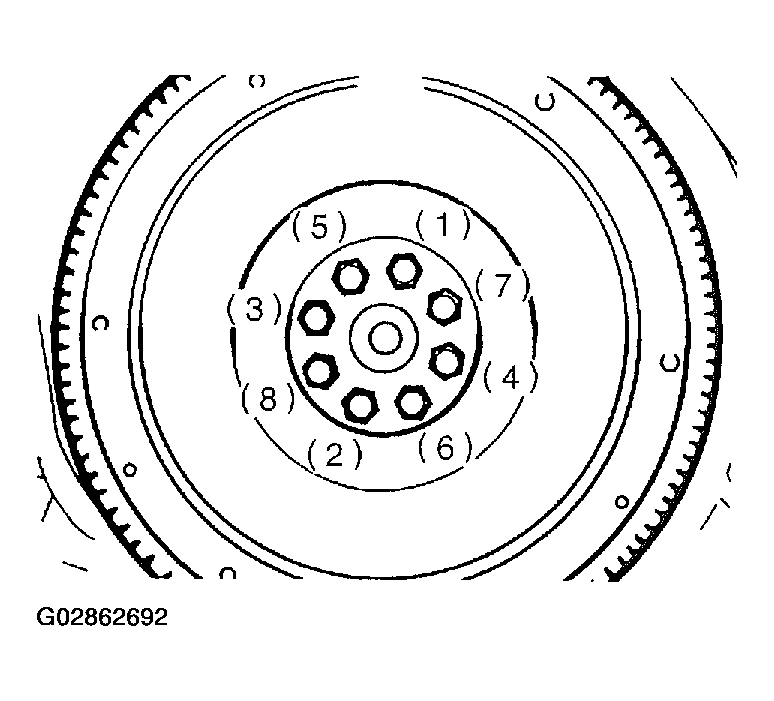

Fig 2: Tightening Flywheel Attaching Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install clutch disc and cover. Refer to INSTALLATION under CLUTCH DISC AND COVER .
Install transmission assembly. Refer to INSTALLATION under MANUAL TRANSMISSION ASSEMBLY .
