Removal & Installation: Strut: Installation

  1. Install strut mount at upper side of strut to body and tighten with nuts. See TORQUE SPECIFICATIONS .
  2. Install ABS sensor harness to strut.
    CAUTION:
    • While holding head of adjusting bolt, tighten self-locking nut.
    • Be sure to use new self-locking nut.
  3. Position aligning mark on camber adjustment bolt with aligning mark on lower side of strut.
  4. Install brake hose at lower side of strut with clamp.

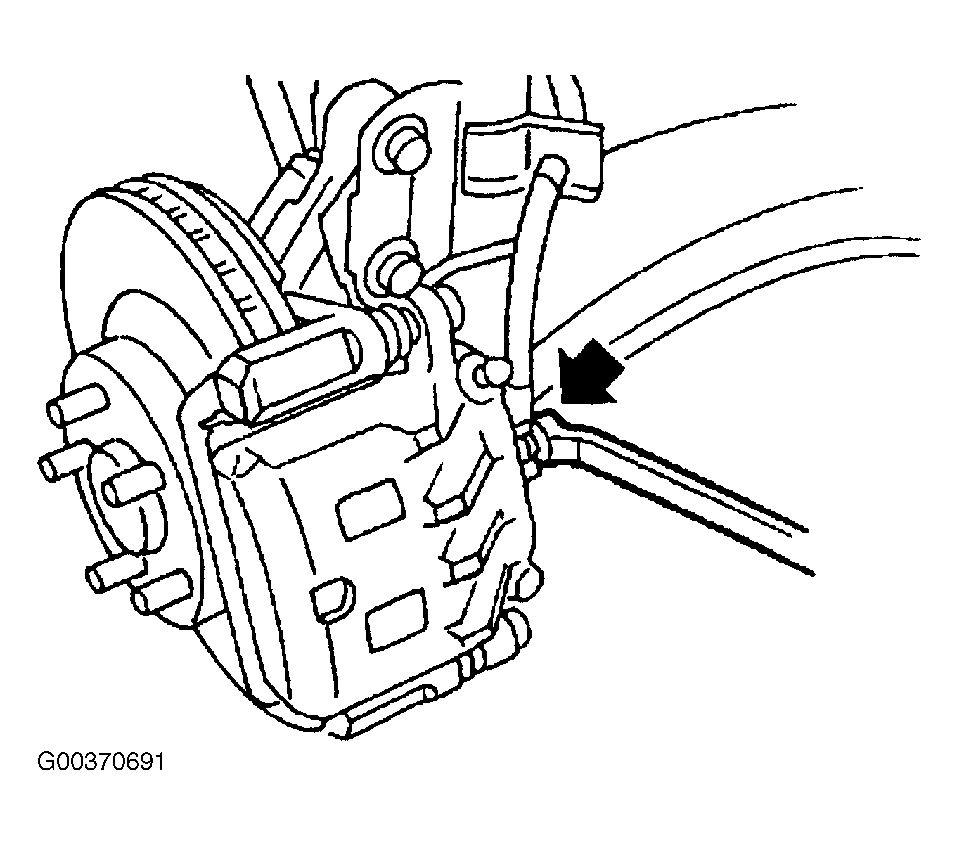

  5. Install union bolts which secure brake caliper to brake hose. See Figure.
