Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> A/T Control Systems >> Electrical Component >> Location

Electrical Component: Location

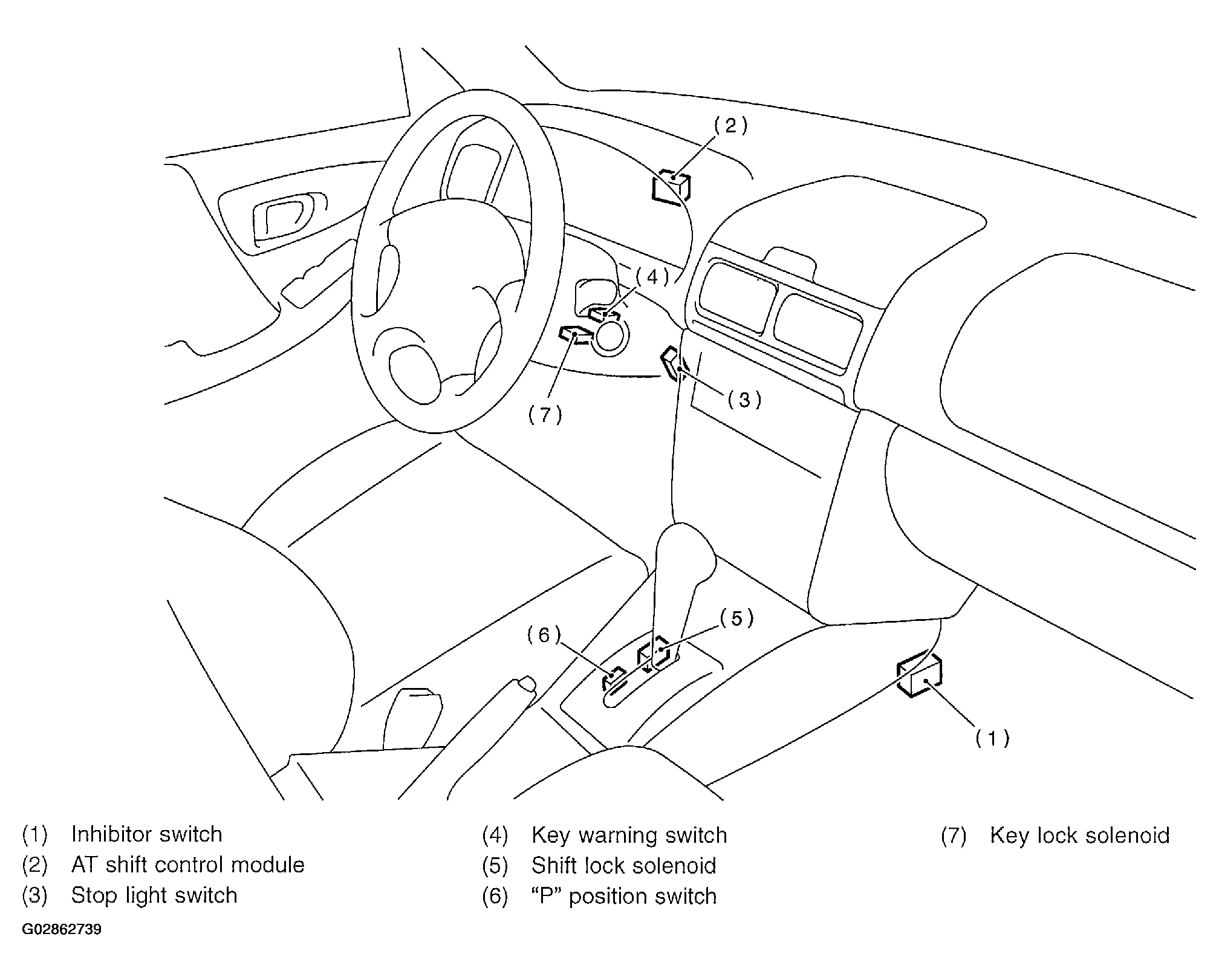

Fig 1: Identifying Control Systems Electrical Components Location (1 Of 2)
G02862739Courtesy of SUBARU OF AMERICA, INC.

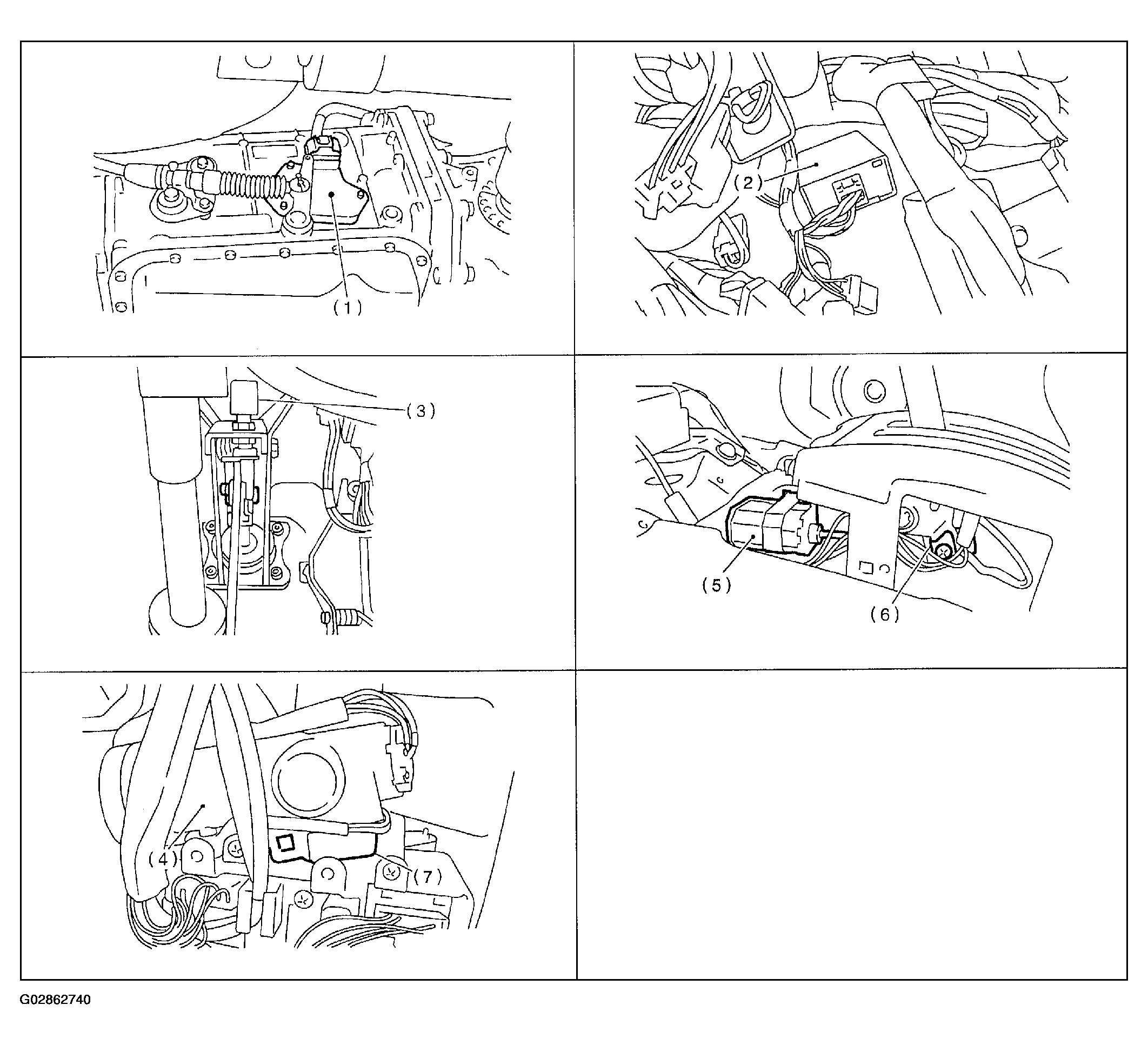

Fig 2: Identifying Control Systems Electrical Components Location (2 Of 2)
G02862740Courtesy of SUBARU OF AMERICA, INC.
