Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (Diagnostics) >> Basic Diagnostic Procedure >> Procedure

Basic Diagnostic Procedure: Procedure

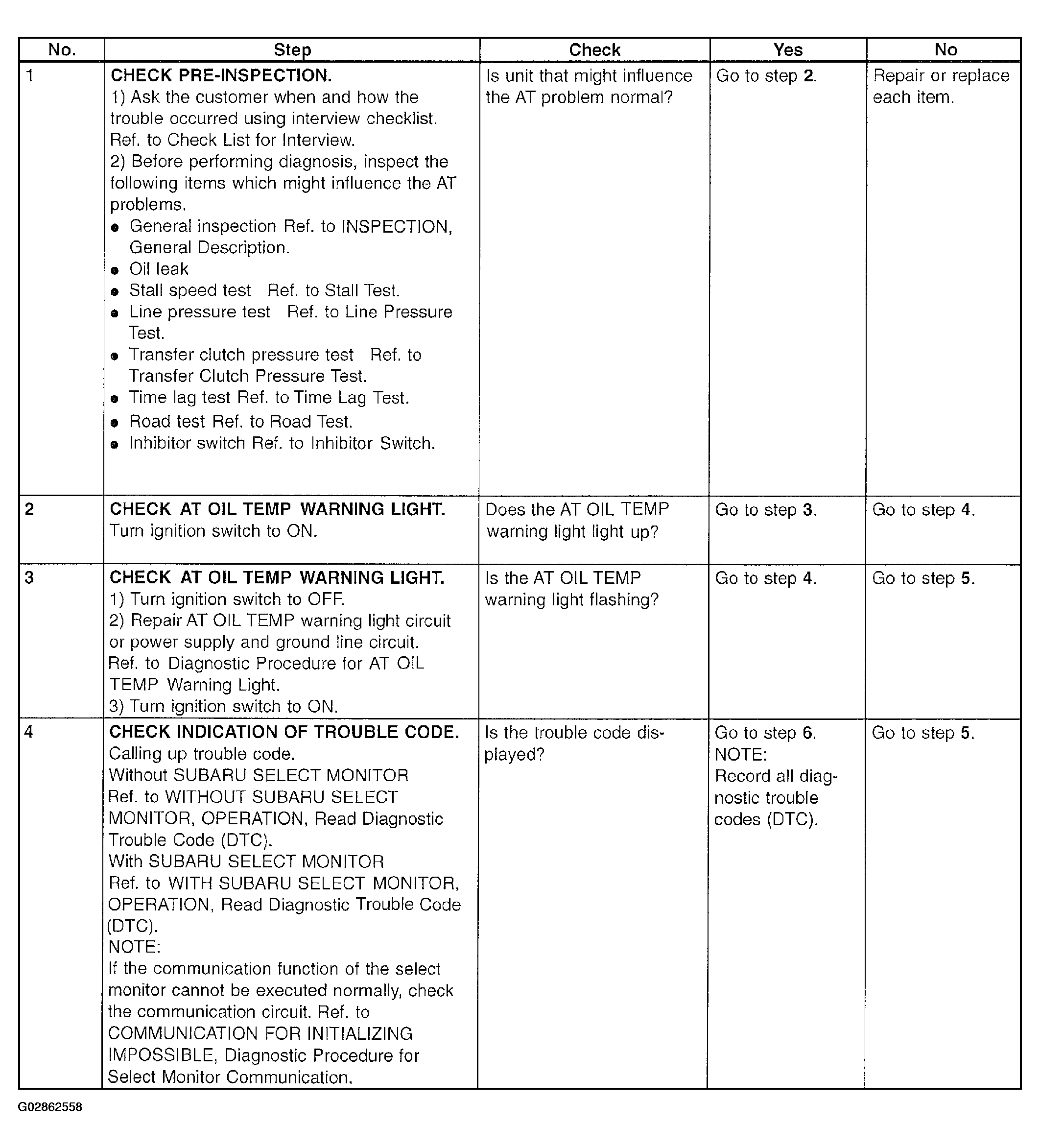

Fig 1: Automatic Transmission Basic Diagnostics Procedure Chart (Steps 1-4)
G02862558Courtesy of SUBARU OF AMERICA, INC.

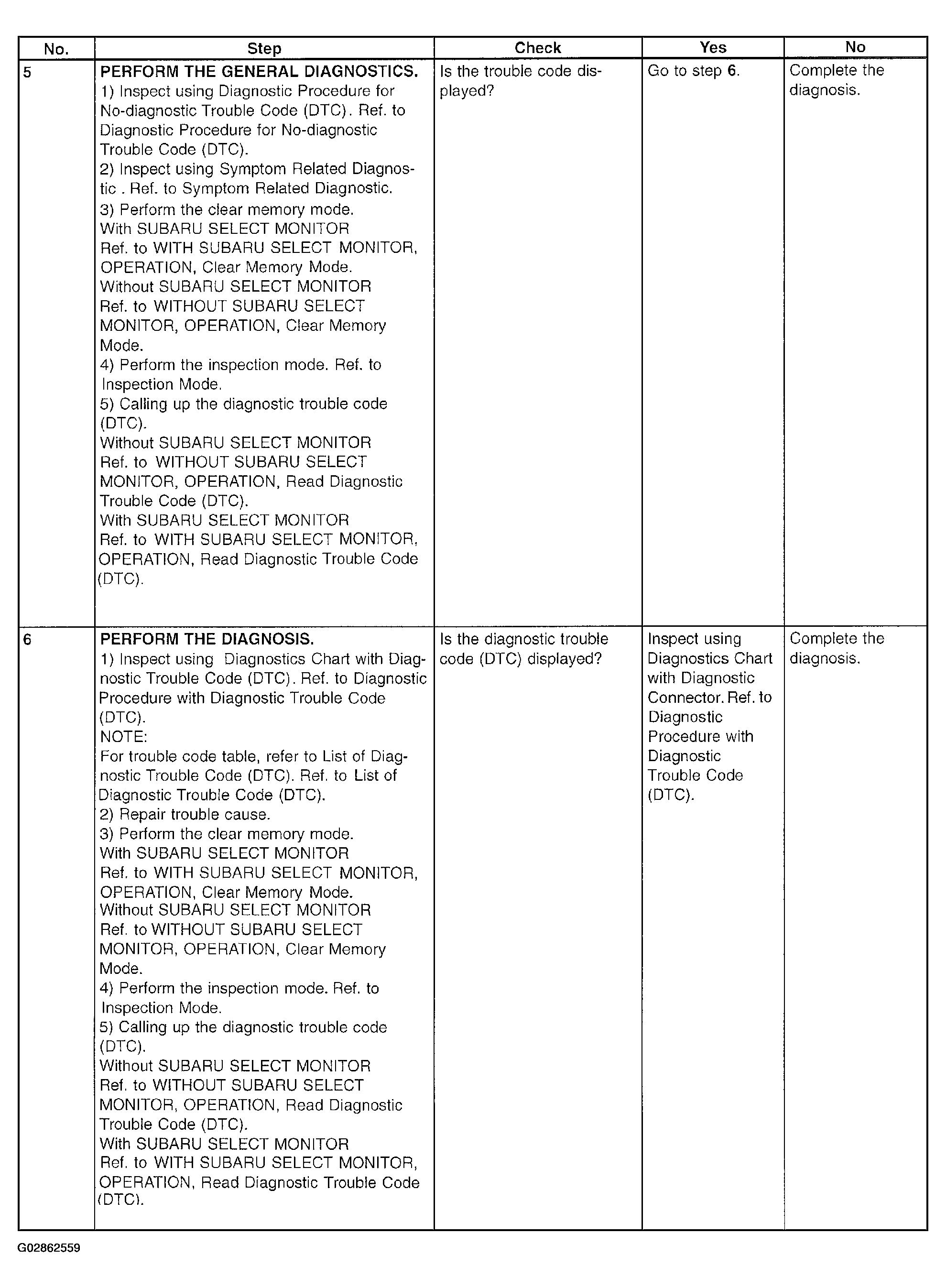

Fig 2: Automatic Transmission Basic Diagnostics Procedure Chart (Steps 5-6)
G02862559Courtesy of SUBARU OF AMERICA, INC.
