Electrical Components Location: Location: Sensor

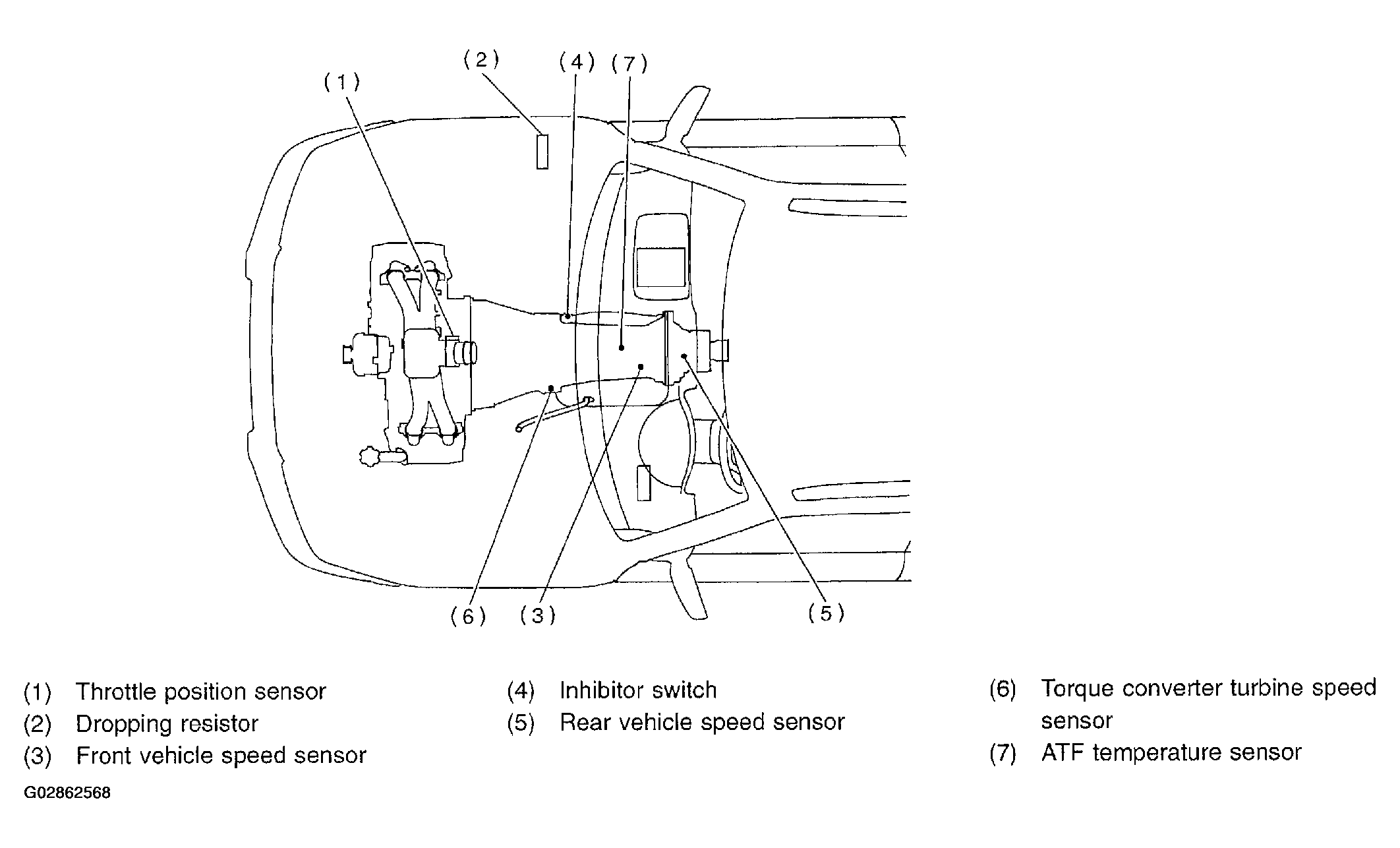

Fig 1: Identifying Sensor And Dropping Resistor Locations (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

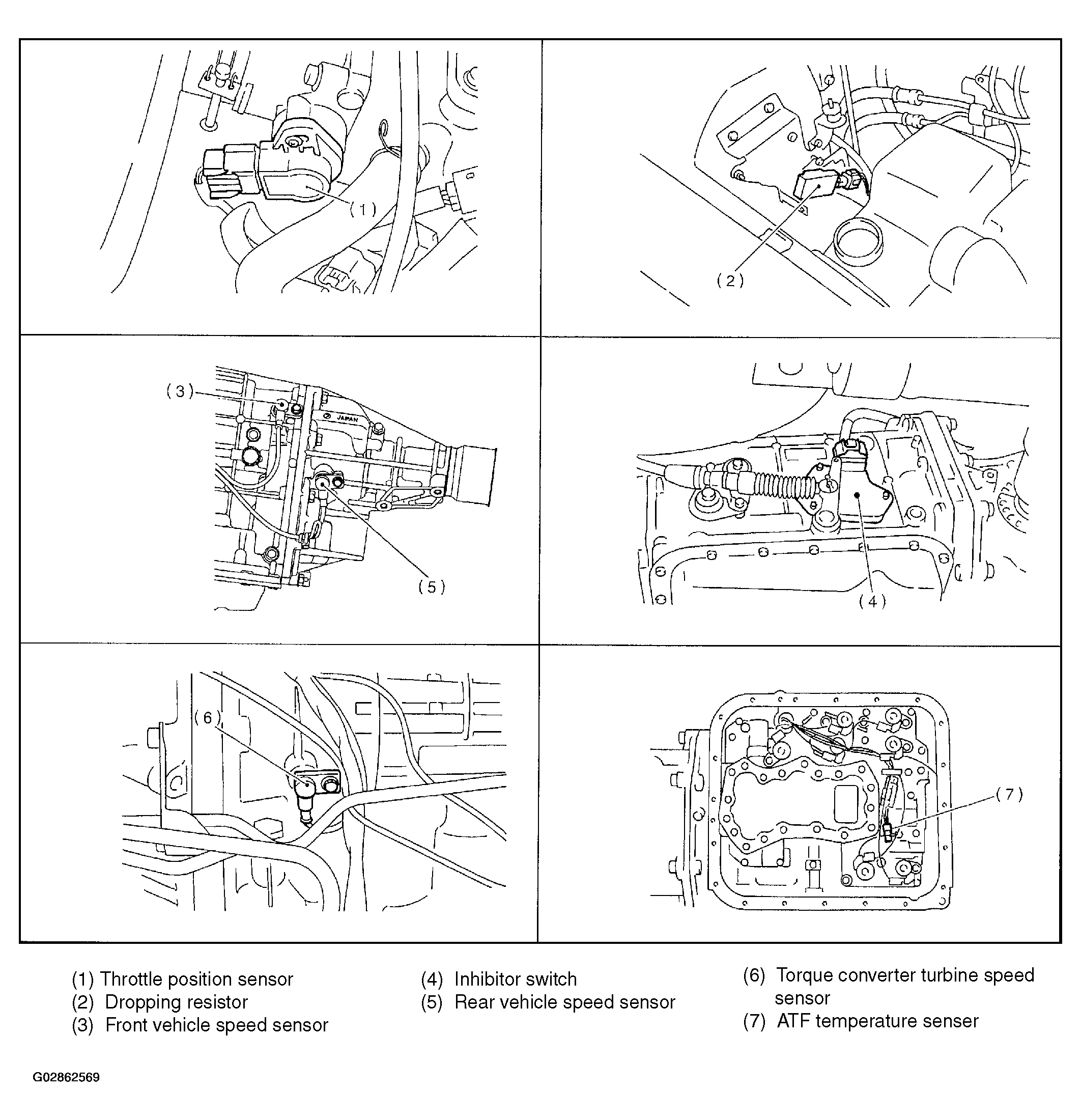

Fig 2: Identifying Sensor And Dropping Resistor Locations (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
