Read Current Data

  1. On the < Main Menu > display screen, select the {Each System Check} and press the [YES] key.
  2. On the < System Selection Menu > display screen, select the {Transmission Control System} and press the [YES] key.
  3. Press the [YES] key after displayed the information of transmission type.
  4. On the < Transmission Diagnosis > display screen, select the {Current Data Display & Save} and press the [YES] key.
  5. On the < Data Display Menu > display screen, select the {Data Display} and press the [YES] key.
  6. Using the scroll key, move the display screen up or down until the desired data is shown.
    • A list of the support data is shown in the following table.

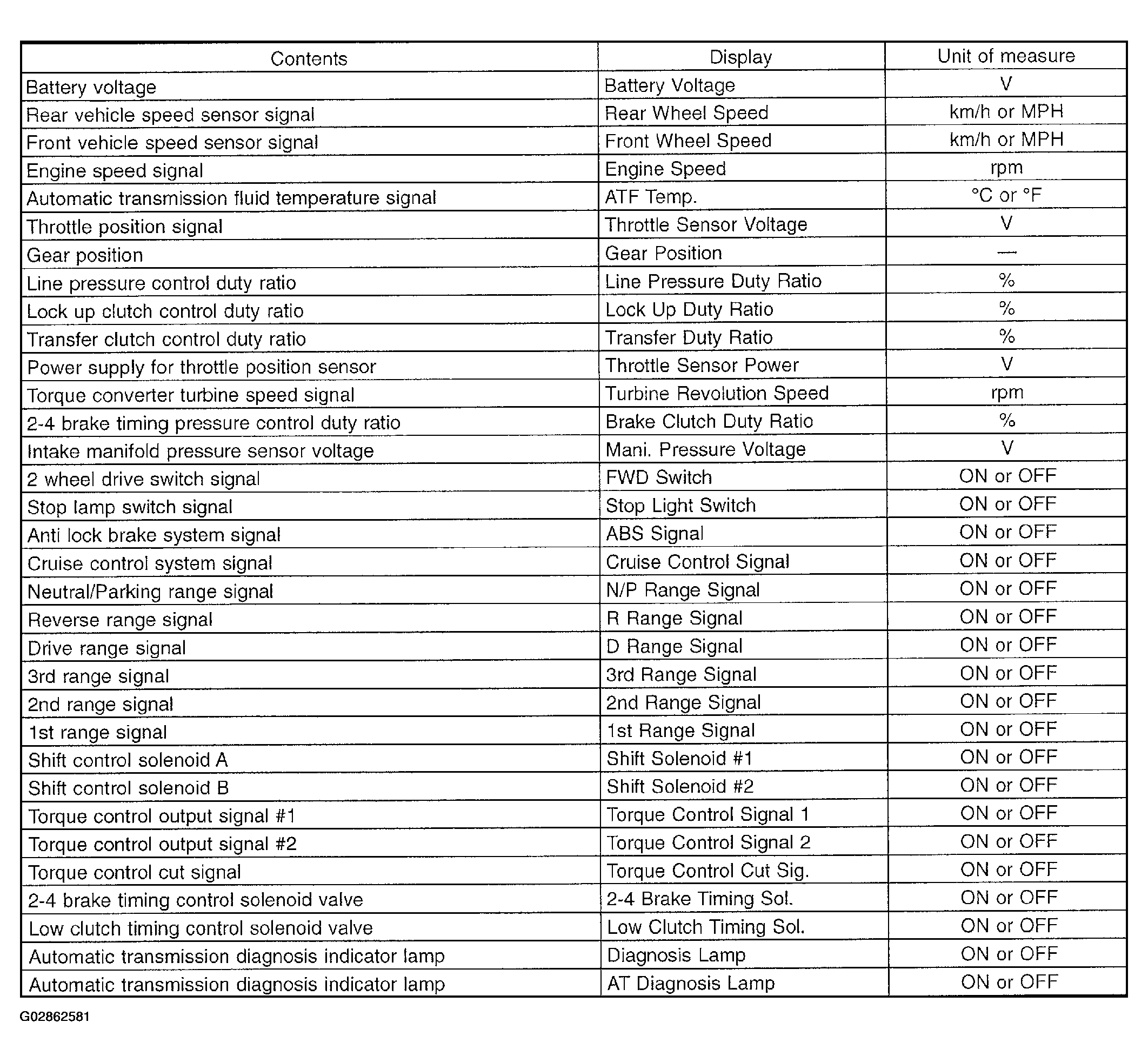

    Fig 1: Subaru Select Monitor Support Data List Table
    G02862581Courtesy of SUBARU OF AMERICA, INC.
NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
