Transmission Mounting: General

The transmission mounting consists of a pitching stopper, cushion rubber, and a cross member. In addition to support the transmission, these components absorb noise and vibration caused by the transmission.

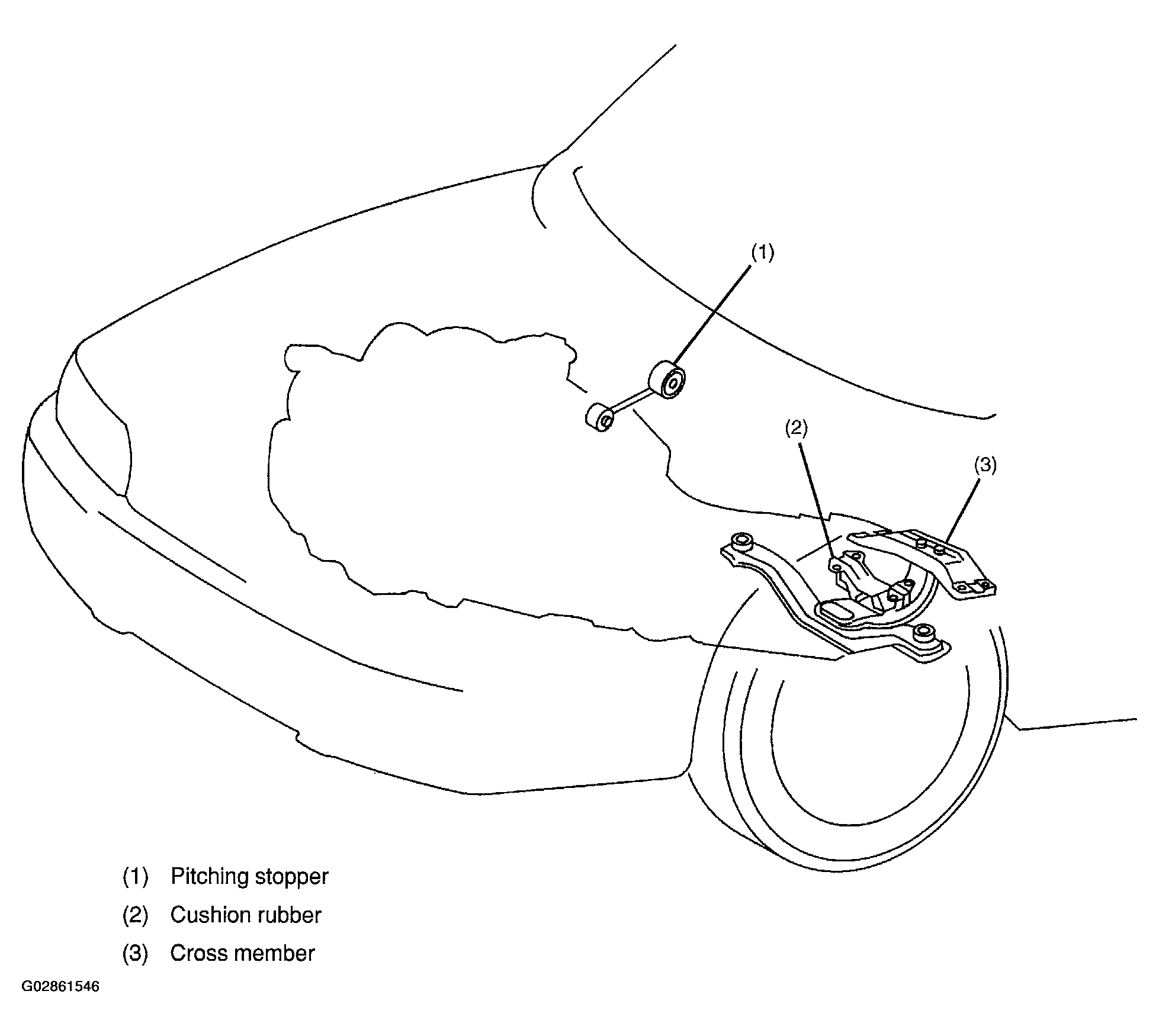

Fig 1: Identifying Transmission Mountings
G02861546Courtesy of SUBARU OF AMERICA, INC.
