Control Valve Body: Installation

Set the range select lever in "N" position.
Install the control valve and ground connectors.
Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

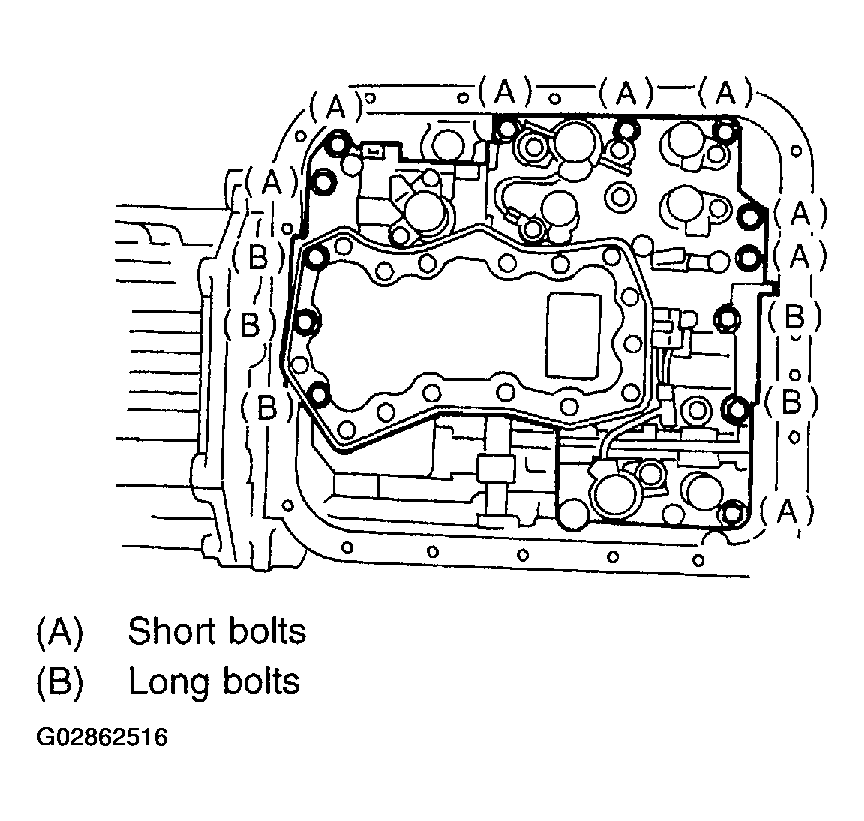

Fig 1: Installing Control Valve And Ground Connectors
Courtesy of SUBARU OF AMERICA, INC.
Connect all connector.

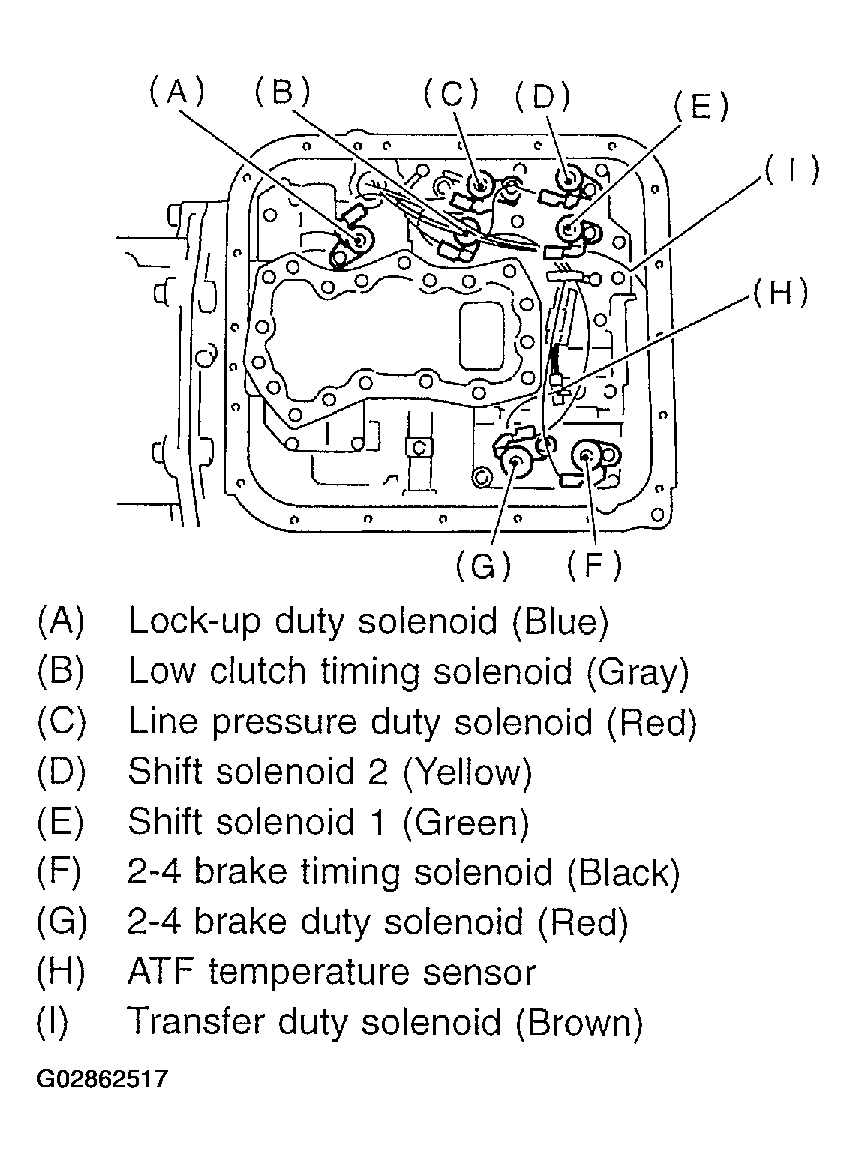

Fig 2: Connecting Duty Solenoids And ATF Temperature Sensor Connectors
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at the specified position.

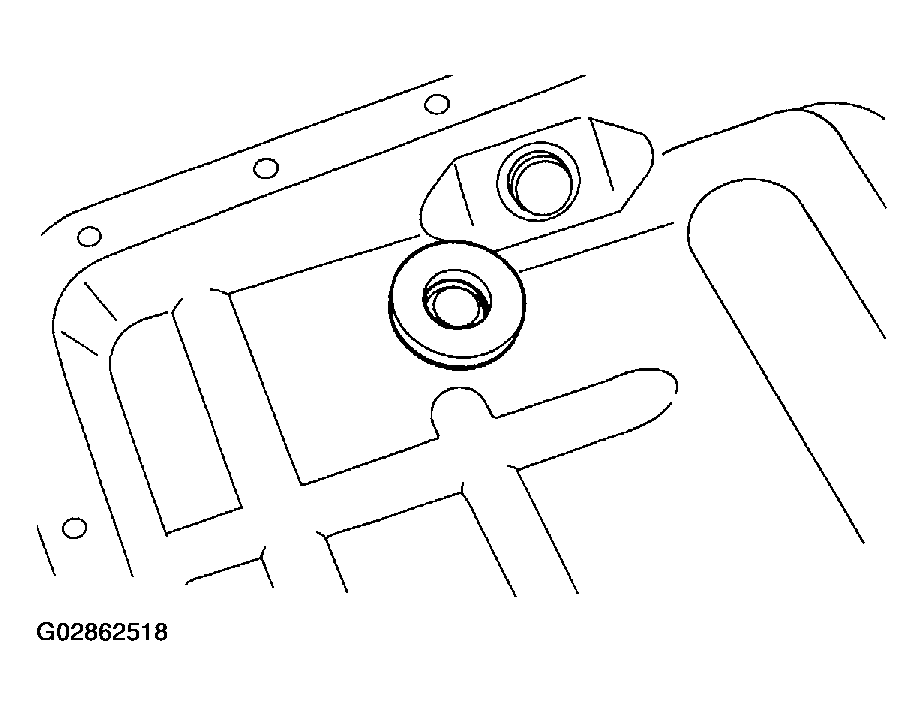

Fig 3: Attaching Magnet
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
Fluid packing: Three Bond 1217B

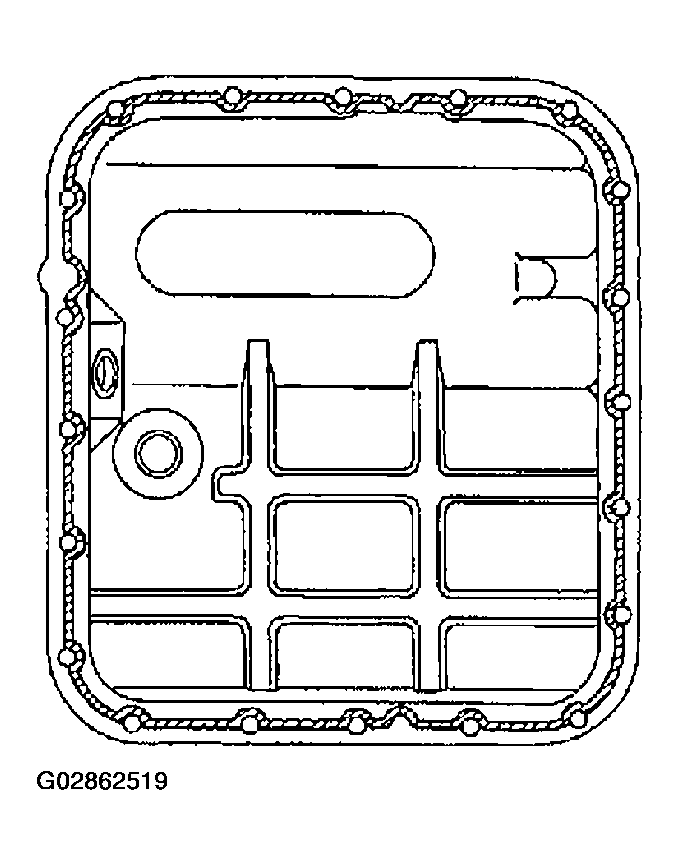

Fig 4: Applying Liquid Gasket To Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan.
Tightening torque: 4.9 N.m (0.5 kgf-m, 3.6 ft-lb)
Pour ATF into the oil charge pipe. Refer to AUTOMATIC TRANSMISSION FLUID .
Check the level of the ATF. refer to AUTOMATIC TRANSMISSION FLUID .
