Dropping Resistor: Installation

Install in the reverse order of removal.
Tightening torque: 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

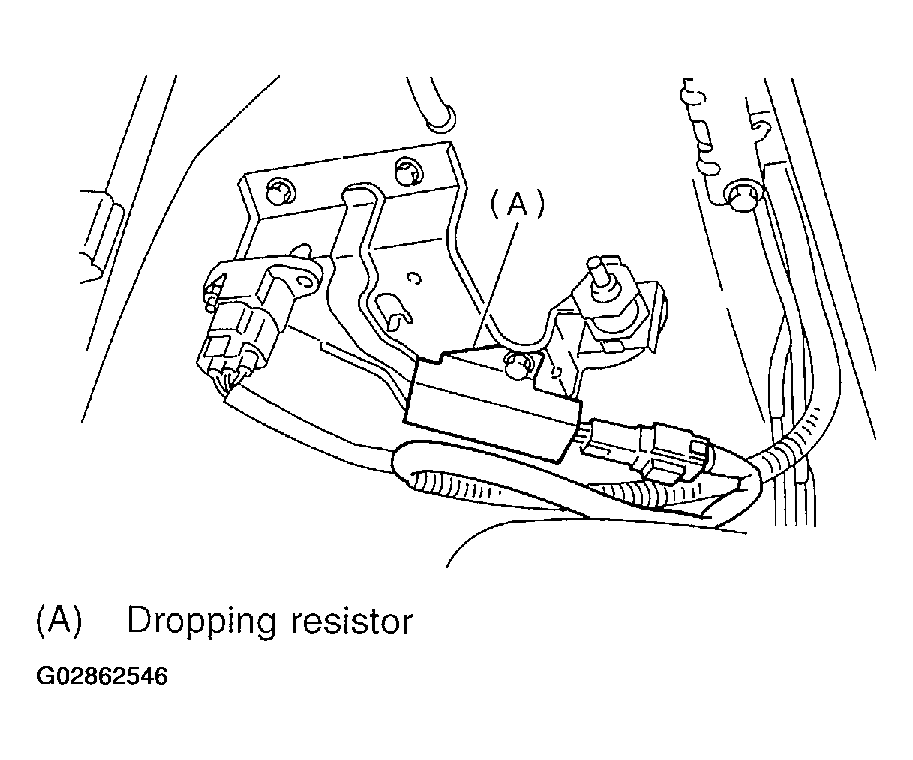

Fig 1: Installing Dropping Resistor
Courtesy of SUBARU OF AMERICA, INC.
